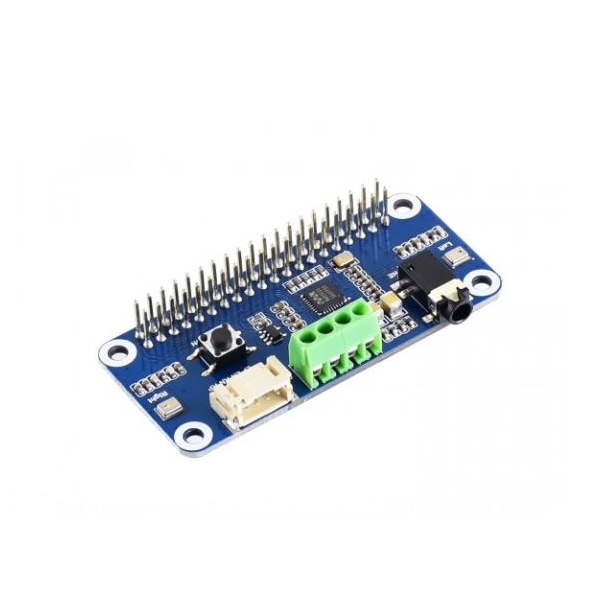

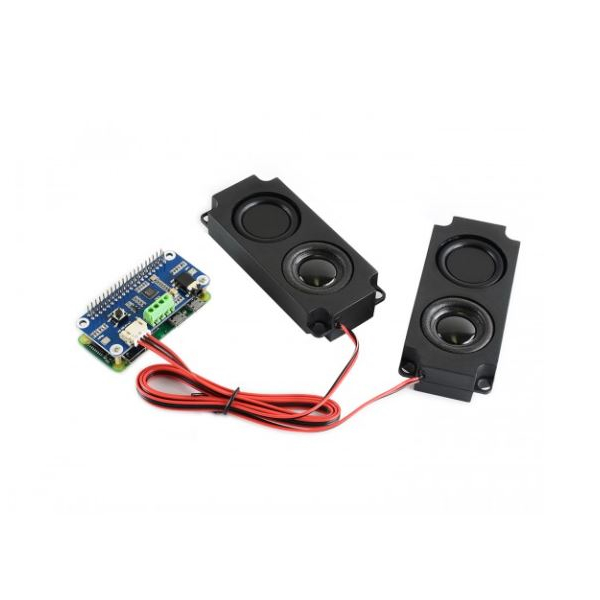

With this audio HAT from Waveshare it is possible to easily connect a speaker or headphones to a Raspberry Pi. In addition, stereo sound can also be recorded with the built-in microphones.

Specifications:

  • Supply voltage: 5V DC
  • Signal voltage: 3.3V
  • Amplifier (CODEC):
    • Chip: WM8960
    • Maximum power per channel: 1W (8Ω)
    • Headphone driver power: 40mW (16Ω at 3.3V)
    • Communication: I2C
    • Audio signal: I2S
    • Speaker connector: JST-PH 4p male or screw terminals

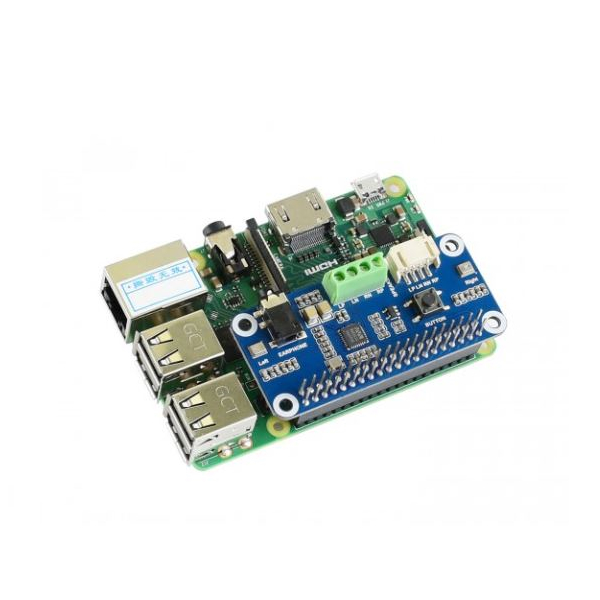

  • HAT for: All Raspberry Pi SBC models

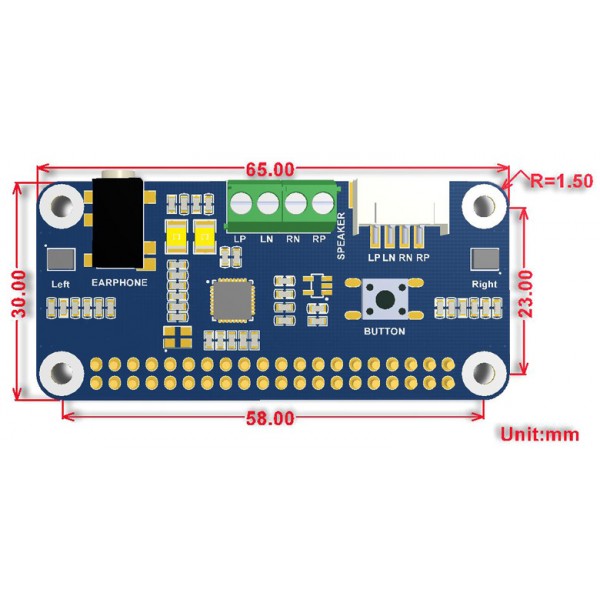

  • Dimensions: See images

Package contents:

See the following page for more information: Waveshare WM8960 Audio HAT.

Note: Raspberry Pi is not included.

Please login or register to review

Reviews Over Waveshare WM8960 Audio HAT - including Speaker Set - for Raspberry Pi

This product has 0 review(s) in total.

Tags: Waveshare WM8960 Audio HAT - including Speaker Set - for Raspberry Pi , WS-15668 , Amplifiers

Product FAQ

What power supply do I need?

Use a stable, CE-approved power supply with the correct voltage and sufficient power. It is recommended to use a power supply with a bit more power than the amplifier to provide headroom for current spikes.
