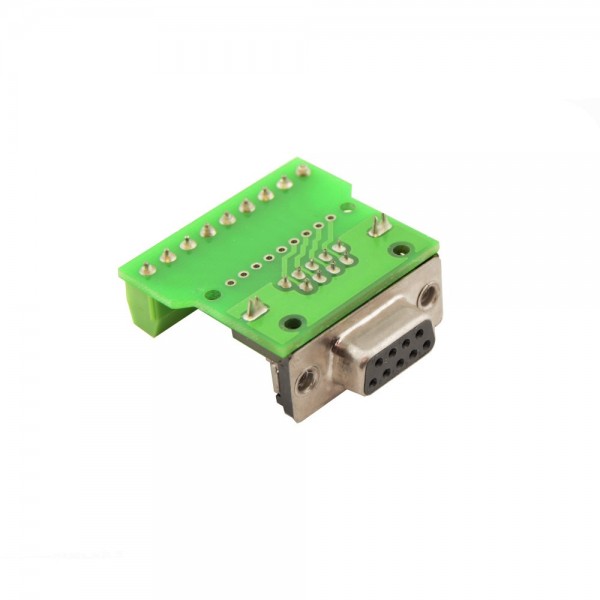

DB9 RS232 Connector Breakout Board Female

DB9 RS232 Connector Breakout Board Female
DB9 RS232 Connector Breakout Board Female
DB9 RS232 Connector Breakout Board Female
DB9 RS232 Connector Breakout Board Female
DB9 RS232 Connector Breakout Board Female
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 001106
€2.00
Ex Tax: €1.65

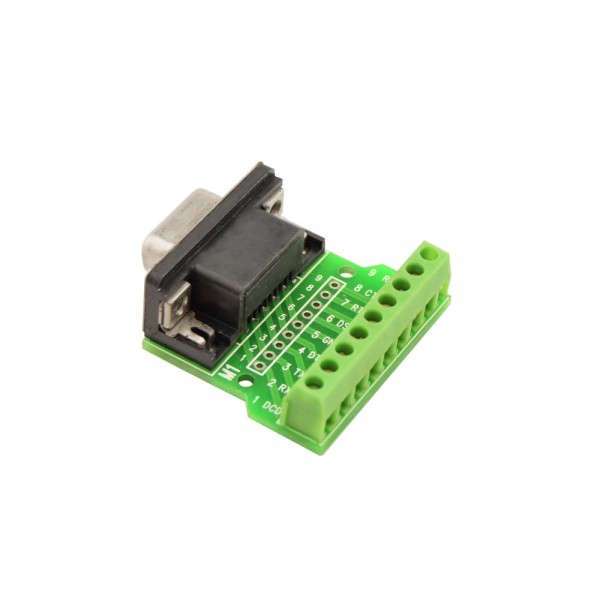

With this breakout board you can easily connect a DB9/RS232 connector with loose wires. The pinout is listed on the product.

Please login or register to review

Reviews Over DB9 RS232 Connector Breakout Board Female

This product has 0 review(s) in total.

Specifications

General
Brand No brand
General physical appearance
Main color Mixed
Weight [g] 14
Dimension X [mm] 36
Dimension Y [mm] 32
Dimension Z [mm] 14
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.0
Form factor Module (general)
Experiment PCB friendly Yes
Connectors
Connector type(s) Screw terminal
Solder pin(s) (THT)
DB9 female
Number of conductors/pins 9
Orientation Straight
Right-angled
Locking mechanism Screw
Clamp
Connector system Wire-to-wire
Package contents
Package contents 1x DB9 RS232 Connector Breakout Board Female
