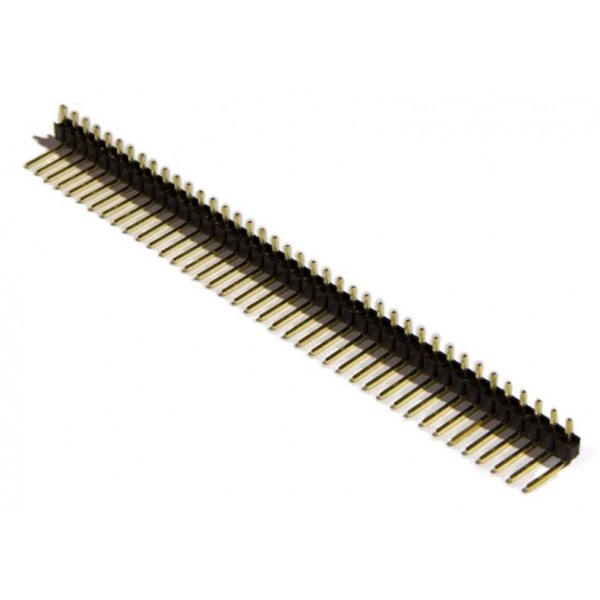

40 Pins Header Male - 90 Degrees - Type A

Availability: Directly available from warehouse in Eindhoven
SKU: 000248

Based on 0 review(s) - Write a review

€0.50

Ex Tax: €0.41

10 or more €0.45

20 or more €0.40

50 or more €0.35

100 or more €0.30

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

Description
Reviews

Standard male pin header which is suitable for female headers or female DuPont cables. The header is breakable which makes it easy to shorten. In this version (type A) the plastic part is on the short side of the pins, in type B the plastic is on the long side.

Please login or register to review

Reviews Over 40 Pins Header Male - 90 Degrees - Type A

Average Rating:

This product has 0 review(s) in total.

Tags: 40 Pins Header Male - 90 Degrees - Type A , 40PMALE90DEG , Male

Specifications

General
Brand	No brand
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	2.5
Dimension Y [mm]	2.5
Dimension Z [mm]	102
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes
Connectors
Connector type(s)	Pin header male (2.54mm) Solder pin(s) (THT)
Number of conductors/pins	40
Number of pin rows	1
Orientation	Right-angled
Locking mechanism	None
Pin shape	Square
Connector/pin width [mm]	0.65
Pin distance [mm]	2.54
Pin length (PCB/short side) [mm]	3
Pin length [mm]	5.5
Package contents
Package contents	1x Male pin header 40p
