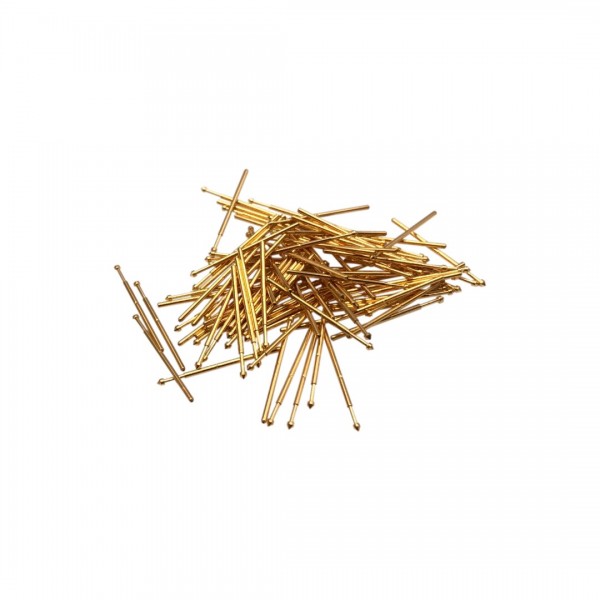

Pogo Pins - PA50-E2 - 100 pieces

Pogo Pins - PA50-E2 - 100 pieces
Pogo Pins - PA50-E2 - 100 pieces
Pogo Pins - PA50-E2 - 100 pieces
Pogo Pins - PA50-E2 - 100 pieces
Pogo Pins - PA50-E2 - 100 pieces
Pogo Pins - PA50-E2 - 100 pieces
Pogo Pins - PA50-E2 - 100 pieces
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004305
€15.50
Ex Tax: €12.81

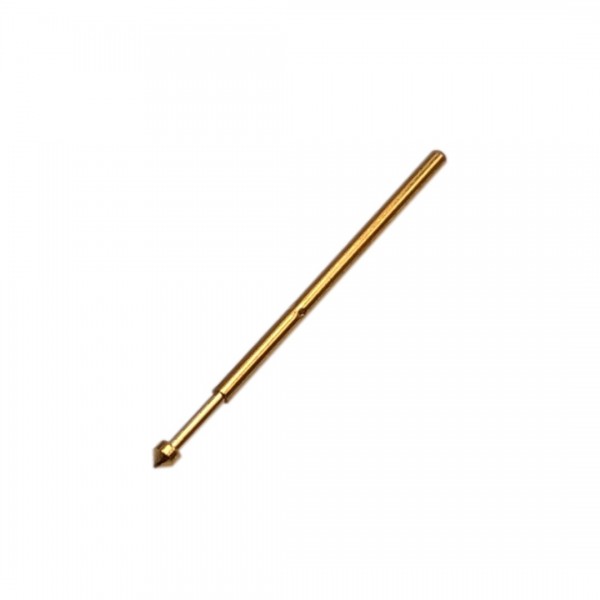

Pogo pins are ideal for use as test probes, but can of course also be used for other purposes.

Note: The tip is often too thin to use as a probe for standard printed circuit board pins.

Please login or register to review

Reviews Over Pogo Pins - PA50-E2 - 100 pieces

This product has 0 review(s) in total.

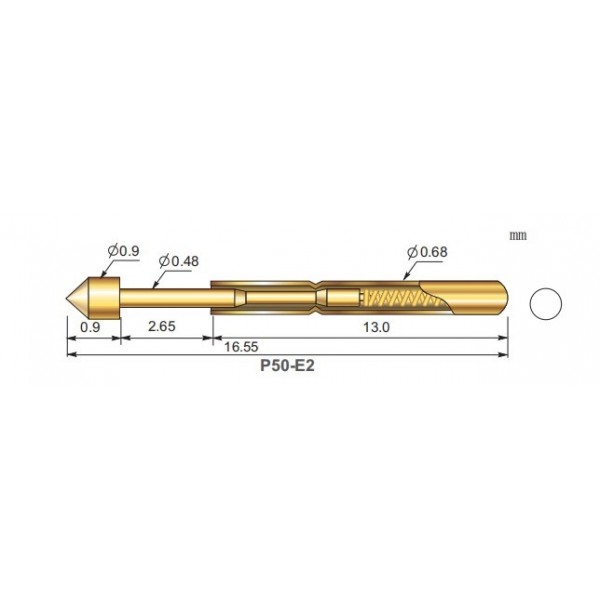

Specifications

General
Brand No brand
Manufacturer model/SKU PA50-E2
General physical appearance
Weight [g] 1
Dimension X [mm] 0.9
Dimension Y [mm] 0.9
Dimension Z [mm] 17
Mounting options THT
Form factor Individual component
Experiment PCB friendly Yes
Connectors
Connector type(s) Solder pin(s) (THT)
Pogo pin(s)
Number of conductors/pins 1
Pin shape Round
Connector/pin width [mm] 0.68
Tip diameter [mm] 0.9
Pin length (PCB/short side) [mm] 13
Package contents
Package contents (approximately)
100x Pogo Pin
