Name: JCG401 868MHz Antenna - Small - SMA - JCG401-SMA
SKU: 006679
Price: 1.75 EUR
Availability: InStock

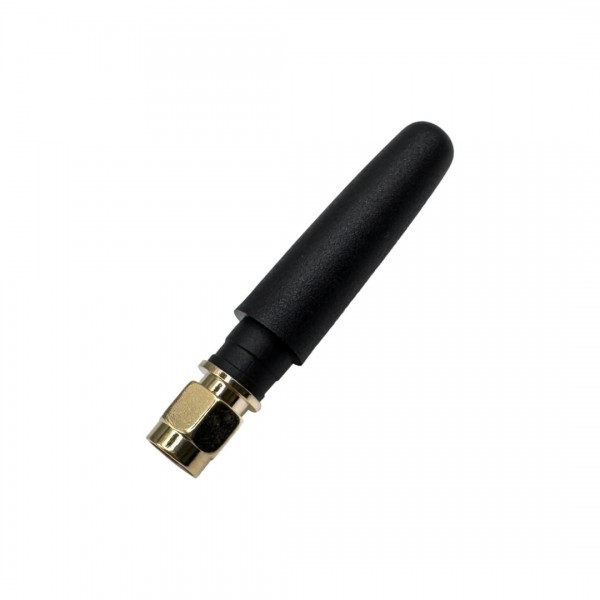

JCG401 868MHz Antenna - Small - SMA

Based on 0 review(s) - Write a review

€1.75

Ex Tax: €1.45

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

An antenna from JC Antenna.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: JCG401 868MHz Antenna - Small - SMA , JCG401-SMA , 868MHz

General
Brand	JC Antenna
Manufacturer model/SKU	JCG401-SMA
Norm conformity	RoHS
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
General physical appearance
Main color	Black
Weight [g]	6
Dimension X [mm]	10.5
Dimension Y [mm]	10.5
Dimension Z [mm]	54
Mounting options	Screw thread
Form factor	Individual component
Connectors
Connector type(s)	SMA male
Orientation	Straight
Antenna
Frequency band(s)	850MHz (LTE B5, B18, B26, B89) 868MHz (e.g. RF, LoRa) 900MHz (LTE B8, B81, B93, B94, B100, B106) 915MHz (e.g. LoRa) 1800MHz (LTE B3, B80) 1900MHz (LTE B2, B25, B39, B98, B101)
Maximum gain [dBi]	2
Impedance [Ω]	50
Radiation direction	Omnidirectional
Package contents
Package contents	1x Antenna
