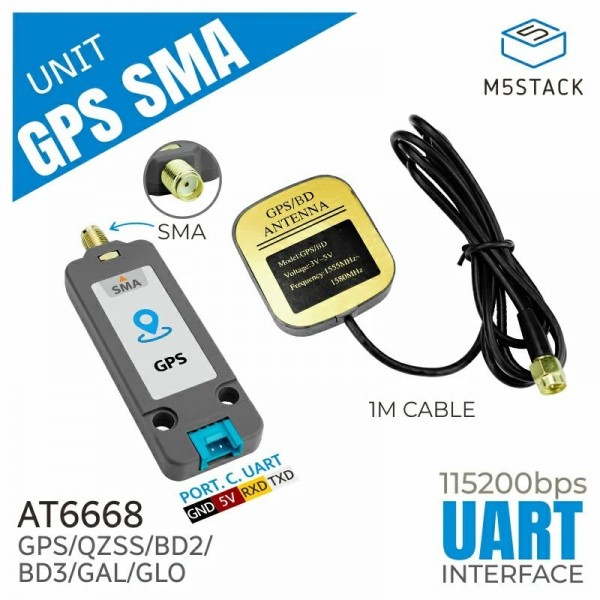

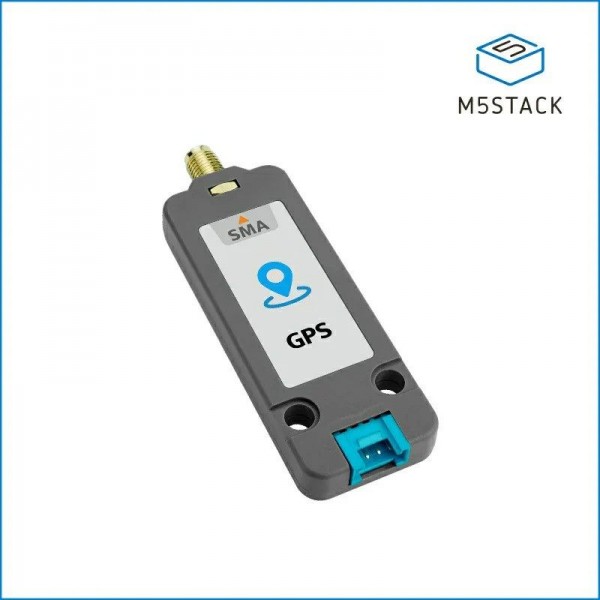

M5Stack GPS-BDS-GNSS Unit - with SMA Antenna

M5Stack GPS-BDS-GNSS Unit - with SMA Antenna
M5Stack GPS-BDS-GNSS Unit - with SMA Antenna
M5Stack GPS-BDS-GNSS Unit - with SMA Antenna
M5Stack GPS-BDS-GNSS Unit - with SMA Antenna
M5Stack GPS-BDS-GNSS Unit - with SMA Antenna
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006776
€13.50
Ex Tax: €11.16

A GNSS module from M5Stack which supports various satellite networks.

Please login or register to review

Reviews Over M5Stack GPS-BDS-GNSS Unit - with SMA Antenna

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU U190
Features Enclosure
General physical appearance
Main color Gray/silver
Weight [g] 11
(module)
37
(antenna)
Dimension X [mm] 64
(module)
47
(antenna)
Dimension Y [mm] 24
(module)
41
(antenna)
Dimension Z [mm] 8
(module)
15
(antenne)
Mounting options LEGO (compatible) holes
Form factor Module (general)
M5Stack Unit
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 115200
Wireless communication
Interface(s) GNSS
GNSS chip/SoC ATGM336H-6N (AT6668)
Supported GNSS systems GPS
Beidou
GLONASS
Galileo
QZSS
Maximum GNSS position accuracy [m] 1.5
Maximum GNSS update rate [Hz] 10
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
GNSS antenna connector SMA female
Wire/cable
Wire/cable length [m] 1
(of antenna)
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x GPS-BDS-GNSS Unit
1x Grove female cable
1x SMA antenna
