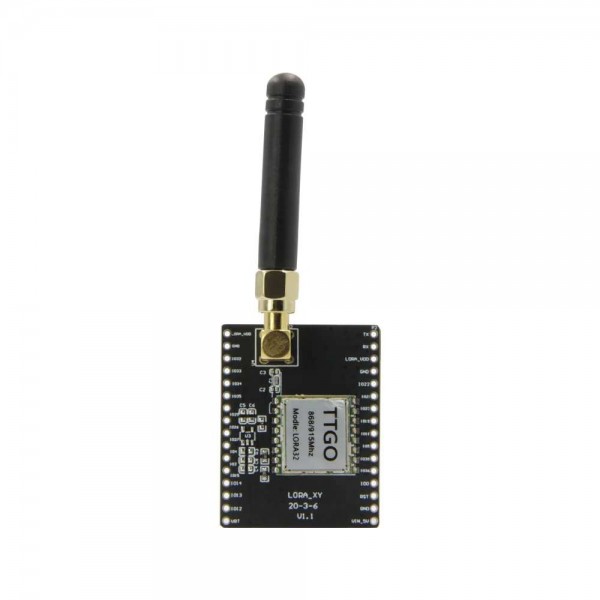

LilyGO LoRa Shield for T-SIM7000G - 868MHz

LilyGO LoRa Shield for T-SIM7000G - 868MHz
LilyGO LoRa Shield for T-SIM7000G - 868MHz
New
LilyGO LoRa Shield for T-SIM7000G - 868MHz
LilyGO LoRa Shield for T-SIM7000G - 868MHz
LilyGO LoRa Shield for T-SIM7000G - 868MHz
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005289
Based on 0 review(s) - Write a review
€12.50
Ex Tax: €10.33
Add to Cart
Add to wishlist

This is a LoRa shield for the LilyGO T-SIM7xxx series. Sample code is available for the T-SIM70xx models (see link below).

See the following page for more information: GitHub

Please login or register to review

Reviews Over LilyGO LoRa Shield for T-SIM7000G - 868MHz

This product has 0 review(s) in total.

Tags: LilyGO LoRa Shield for T-SIM7000G - 868MHz , LILYGO-DZ045-03 , Modules

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU DZ045-03
Model revision V1.1
General physical appearance
Main color Black
Weight [g] 10
Dimension X [mm] 42
Dimension Y [mm] 33
Mounting options Pin headers
Form factor Module (general)
T-SIM layout/shield
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
Wireless communication
Interface(s) LoRa
LoRa frequency [MHz] 868
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
LoRa antenna connector SMA female
Package contents

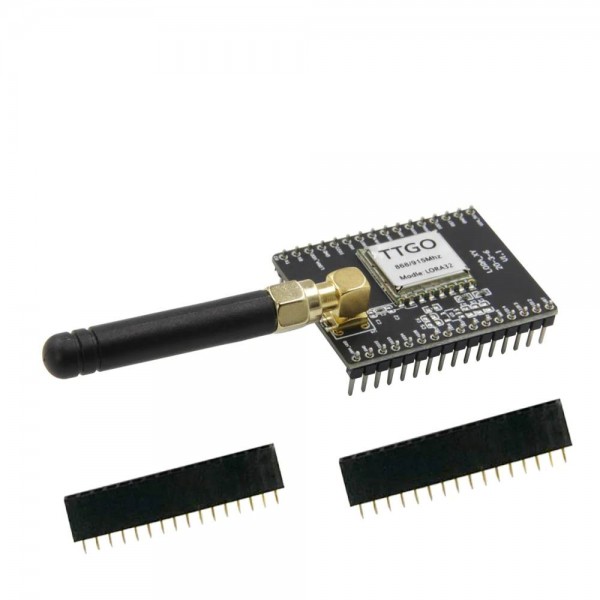

Package contents 1x Lora 868MHz shield
1x Lora antenna
2x Female pin header 16p
