CC2531 Wireless USB Module 2.4GHz Zigbee

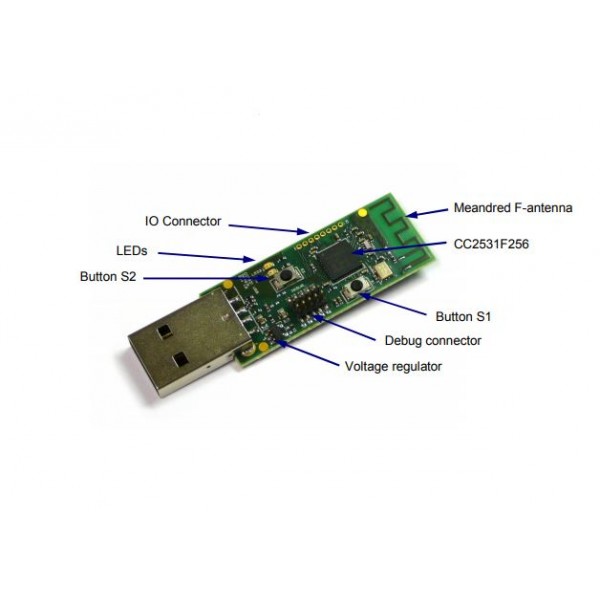

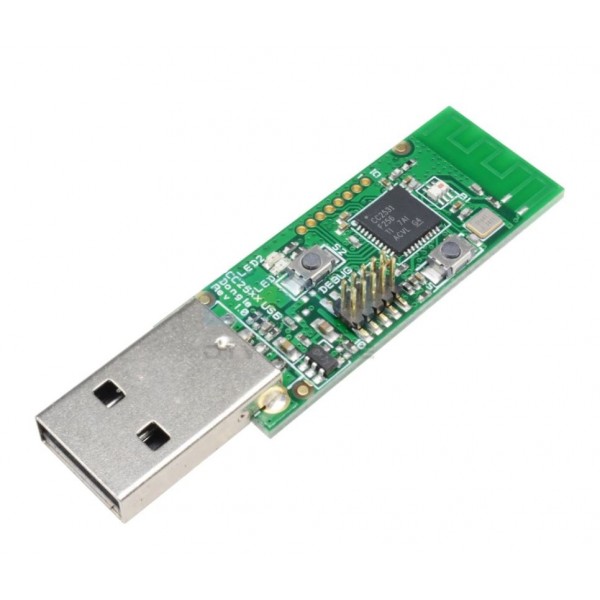

This CC2531 USB Stick is a complete ZigBee transceiver with a 9051 CPU and a USB interface in one chip. In addition, this module contains 2 buttons, 2 LEDs and 8 IO pins that can be programmed to allow sensors to work with this ZigBee module, for example. The ZigBee USB Stick has a debug connector with which the module can be programmed and debugged.
You can use two modules to send data to each other or multiple modules to send/receive data to multiple modules. By inserting the module into your PC, it will be supplied with power.

Specifications:

• Input voltage: 3.3-5.5 VDC
• Current: <20mA on receive, <25mA on transmission
• Frequency: 2400 - 2450MHz
• Range:
  • In practice: <25m
  • Ideal conditions: <300m
• Chip: Texas Instruments CC2531
• Dimensions: 41 x 16mm
• Possibility of data exchange between multiple modules

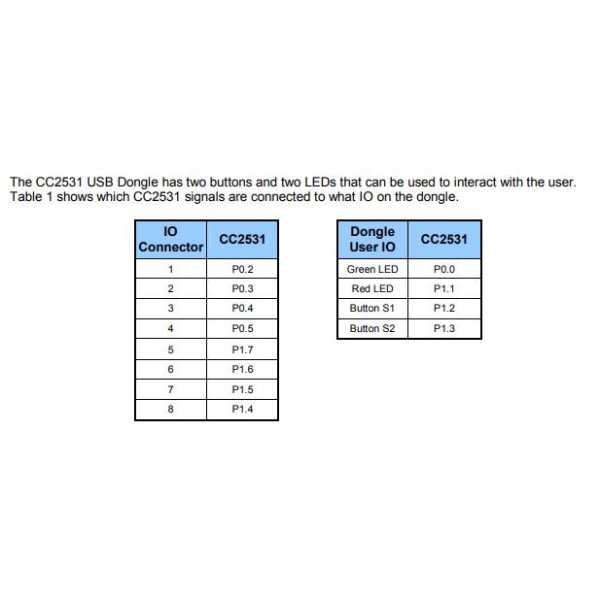

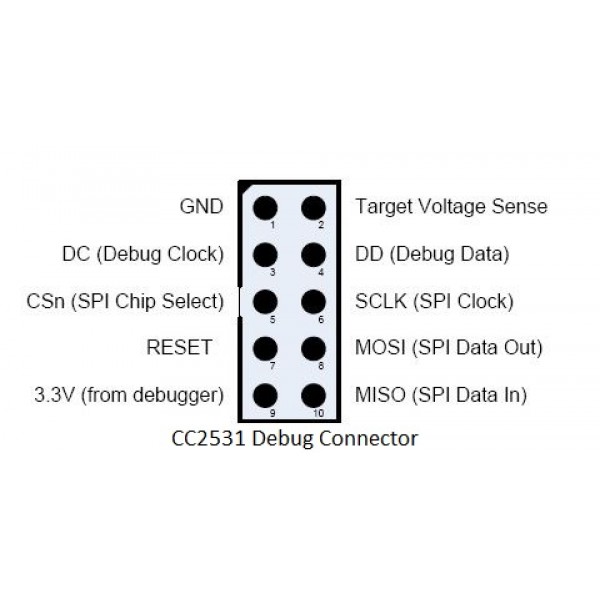

• Pinout is indicated on the images and datasheets/guides below

See the attachment for a quick starter's guide or a more extensive users guide. For even more information about this module, check out this link: CC2531_ZigBee_Stick.

For alternative programming and debugging methods with, for example, Arduino, Raspberry Pi and ESP modules. Check out this link: AlternativeFlashingMethods_CC2531.

Check the tab "Downloads" for more information and/or downloads.
