LilyGO T-32C3 Microcontroller - ESP32-C3

Based on 0 review(s) - Write a review

€4.50

Ex Tax: €3.72

Qty

Add to Cart

Add to wishlist

Only 5 pieces in stock

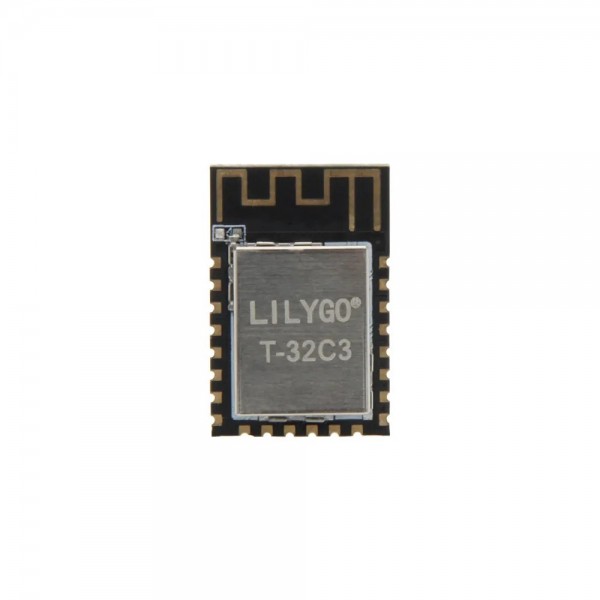

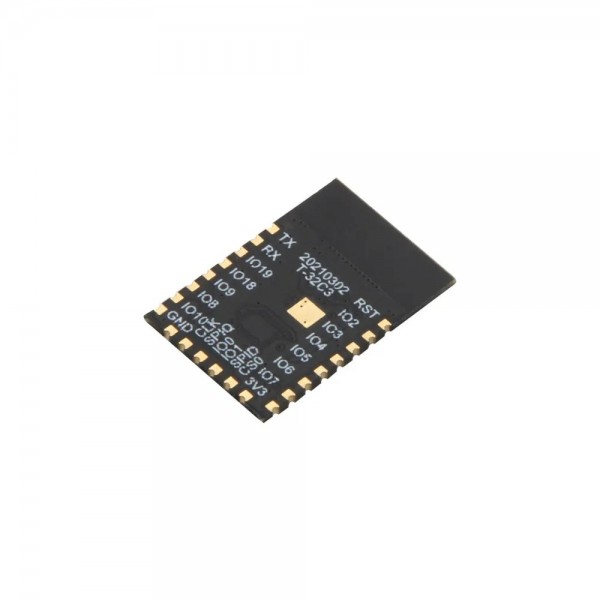

A microcontroller module from LilyGO based on the ESP32-C3 chip.

Please login or register to review

This product has 0 review(s) in total.

Tags: LilyGO T-32C3 Microcontroller - ESP32-C3 , LILYGO-H515 , Microcontroller Chips

General
Brand	LilyGO TTGO
Manufacturer model/SKU	H515
Features	Microcontroller
General physical appearance
Main color	Gray/silver
Weight [g]	2
Dimension X [mm]	24
Dimension Y [mm]	16
Dimension Z [mm]	3.5
Mounting options	SMT
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-C3
Maximum clock frequency [MHz]	160
Number of cores	1
Internal memory
SRAM [KB]	400
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO
Number of IO-pins	13
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	4
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	2
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi chip/SoC	ESP32-C3
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-C3
Bluetooth version	5.0
Supported Bluetooth standard(s)	LE
Connectors
Power supply connector(s)	Solder pin(s) (SMT)
IO-connector(s)	Solder pin(s) (SMT)
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Package contents
Package contents	1x T-32C3
