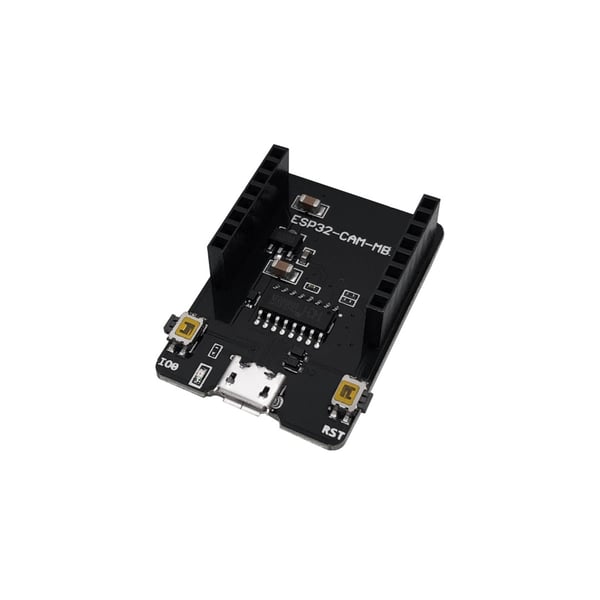

ESP32-CAM-MB Programmer Shield
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004470
€2.75
Ex Tax: €2.27
Your shopping cart is empty!
This is a shield that has been specially developed for the ESP32- CAM - Wi-Fi and Bluetooth Board with OV2640 Camera. The ESP32-CAM is a very handy module, but it lacks a USB connection that makes it easy to upload new code. Due to the USB connection and built-in USB to serial converter, it has become a lot easier with this shield.
Note: The RST button on this shield does not work. To put the ESP32-CAM in boot mode for programming, the following two options are therefore possible:
General | |
Brand | No brand |
Manufacturer model/SKU | ESP32-CAM-MB |
General physical appearance | |
Main color | Black |
Weight [g] | 6 |
Dimension X [mm] | 40 |
Dimension Y [mm] | 27 |
Mounting options | Pin headers |
Form factor | Module (general) |
General electrical properties | |
Minimum supply voltage [V DC] | 5 |
Maximum supply voltage [V DC] | 5 |
Minimum IO-pin input voltage [V] | 3.3 |
Maximum IO-pin input voltage [V] | 3.3 |
IO-pin output voltage [V] | 3.3 |
Communication | |
Hardware interface(s) | UART USB CDC |
USB to serial converter | CH340C |
Connectors | |
Power supply connector(s) | Micro USB female |
IO-connector(s) | Pin header female (2.54mm) Micro USB female |
Pin distance [mm] | 2.54 |
Package contents | |
Package contents | 1x ESP32-CAM-MB |
