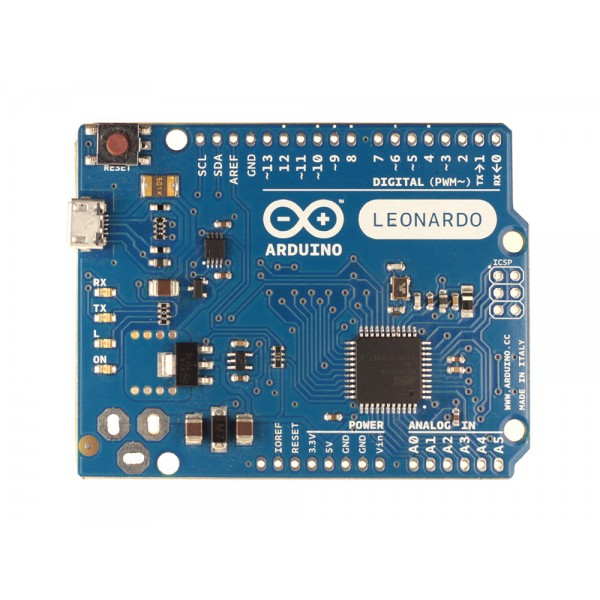

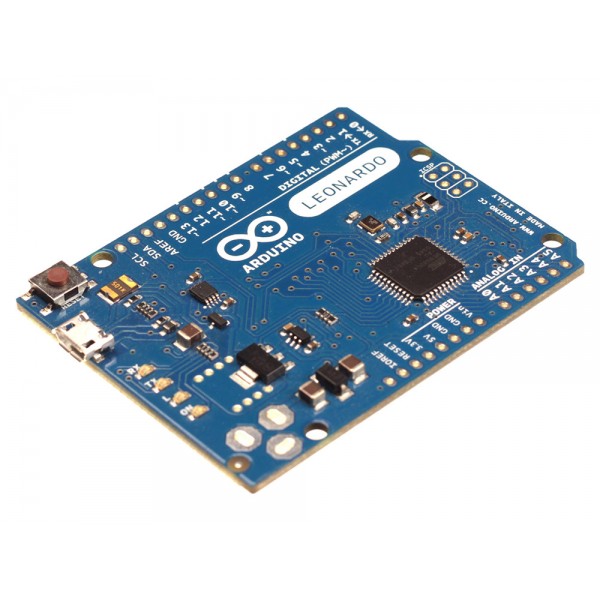

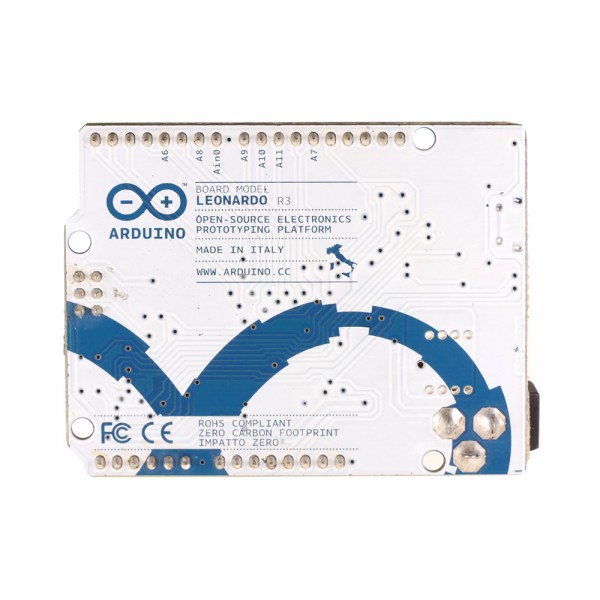

Arduino Leonardo - Without headers

The Arduino Leonardo is a microcontroller board based on an ATmega32u4. This processor can handle USB communication, so an external processor is not required for this. This allows the Leonardo to handle the functionality of a mouse or keyboard, among other things. See the following page for more information about the differences between the Uno and the Leonardo: Differences from the Arduino Uno

This is a version of the Leonardo without headers.

Specifications:

• Microprocessor: ATmega32u4
  • Clock frequency: 16MHz
  • Flash memory: 32KB
  • SRAM: 2.5KB
  • EEPROM: 1KB
• Input voltage (recommended): 7-12V DC
• I/O pin voltage: 5V
• Digital I/O pins: 20 (of which 7 PWM)
• Analog inputs: 12
• DC current per I/O pin: 40mA
• DC current for 3.3V pin: 50mA

Package contents:

• 1x Arduino Leonardo without headers

See the following page for more information: Arduino Leonardo without headers
