Arduino Uno R4 Minima

Availability: Directly available from warehouse in Eindhoven
SKU: 005130

Based on 0 review(s) - Write a review

€20.50

Ex Tax: €16.94

10 or more €20.40

20 or more €20.30

50 or more €20.20

100 or more €20.10

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

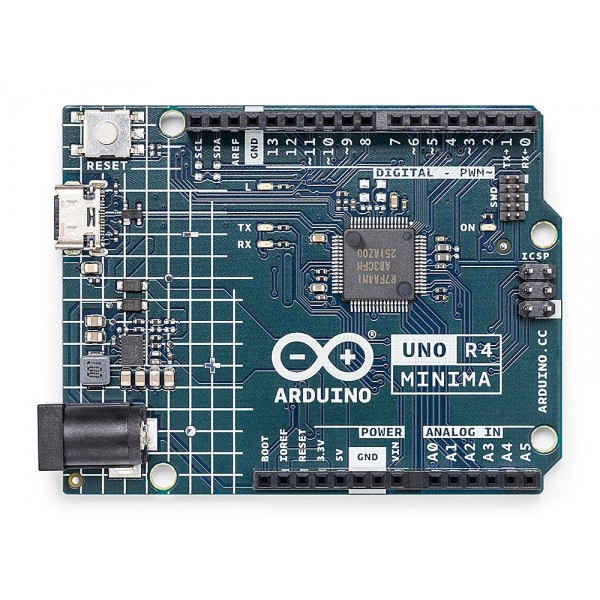

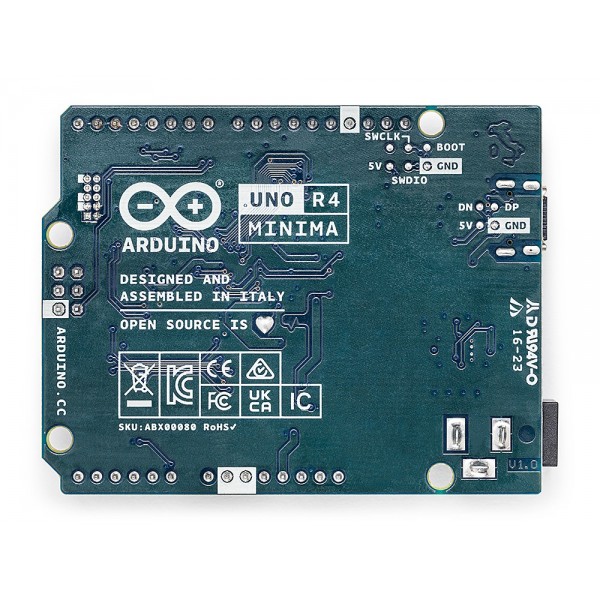

The Arduino Uno R4 Minima is the successor to the Uno R3 and is compatible with most Uno R3 shields. The Uno R4 Minima has a much more powerful Arm Cortex M4 microcontroller, and can be programmed and powered via the USB-C connector.

Note: The maximum IO pin current is only 8mA (compared to >20mA for the R3). Many tutorials online with, for example, LEDs use series resistors of 220Ω to get around 15mA. This resistance is therefore too low for the R4, so use at least 470Ω resistors.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Arduino Uno R4 Minima

Average Rating:

This product has 0 review(s) in total.

Tags: Arduino Uno R4 Minima , ABX00080 , Arduino Compatible

Specifications

General
Brand	Arduino
Manufacturer model/SKU	ABX00080
Norm conformity	RoHS CE FCC
Features	Microcontroller RTC
General physical appearance
Main color	Blue
Weight [g]	20
Dimension X [mm]	69
Dimension Y [mm]	54
Mounting options	Mounting hole(s)
Form factor	Module (general) Uno layout/shield
Experiment PCB friendly	No
General electrical properties
Minimum supply voltage [V DC]	5 (via USB-C) 6 (via DC-jack or Vin pin)
Maximum supply voltage [V DC]	24 (via DC-jack or Vin pin) 5 (via USB-C)
Minimum IO-pin input voltage [V]	4
Maximum IO-pin input voltage [V]	5.8
IO-pin output voltage [V]	5
Maximum IO-pin source current [mA]	8
Maximum IO-pin sink current [mA]	8
MCU/SoC
Manufacturer	Renesas Electronics
Chip series	RA4M1
Maximum clock frequency [MHz]	48
Number of cores	1
Internal memory
SRAM [KB]	32
PSRAM [MB]	0
Flash memory [MB]	0.256
EEPROM [B]	8192
EEPROM type	Built-in
Communication
Hardware interface(s)	I2C SPI Native USB UART PWM ADC DAC GPIO USB CDC Opamp
Number of IO-pins	20
Maximum available hardware PWM channels	6
Maximum available analog input pins (ADC)	6
Maximum available analog output pins (DAC)	1
Maximum available hardware UART interfaces	1
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	1
USB to serial converter	Integrated into microcontroller
RTC
Back-up battery/capacitor	None
Connectors
Power supply connector(s)	Pin header female (2.54mm) USB-C female DC-jack 5.5/2.1mm female
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm) USB-C female
Package contents
Package contents	1x Arduino Uno R4 Minima 1x Mounting plate
