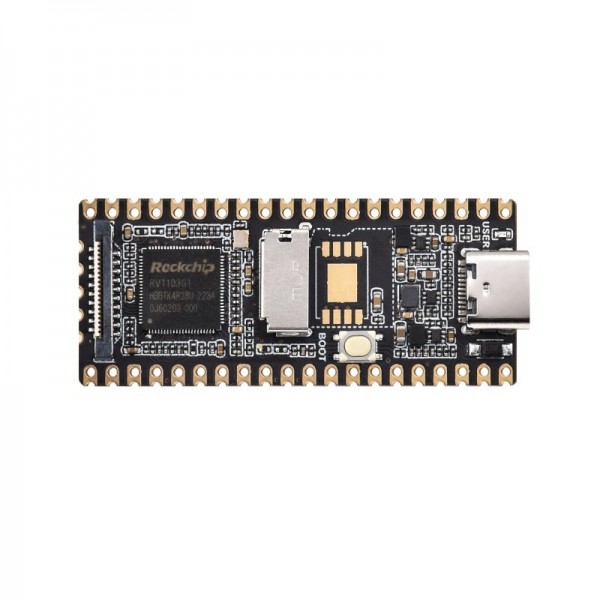

A development board that runs on a Linux distribution. The internal image signal processor (ISP) and CSI camera interface make this board suitable for use in computer vision projects, for example.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Luckfox Pico - Linux Development Board - RV1103

Average Rating:

This product has 0 review(s) in total.

Tags: Luckfox Pico - Linux Development Board - RV1103 , WS-25078 , Others

Specifications

General
Brand	Luckfox
Manufacturer model/SKU	25078
Features	Microcontroller SD-card adapter
General physical appearance
Main color	Black
Weight [g]	5
Dimension X [mm]	51
Dimension Y [mm]	21
Mounting options	SMT
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3 (GPIO) 1.8 (ADC)
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	6
Maximum IO-pin sink current [mA]	6
MCU/SoC
Manufacturer	Rockchip
Chip series	RV1103
Maximum clock frequency [MHz]	1200
Number of cores	1
Internal memory
SDRAM [MB]	64
Flash memory [MB]	0
Communication

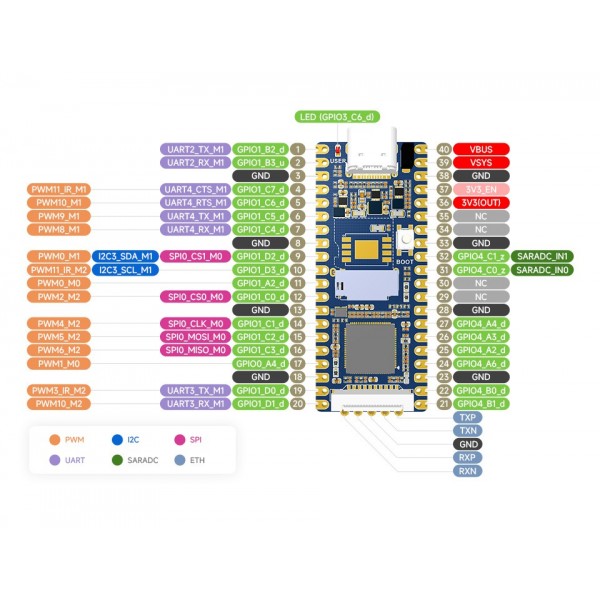

Hardware interface(s)	CSI I2C SPI Native USB UART PWM ADC GPIO
Number of IO-pins	24
Maximum available hardware PWM channels	14
Maximum available analog input pins (ADC)	2
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	1
Supported SD card size	Micro SD
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female
IO-connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT) USB-C female FFC female 20p 0.50mm
Package contents
Package contents	1x Luckfox Pico
