Espressif ESP32-C6-DevKitM-1

Availability: Directly available from warehouse in Eindhoven
SKU: 005276

Based on 0 review(s) - Write a review

€12.50

Ex Tax: €10.33

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

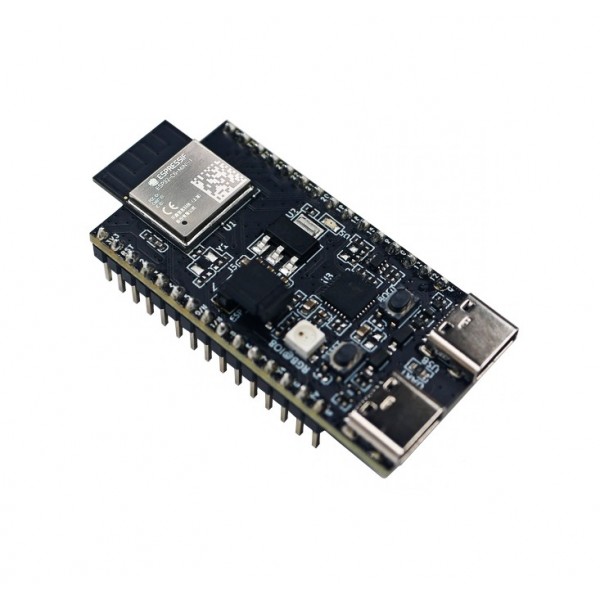

This development board from Espressif, with ESP-C6 microcontroller chip, which supports Zigbee and Thread as well as Wi-Fi and Bluetooth. The board has a USB-C connection with which it can be programmed and/or powered.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Espressif ESP32-C6-DevKitM-1

Average Rating:

This product has 0 review(s) in total.

Tags: Espressif ESP32-C6-DevKitM-1 , ESP32-C6-DEVKITM-1 , With Bluetooth

Specifications

General
Brand	Espressif
Manufacturer model/SKU	ESP32-C6-DevKitM-1
Model revision	V1.0
Features	Microcontroller Programmable button(s) Digital LED(s)
General physical appearance
Main color	Black
Weight [g]	9
Dimension X [mm]	49 (excl. antenna) 54 (incl. antenna)
Dimension Y [mm]	26
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-C6
Maximum clock frequency [MHz]	160
Number of cores	1
Internal memory
SRAM [KB]	512
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S SPI UART PWM ADC GPIO USB CDC
Number of IO-pins	22
Maximum available hardware PWM channels	7
Maximum available analog input pins (ADC)	7
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	3
Maximum available hardware I2C interfaces	2
Maximum available hardware SPI interfaces	1
USB to serial converter	CP2102 Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth Zigbee Thread
Wi-Fi chip/SoC	ESP32-C6
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-C6
Bluetooth version	5.3
Supported Bluetooth standard(s)	LE
Zigbee chip/SoC	ESP32-C6
Zigbee frequency [GHz]	2.4
LED
LED (driver) chip	WS2812B
LED color	RGB
Connectors
Power supply connector(s)	Pin header male (2.54mm) USB-C female
IO-connector(s)	Pin header male (2.54mm) USB-C female
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Zigbee antenna connector	Built-in antenna (same as Wi-Fi/bluetooth antenna)
Package contents
Package contents	1x ESP32-C6-DevKitM-1
