0.91 inch OLED Display 128*32 pixels Blue - I2C

Based on 1 review(s) - Write a review

€6.50

Ex Tax: €5.37

10 or more €6.25

20 or more €6.00

50 or more €5.75

100 or more €5.50

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

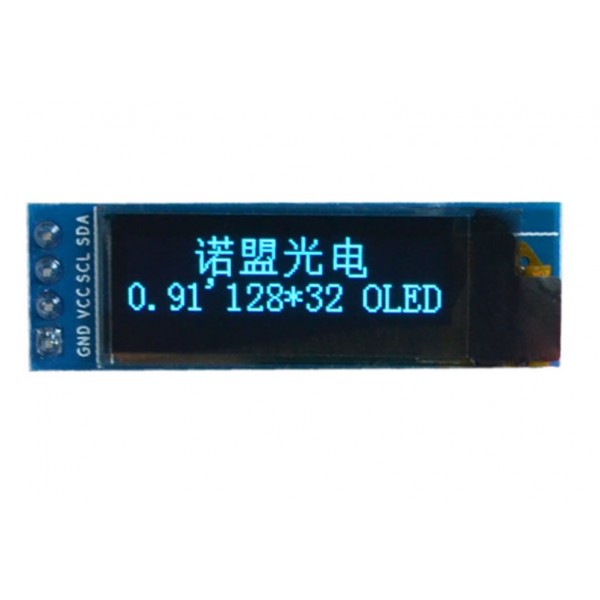

A 0.91 inch I2C OLED display with 128*32 blue pixels and very good viewing angles of at least 160 degrees.

See the following page for a library for the Arduino IDE: Adafruit SSD1306

Please login or register to review

This product has 1 review(s) in total.

Tags: 0.91 inch OLED Display 128*32 pixels Blue - I2C , I2C0.91OLEDBLUE , OLED

General
Brand	ZHONGJINGYUAN
Manufacturer model/SKU	ZJY091I0400BG01
Features	Display
General physical appearance
Main color	Blue
Weight [g]	2

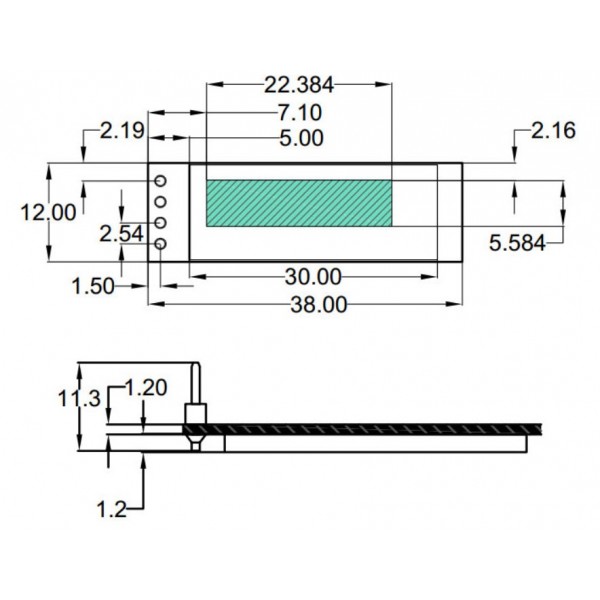

Dimension X [mm]	38
Dimension Y [mm]	12
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x3C
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	4.7
Display
Type	OLED
Driver	SSD1306
Screen diagonal [inch]	0.91
Number of pixels long side	128
Number of pixels short side	32
Display shape	Rectangular
Pixel colors	Blue
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Pinout
Power supply pin	VCC
Ground/min	GND
I2C SDA	SDA
I2C SCL	SCL
Package contents
Package contents	1x Display module
