0.96 inch OLED Display 128*64 Pixels White - SPI

Availability: Directly available from warehouse in Eindhoven
SKU: 000323

Based on 1 review(s) - Write a review

€7.00

Ex Tax: €5.79

10 or more €6.50

20 or more €6.00

50 or more €5.50

100 or more €5.00

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

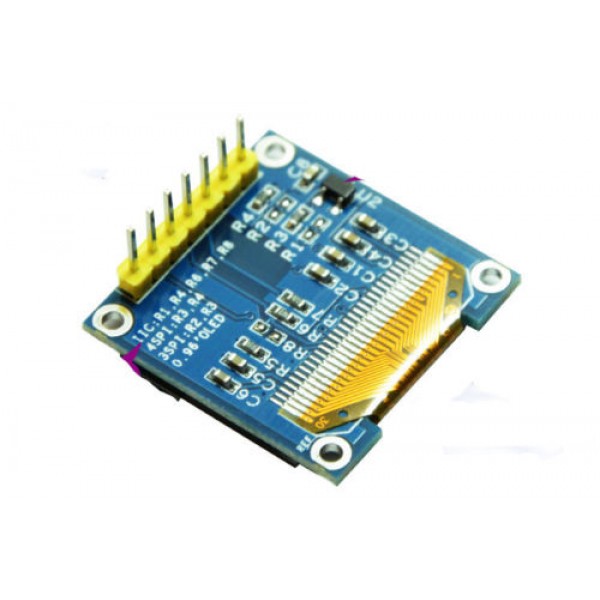

A 0.96 inch OLED display of 128*64 white pixels and very good viewing angles of at least 160 degrees.
To connect the display you can follow the Adafruit manual for the majority.
The required library and manual can be found here.

Please login or register to review

Reviews Over 0.96 inch OLED Display 128*64 Pixels White - SPI

Average Rating:

This product has 1 review(s) in total.

Tags: 0.96 inch OLED Display 128*64 Pixels White - SPI , 0.96OLEDWHITE , OLED

Specifications

General
Brand	ZHONGJINGYUAN
Manufacturer model/SKU	ZJY096S0700WG01
Features	Display
General physical appearance
Main color	Blue
Weight [g]	4
Dimension X [mm]	28
Dimension Y [mm]	28
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	OLED
Driver	SSD1306
Screen diagonal [inch]	0.96
Number of pixels long side	128
Number of pixels short side	64
Display shape	Rectangular
Pixel colors	White
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)

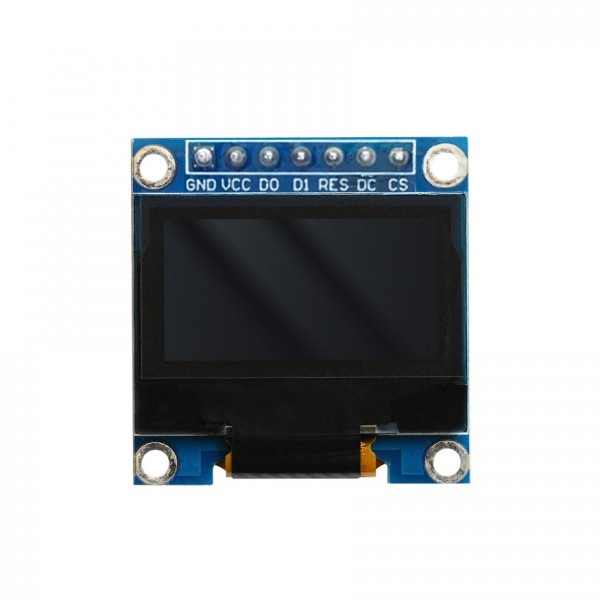

Pinout
Power supply pin	VCC
Ground/min	GND
SPI MOSI/COPI	D1
SPI CLK	D0
SPI data command	DC
Chip select (CC/SS)	CS
Reset	RES
Package contents
Package contents	1x Display module
