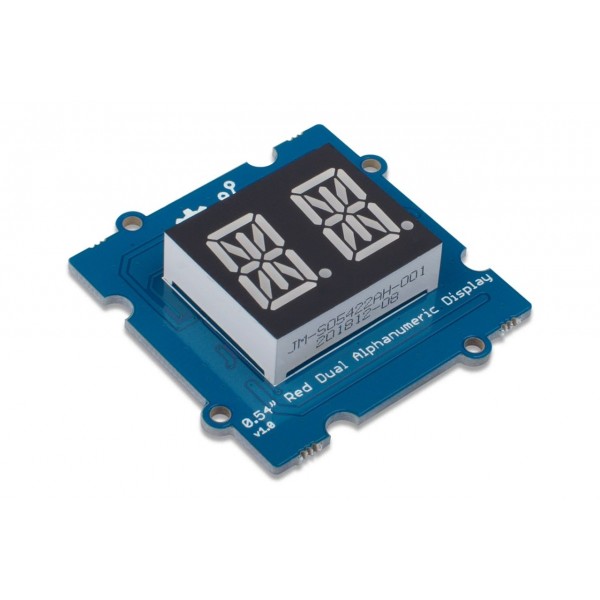

Seeed Studio Grove 0.54 inch Red Dual Alphanumeric Display - HT16K33

A segment display module from Seeed Studio. With the built-in Grove connection and supplied Grove cable, the module can easily be connected to the microcontroller boards from Seeed Studio or other microcontrollers with Grove connectors.

Specifications:

• Supply voltage: 3.3 - 5V DC
• Signal voltage: 3.3 - 5V (same as supply voltage)
• Communication:
  • Interface: I2C

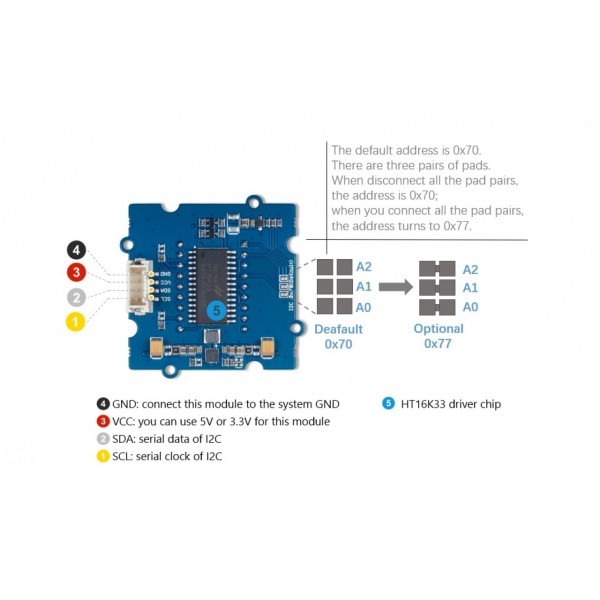

  • I2C address: 0x70 (adjustable)
• Screen:
  • Type: Segment display
  • Number of characters: 2
  • Character diagonal: 0.54 inch
  • Number of segments per character: 14
  • Pixel colors: Red
  • Driver: HT16K33
• Connector: Grove
• Operating temperature: -30 - 85°C

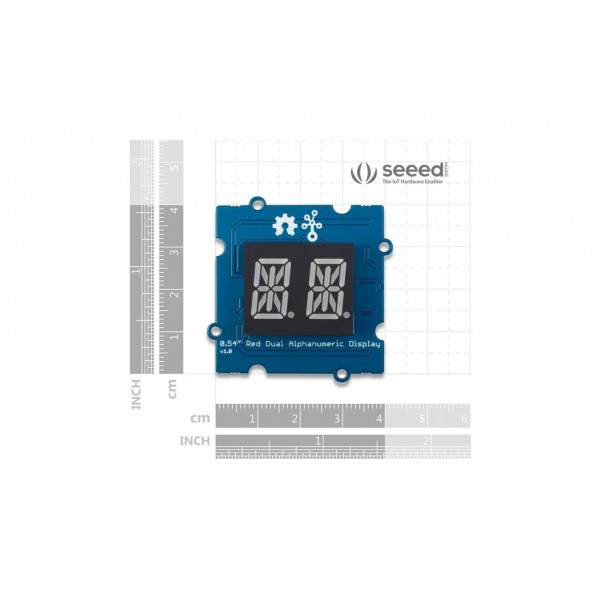

• Dimensions: See images

Package contents:

• 1x Seeed Studio Grove 0.54 inch Red Double Alphanumeric Display
• 1x Grove cable

See the following page for more information and examples: Grove - 0.54 inch Red Dual Alphanumeric Display

Check the tab "Downloads" for more information and/or downloads.
