Segmenten Display - 4 Characters - Red

Segment displays are often used in clocks or for indicating numbers in general, eg to display a voltage.

This variant is also provided with a colon in the middle. The colon is often used to display counting seconds. (on-off-on-off etc.)

Here red LEDs are incorporated, and so the same rules apply for series resistors as in the Red LED .

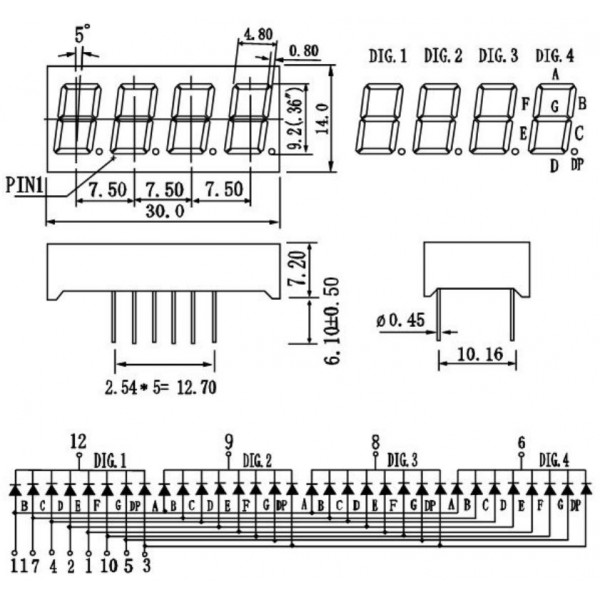

The diagrams with pinouts, dimensions and other specifications can be seen in the images.
