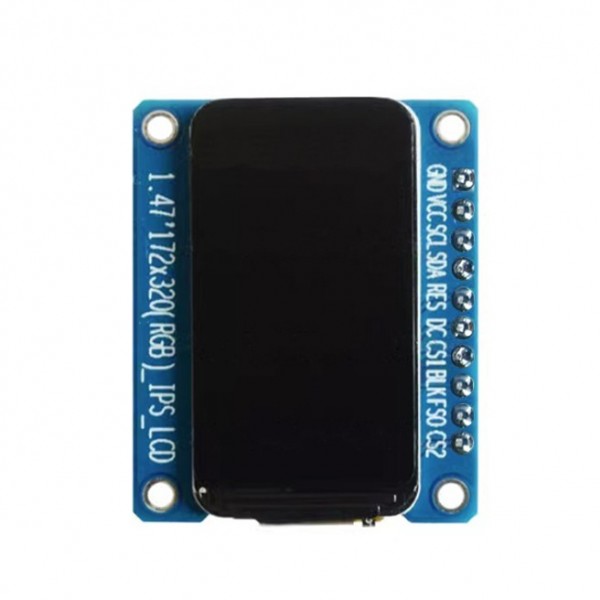

1.47 inch IPS-TFT Display 172*320 pixels - SPI - ST7789V3 - 3.3V

Availability: Directly available from warehouse in Eindhoven
SKU: 005354

Based on 1 review(s) - Write a review

€7.50

Ex Tax: €6.20

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A IPS display based on the ST7789V3 driver. The module also contains another chip (GT30L32) (and associated pins) that provides the display with additional fonts, but we have no additional information about this.

Instructions display:
To get the display working you can use the Adafruit-ST7735-Library. This library works with the Adafruit-GFX-Library. This library may need to be installed separately.

Please login or register to review

Reviews Over 1.47 inch IPS-TFT Display 172*320 pixels - SPI - ST7789V3 - 3.3V

Average Rating:

This product has 1 review(s) in total.

Tags: 1.47 inch IPS-TFT Display 172*320 pixels - SPI - ST7789V3 - 3.3V , ZJY147S10Z0TG01 , TFT

Specifications

General
Brand	ZHONGJINGYUAN
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	70
Features	Display
General physical appearance
Main color	Blue
Weight [g]	6
Dimension X [mm]	37
Dimension Y [mm]	30
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	3.3
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	SPI
Display
Type	IPS
Driver	ST7789V3
Screen diagonal [inch]	1.47
Number of pixels long side	320
Number of pixels short side	172
Display shape	Rectangular
Pixel colors	RGB
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Pinout
Power supply pin	VCC
Ground/min	GND
SPI MOSI/COPI	SDA
SPI CLK	SCL
SPI data command	DC
Chip select (CC/SS)	CS1 (display)
Reset	RES
Backlight on/off	BLK
Package contents
Package contents	1x Display module
