2.2 inch TFT Display 240*320 pixels - ILI9341

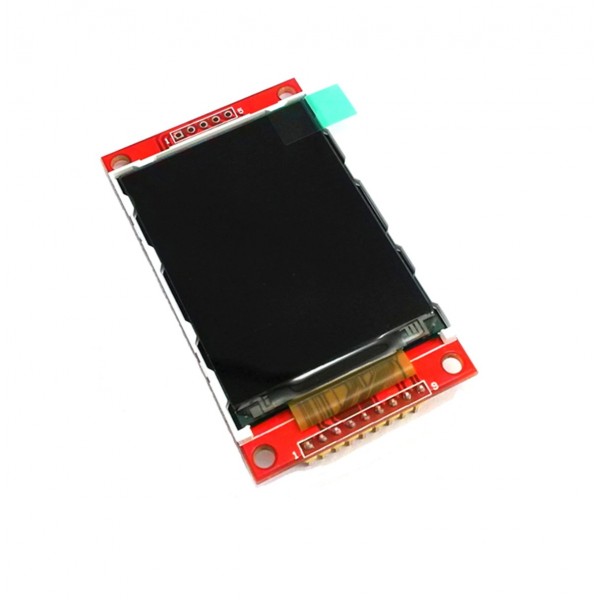

A 2.2 inch TFT display.

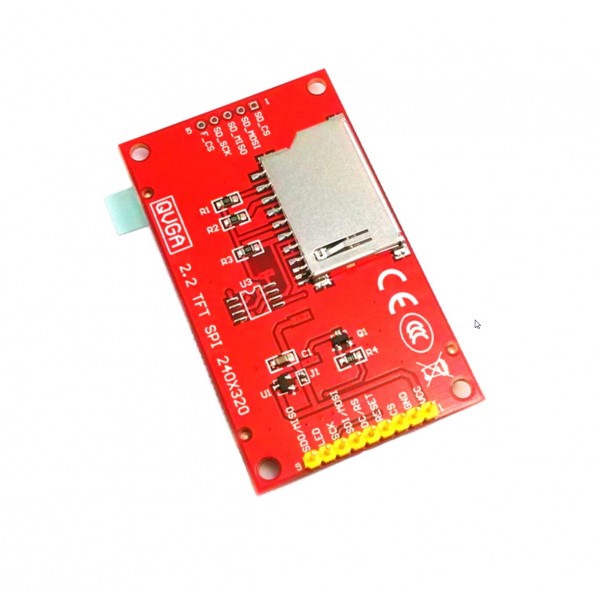

Pin description for SD card and SPI flash pins:

• SD_CS: Chip select signal (for SD card)
• SD_MOSI: SPI MOSI signal (for SD card and SPI flash chip)
• SD_MISO: SPI MISO signal (for SD card and SPI flash chip)
• SD_SCK: Clock signal (for SD card and SPI flash chip)
• F_CS:  Chip select signal (for SPI flash chip)

Note: The SPI pins for the display and the SD cards SPI flash chip work at 3.3V. So use a level converter if necessary.

The display can be used with Arduino together with the Adafruit ILI9341 library. (requires the Adafruit GFX Library)
This library can be downloaded in the Arduino IDE.
