Sonoff POW Ring - POWCT - Wi-Fi Switch with Non-contact Current Transformer

Availability: Directly available from warehouse in Eindhoven
SKU: 006370

Based on 0 review(s) - Write a review

€34.00

Ex Tax: €28.10

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

A handy Wi-Fi switch from Sonoff with built-in energy meter and display. It can be controlled with Android or iOS with the eWeLink app. In addition, it is also compatible with other home automation platforms such as Amazon Alexa, Google Assistant, IFTTT and Google Nest.

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Sonoff POW Ring - POWCT - Wi-Fi Switch with Non-contact Current Transformer

Average Rating:

This product has 0 review(s) in total.

Tags: Sonoff POW Ring - POWCT - Wi-Fi Switch with Non-contact Current Transformer , SONOFF-POWCT , Wi-Fi

Specifications

General
Brand	Sonoff
Manufacturer model/SKU	POWCT
Norm conformity	RoHS CE FCC
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	50
Features	Display Electric switch Current sensor Enclosure
General physical appearance
Main color	White
Weight [g]	120 (excl. accessories)
Dimension X [mm]	98
Dimension Y [mm]	54
Dimension Z [mm]	31
Mounting options	Mounting hole(s) (on bracket)
Diameter mounting hole(s) [mm]	4
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V AC]	100
Maximum supply voltage [V AC]	240
Wireless communication
Interface(s)	Wi-Fi
Wi-Fi frequency [GHz]	2.4
Display
Type	LCD
Display shape	Rectangular
Pixel colors	Black
Current sensor
Number of channels	1
Suitable current	AC
Measuring method	Current clamp
Minimum measuring range [A]	0.0
Maximum measuring range [A]	100
Switch
Switching method	Electrical
Switch type	Mechanical relay
Number of channels/gangs	1
Contact(s)	NO (normally open)
Maximum switching voltage [V AC]	240
Maximum switching voltage [V DC]	30
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	2
Connectors
Power supply connector(s)	Screw terminal
IO-connector(s)	RJ9 male
Switch connector(s)	Screw terminal
Wi-Fi/Bluetooth antenna connector	RP-SMA female
Enclosure
Material	Polycarbonate (PC)
Package contents

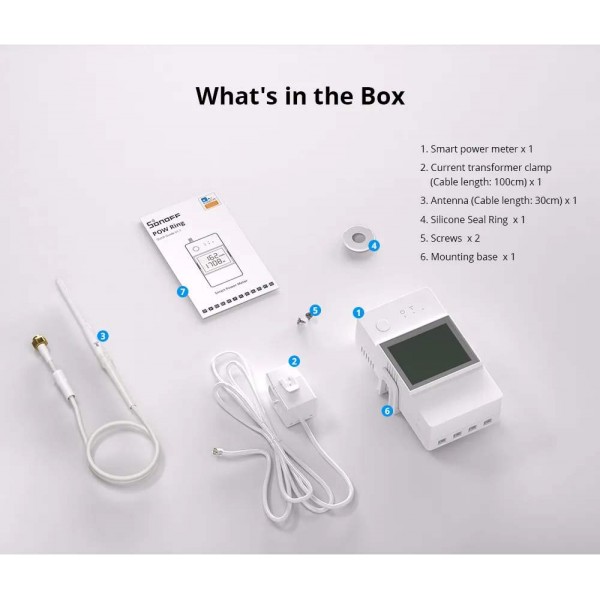

Package contents	1x Sonoff POW Ring 1x Non-contact current transformer(100cm cable) 1x Wi-Fi antenna (30cm cable) 1x Silicone ring 2x Screw 1x Mounting bracket 1x Manual
