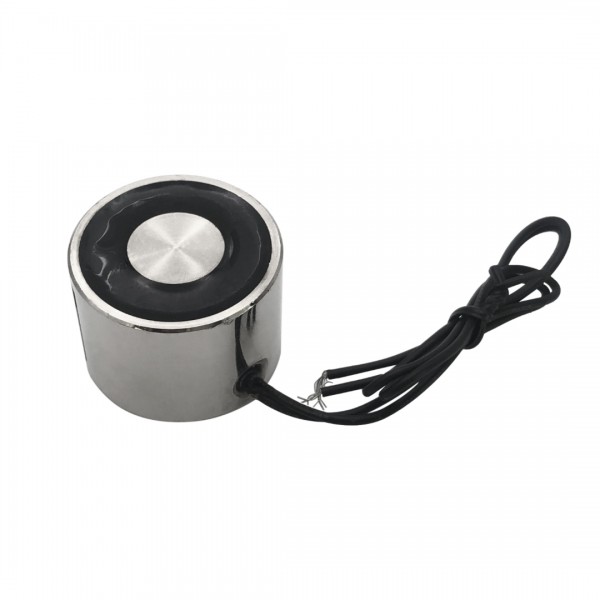

Electromagnet 10kg - 24V DC - JF-XP3022

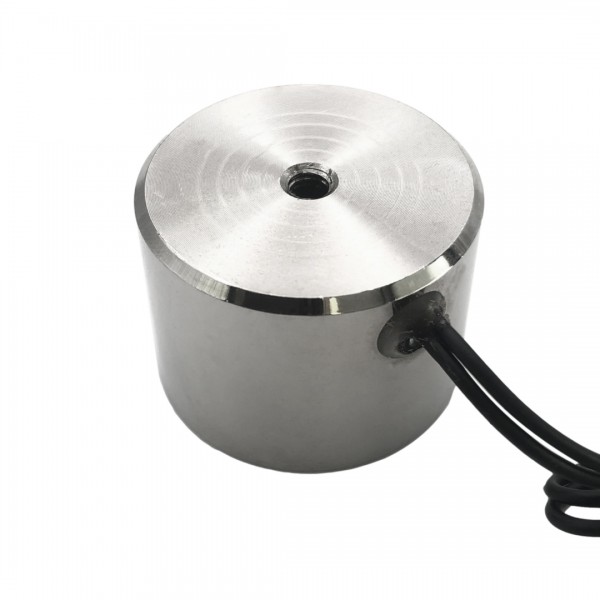

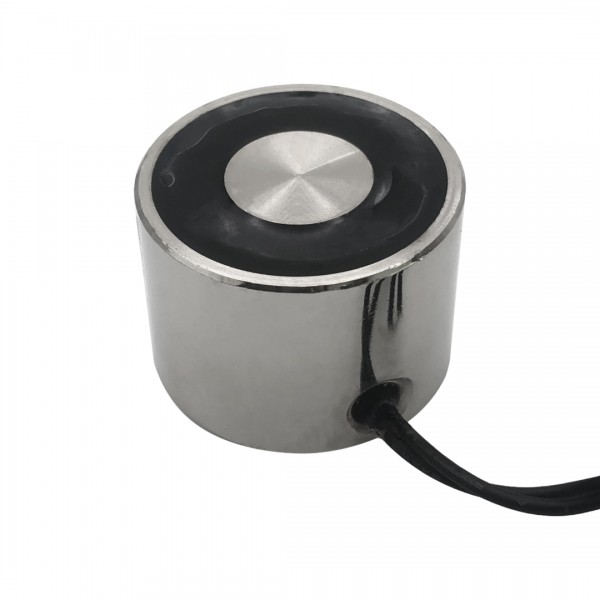

An electromagnet that you can use, for example, to make a lock. This electromagnet is very simple to use, you simply offer a voltage (see specifications) and the electromagnet turns on, the polarity does not matter. As soon as the voltage is removed again, the electromagnet loses its magnetism. We do recommend using a flyback diode as the magnet works on the basis of a coil. There is a mounting hole on the back of the magnet with which it can be attached.

Specifications:

• Supply voltage: 24V DC
• Coil resistance: ~128Ω
• Maximum holding force (on iron): 10kg*
• Thread mounting hole: M4
• Depth mounting hole: 12mm
• Diameter: 30mm
• Height: 22mm

Package contents:

• 1x Electromagnet 10kg - 24V DC - JF-XP3022

See the following page for an example project using a similar electromagnet: Box with rfid-reader and electro magnetic lock.

*Note: The maximum holding force can only be achieved when the magnet exerts its force perpendicular to a flat material (iron), with nothing in between. If this is not the case, for example due to a curved surface or coating, the force will be (much) lower than indicated in the specifications.
