Name: Sunon HA60251V4-A99 - Fan 60x60x25mm - 12V - HA60251V4-A99
SKU: 004802
Price: 3.5 EUR
Availability: InStock

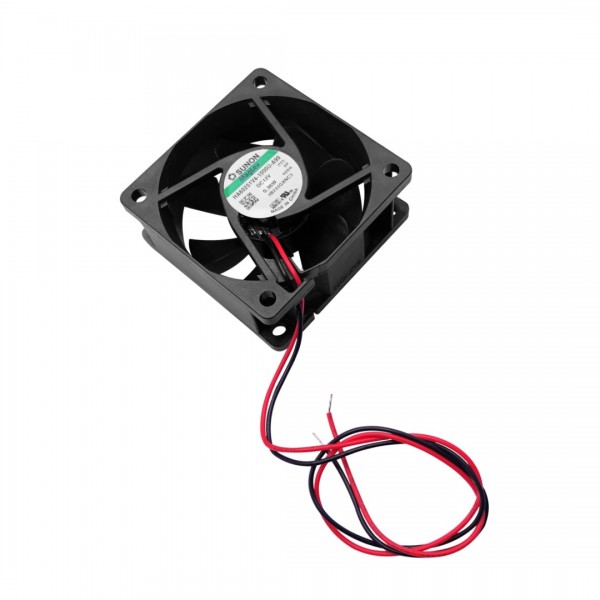

Sunon HA60251V4-A99 - Fan 60x60x25mm - 12V

Based on 0 review(s) - Write a review

€3.50

Ex Tax: €2.89

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Sunon fan with loose wires to cool your project. This size is also very suitable as a radiator fan for Type 22 and/or Type 33 radiators.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Sunon HA60251V4-A99 - Fan 60x60x25mm - 12V , HA60251V4-A99 , Fans

General
Brand	Sunon
Manufacturer model/SKU	HA60251V4-A99
Norm conformity	RoHS
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	70
Lifespan [h]	70000 (See datasheet for exact specification)
Features	Fan
General physical appearance
Main color	Black
Weight [g]	43
Dimension X [mm]	60
Dimension Y [mm]	60
Dimension Z [mm]	25
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	4.3
General electrical properties
Minimum supply voltage [V DC]	4.5
Maximum supply voltage [V DC]	13
Indication average current consumption [mA]	20
Actuator
Actuator type	Brushless DC motor
Maximum speed [RPM]	2500 (±15%) (@12V)
Fan
Air flow [m³/h]	23.3
Orientation	Axial
Indication maximum noise production [dBA]	10.7
Bearing
Bearing type	Sleeve (Vapo)
Connectors
Power supply connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	0.3
Package contents
Package contents	1x Fan
