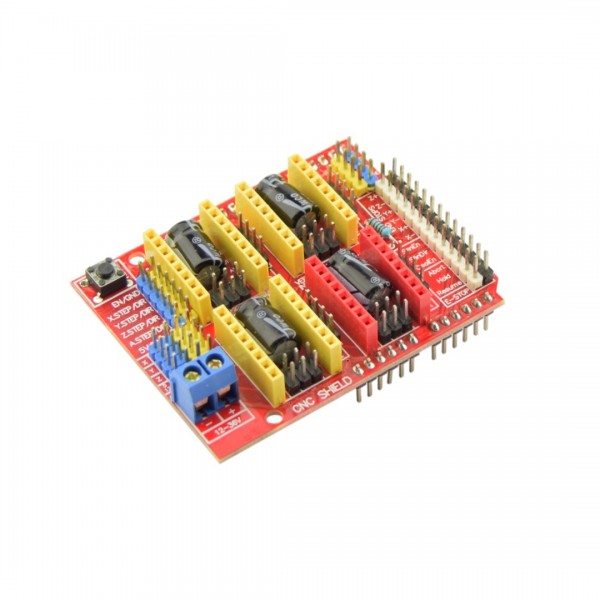

CNC Shield V3

This popular CNC shield can be used to make your own CNC. The shield can be used in combination with A4988 stepper driver modules.
This shield can control 4 step motors.

Specifications:

• GRBL 0.8c compatible
• Can control 4 axles by means of smart control and 4 stepper driver modules
• Two connections for two end stops
• Jumpers to set micro-stepping on certain stepper driver modules
• Voltage range: 12-36V DC (depending on the allowed voltage for the stepper driver modules!)
• Comes without stepper drivers (you have to buy them separately)

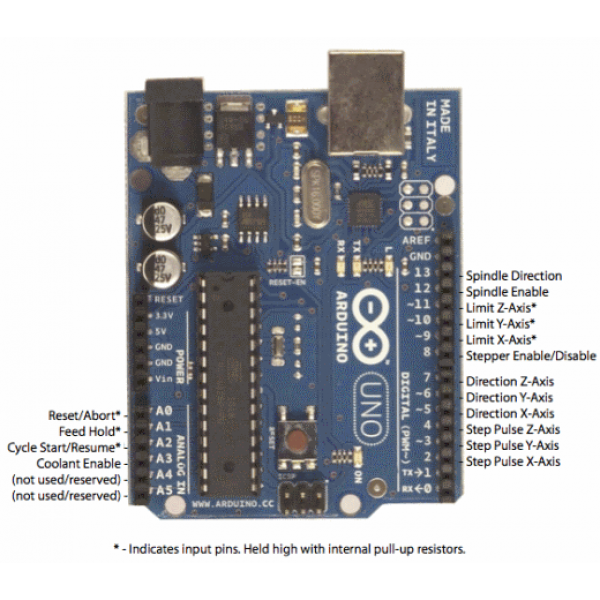

• See images for the pinout of the shield.

For more information see the following page: Arduino CNC Shield
