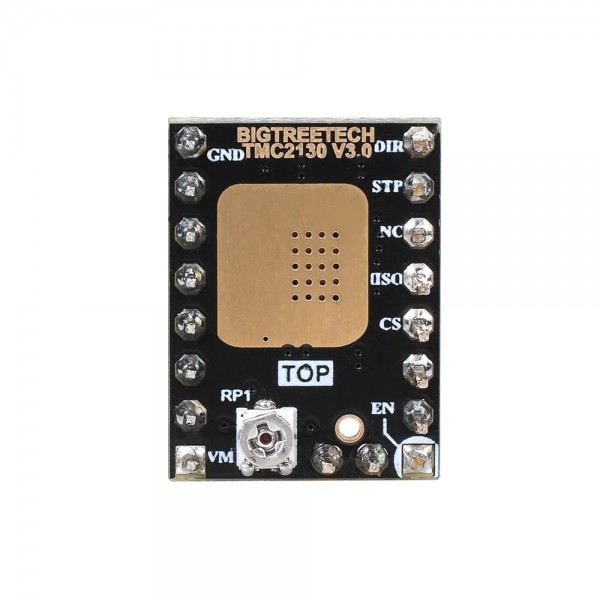

BIGTREETECH TMC2130 V3.0 Stepper Motor Driver Module - SPI

Availability: Directly available from warehouse in Eindhoven
SKU: 005543

Based on 0 review(s) - Write a review

€8.75

Ex Tax: €7.23

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

A stepper motor driver from BIGTREETECH with SPI interface. This stepper motor driver module can be used separately or in combination with a CNC shield or 3D printer.

See the following page for more information: GitHub

Please login or register to review

Reviews Over BIGTREETECH TMC2130 V3.0 Stepper Motor Driver Module - SPI

Average Rating:

This product has 0 review(s) in total.

Tags: BIGTREETECH TMC2130 V3.0 Stepper Motor Driver Module - SPI , BTT-TMC2130-V3.0-SPI , Stepper Motor Controllers and Drivers

Specifications

General
Brand	BIGTREETECH
Manufacturer model/SKU	TMC2130
Model revision	V3.0
Features	Motor driver
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	20
Dimension Y [mm]	15
Mounting options	Pin headers
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	5.2
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5.2
IO-pin output voltage [V]	Equal to supply voltage
Communication

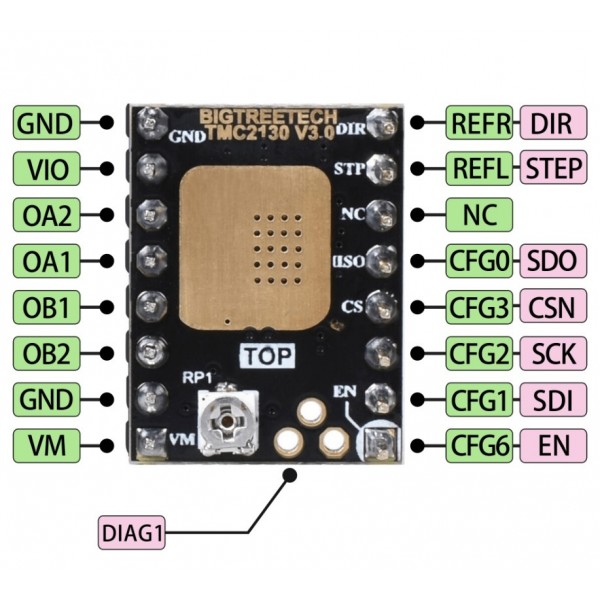

Hardware interface(s)	SPI (with modification step/dir possible)
Motor driver
Type	Driver
Driver chip	TMC2130
Supported motor type(s)	Stepper motor
Direction of rotation	Bi-directional
Number of stepper motor channels	1
Microstepping	1/2 1 (full step) 1/4 1/8 1/16 1/32 1/64 1/128 1/256
Minimum motor supply voltage [V DC]	4.8
Maximum motor supply voltage [V DC]	24
Maximum continuous RMS current per phase [A]	1.2
Maximum peak current per phase [A]	2
Current limiter	Yes, adjustable (via potentiometer)
Measuring resistance [Ω]	0.11
Safety features	Short circuit Temperature Undervoltage Overcurrent
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Motor connector(s)	Pin header male (2.54mm)

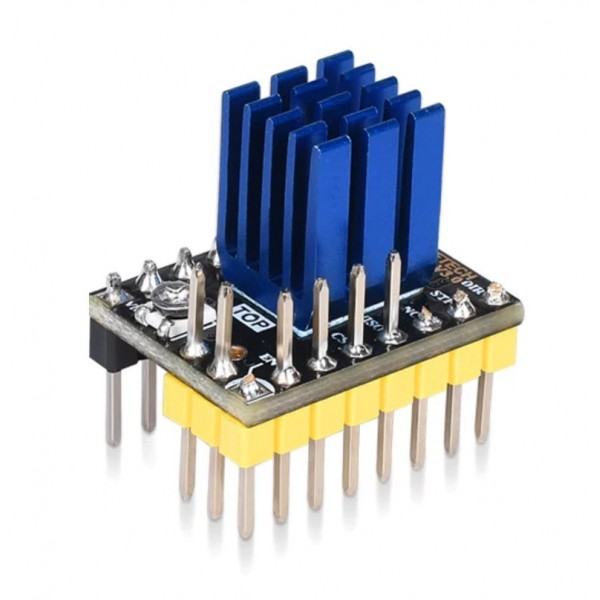

Package contents

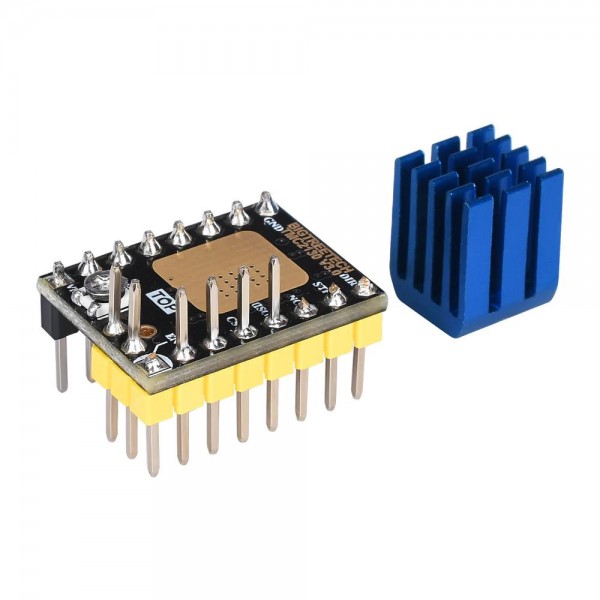

Package contents	1x TMC2130-V3.0 Stepper Motor Driver 1x Heatsink 4x DuPont Female Cables
