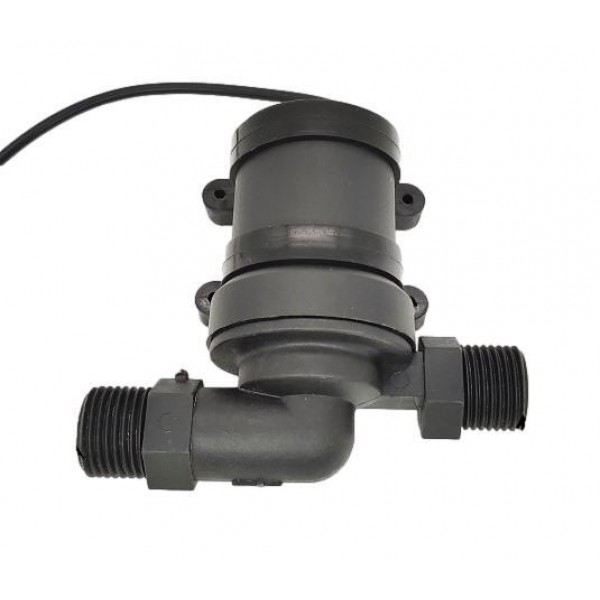

Brushless Water Pump Straight - 24V

Availability: Directly available from warehouse in Eindhoven
SKU: 005498

Based on 0 review(s) - Write a review

€13.50

Ex Tax: €11.16

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A small centrifugal pump that has a relatively long lifespan due to the brushless motor. This makes it well suitable for use as a circulation pump, for example. The built-in driver for the brushless motor makes it easy to connect by simply applying voltage.

Note: We cannot provide any warranty when this product is used with any liquid other than clean spring/tap water (non-potable).

Please login or register to review

Reviews Over Brushless Water Pump Straight - 24V

Average Rating:

This product has 0 review(s) in total.

Tags: Brushless Water Pump Straight - 24V , PUMP-3805-24 , Pumps

Specifications

General
Brand	No brand
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	90
Lifespan [h]	20000
Features	Motor driver Motor Pomp
General physical appearance
Main color	Black
Weight [g]	238
Dimension X [mm]	48 (excl. couplings) 100 (incl. couplings)
Dimension Y [mm]	48
Dimension Z [mm]	88
Mounting options	Mounting hole(s) (in rubber rings)
General electrical properties
Maximum supply voltage [V DC]	24
Minimum recommended supply current [A]	0.9
Maximum power [W]	20
Indication average current consumption [mA]	270 (@24V DC, no load)
Motor driver
Type	Driver
Supported motor type(s)	Brushless DC motor
Direction of rotation	Unidirectional
Actuator
Actuator type	Brushless DC motor
Pump
Pumping mechanism	Centrifugal
Maximum pump flow [L/min]	12
Maximum pump head [m]	6.0
Fluid connector
Coupling type(s)	G1/2" external thread
Flow orientation	Straight
Flow direction	Unidirectional
Material	POM
Suitable liquids/gasses	Clean water
Connectors
Motor connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	0.5 (±0.05)
Package contents
Package contents	1x Pump 2x Rubber mounting ring
