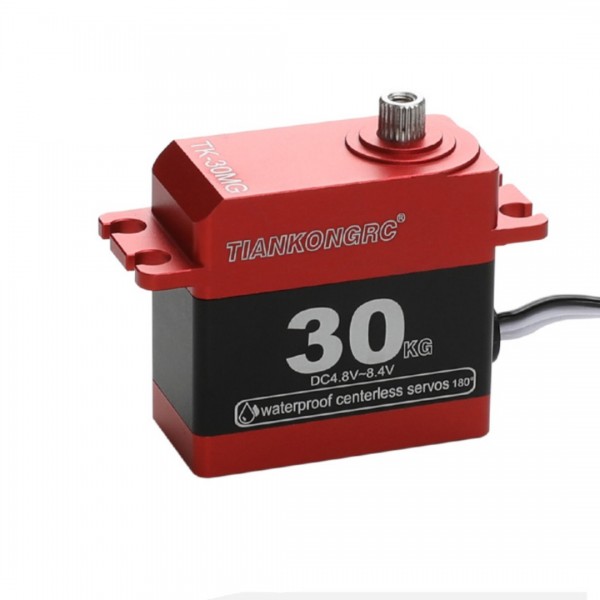

TK-30MG Waterproof Digital Servo - 30kg

Availability: Directly available from warehouse in Eindhoven
SKU: 006176

Based on 0 review(s) - Write a review

€22.00

Ex Tax: €18.18

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A powerful servo with high quality that is easy to control. It comes with a few pieces of plastic that you can mount on it, to which you can then mount other things. This servo is completely made of metal on the outside and is also extra waterproof.

Note: This servo can draw relatively high currents, especially with a load (up to approximately 4600mA at 8.4V at standstill). So choose a suitable power supply for the servo. It is not recommended to use the 5V pin of a microcontroller as power supply.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over TK-30MG Waterproof Digital Servo - 30kg

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006176_Data Sheet of TK-30MG Digital Servo Motor.pdf

Tags: TK-30MG Waterproof Digital Servo - 30kg , TK-30MG , Servomotors

Specifications

General
Brand	TianKongRC
Manufacturer model/SKU	TK-30MG
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	70
Features	Motor driver
General physical appearance
Main color	Red
Weight [g]	80
Dimension X [mm]	40
Dimension Y [mm]	21
Dimension Z [mm]	36
Material	Aluminum
Water and dust protection	IP66
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	4.3
General electrical properties
Minimum supply voltage [V DC]	4.8
Maximum supply voltage [V DC]	8.4
Minimum recommended supply current [A]	4.6
Minimum IO-pin input voltage [V]	3
Maximum IO-pin input voltage [V]	5
Communication
Hardware interface(s)	PWM
Actuator
Actuator type	Coreless DC motor
Rotational range	0 - 180°
Mechanical end-stops	No
Position feedback	No
Maximum holding torque [N.m]	3.2 (32.5kg.cm) (@8.4V) 2.8 (28.5kg.cm) (@4.8V)
Maximum speed [s/60°]	0.09 (@8.4V) 0.16 (@4.8V)
Gear material	Metal
Shaft
Shaft type	Spline 25T
Shaft length [mm]	4.5
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Wire/cable
Wire/cable length [m]	0.3
Pinout
Power supply pin	Inner white wire
Ground/min	Black wire
Data	Outer white wire
Package contents

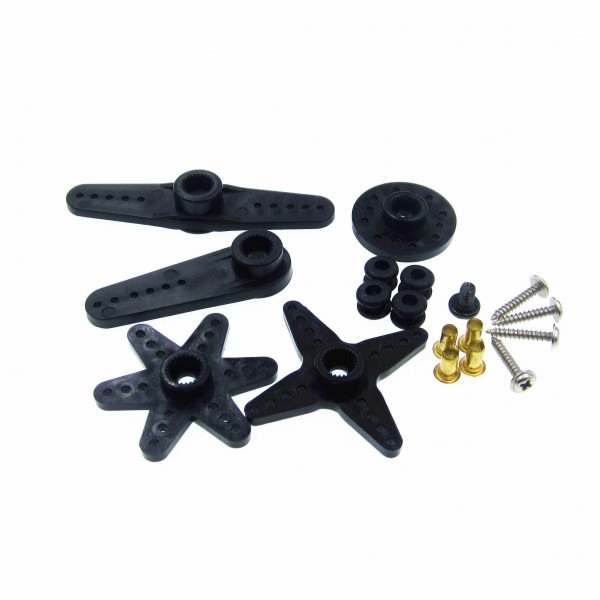

Package contents	1x Servo motor 1x Shaft accessories (see images) 1x Accessory mounting screw 4x Mounting screw 4x Insert for vibration absorber
