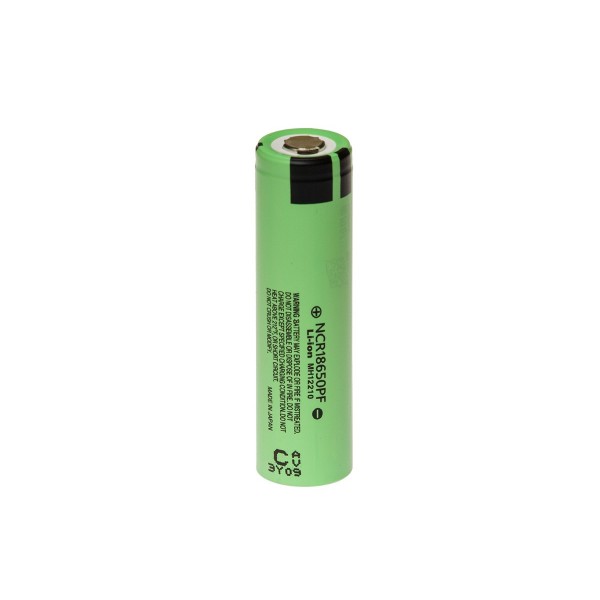

Panasonic 18650 Li-ion Battery - 2900mAh - 10A - NCR18650PF

These Panasonic Li-ion 18650 cells are of high quality and can be used in various applications.

Specifications:

• Capacity: 2900mAh
• Nominal voltage: 3.6V
• Charging voltage: 4.2V
• Maximum cell voltage: 4.2V
• Minimum cell voltage: 2.5V
• Maximum discharge current: 10A
• Maximum charging current: 1375mA
• Protection circuit: No (apply own protection circuit!)
• Diameter: 18mm
• Length: 65mm

Note: This battery is "bare" and does not contain protection against too high currents, deep discharge or too high a charging voltage. Purchase this battery only if you understand the potentially hazardous effects of Li-ion batteries!

For more information see the datasheet under the tab "Downloads".

Check the tab "Downloads" for more information and/or downloads.
