M5Stack ESP32 Downloader Kit - Programmer for ESP32 and ESP8266

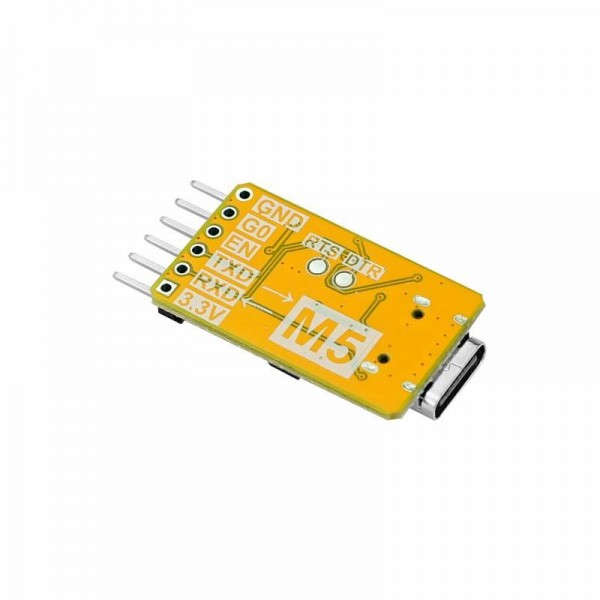

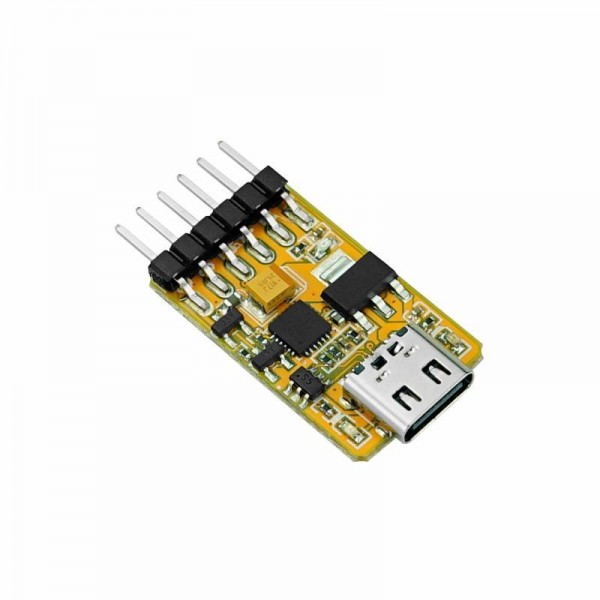

The ESP32 downloader kit from M5Stack is a USB to serial adapter module that is ideal for programming or debugging an ESP32 and ESP8266. In addition to the standard RX and TX pins, the module also has connections for GPIO 0 and the enable pin of the ESP32/ESP8266. This makes it possible to upload code automatically without manually connecting GPIO 0 to GND and then resetting the ESP32/ESP8266.

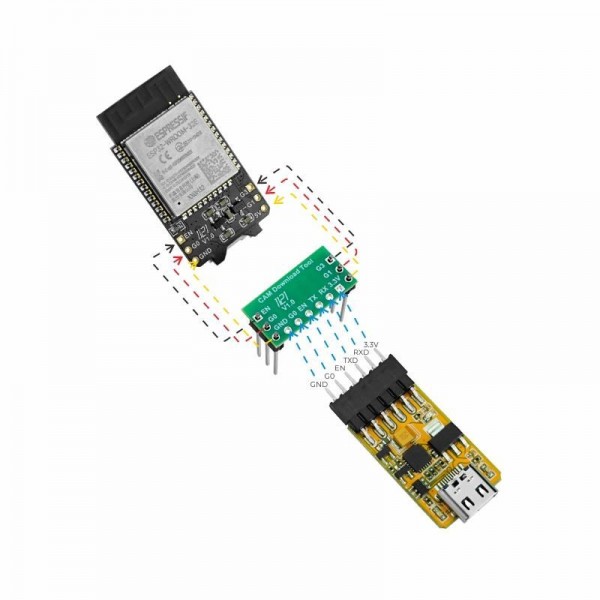

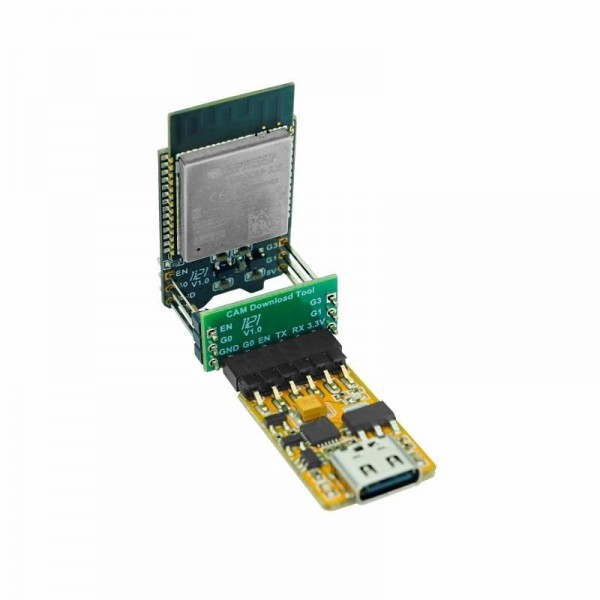

This module was developed by M5Stack to, for example, program the M5Stack DIY Camera Unit Kit or M5Stack M5Stamp Pico Mate, neither of which have a built-in USB to serial converter.

Specifications:

• USB to serial converter: CP2104 or CH9102F (drivers)
• Connector: USB-C female
• Baud rate: 300bps - 2Mbps
• Dimensions: 33 x 16 x 3mm

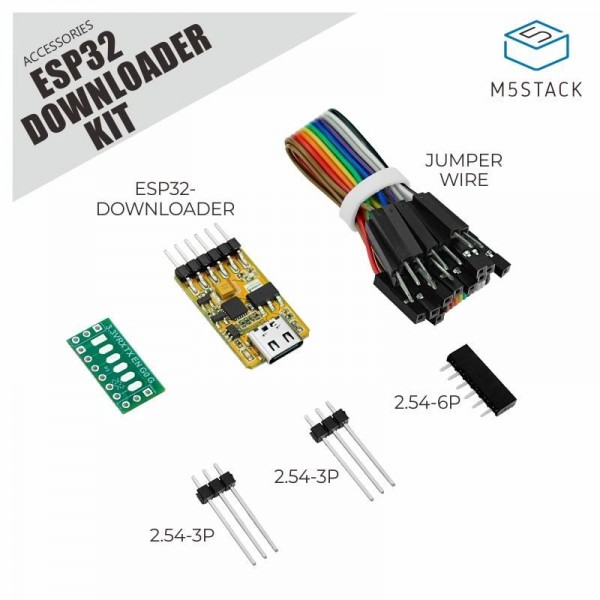

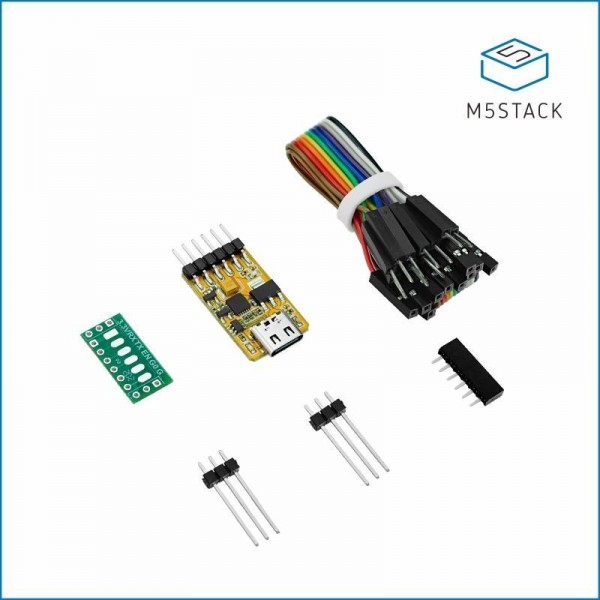

Package contents:

• 1x ESP32 downloader

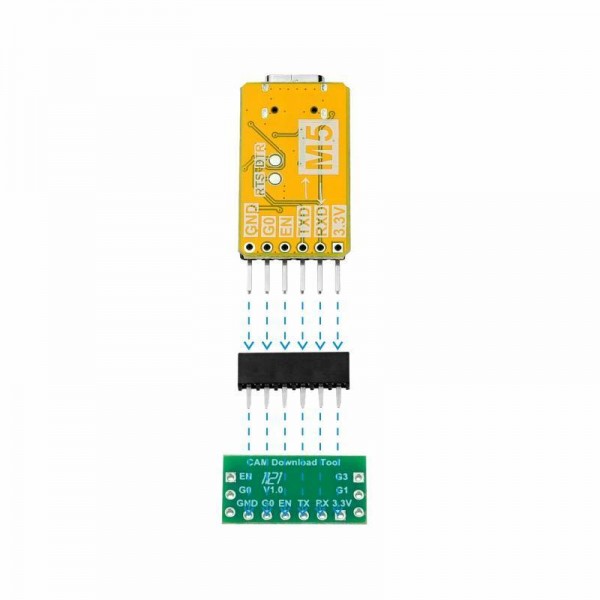

• 1x ESP32 CAM adapter PCB
• 1x DuPont male-female 10x1p connection cable
• 1x Female pin header 6p
• 2x Male pin header 3p - extra long

See the following page for more information: M5Stack ESP32 Downloader Kit.
