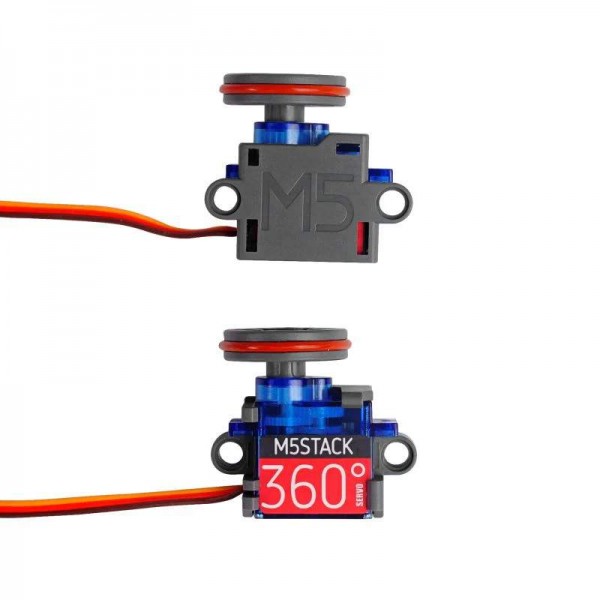

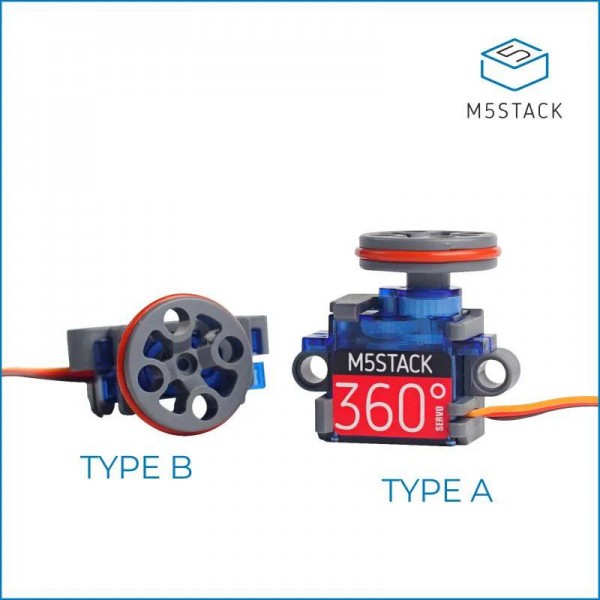

M5Stack Servo Kit 360°

M5Stack Servo Kit 360°
M5Stack Servo Kit 360°
M5Stack Servo Kit 360°
M5Stack Servo Kit 360°
M5Stack Servo Kit 360°
M5Stack Servo Kit 360°
M5Stack Servo Kit 360°
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004655
€13.50
Ex Tax: €11.16

A kit of M5Stack consisting of 2 servos and all kinds of (LEGO®) accessories. With this kit you can easily incorporate 2 servos into your LEGO®/M5Stack project.

For more information, see: M5Stack Servo Kit 180°/360°.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Servo Kit 360°

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU A076-C
Features Servo motor
General physical appearance
Main color Mixed
Weight [g] 9
(per servo, without accessories/clamps)
Dimension X [mm] 23
(per servo, without accessories/clamps)
Dimension Y [mm] 12
(per servo, without accessories/clamps)
Dimension Z [mm] 27
(per servo, without accessories/clamps)
Mounting options Mounting hole(s)
LEGO (compatible) holes
Form factor Set/kit
General electrical properties
Minimum supply voltage [V DC] 4.8
Maximum supply voltage [V DC] 6
Minimum recommended supply current [A] 0.8
Minimum IO-pin input voltage [V] 4.8
Maximum IO-pin input voltage [V] 6
Communication
Hardware interface(s) PWM
Actuator
Actuator type Brushed DC motor
Rotational range Continuous (no limit)
Position feedback No
Maximum holding torque [N.m] 0.17
(1.8kg.cm)
(@6V)
0.15
(1.6kg.cm)
(@4.8V)
Maximum speed [s/60°] 0.09
(@6.0V)
0.10
(@4.8V)
Gear material Plastic
Shaft
Shaft type Spline 21T
Shaft length [mm] 3
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Wire/cable
Wire/cable length [m] 0.05
(without extension cable)

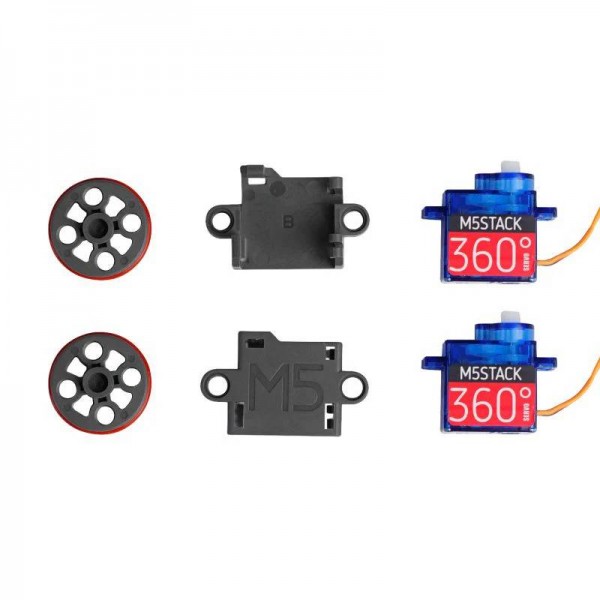

Package contents
Package contents 1x Servo motor
1x Shaft accessories (see images)
1x Accessory mounting screw
2x Mounting screw
4x Mounting screw
2x Servo motor
2x LEGO® compatible servo clamp
2x Servo extension cable (30cm)
2x Grove to servo adapter
2x Accessory mounting screw
2x Shaft accessories (see images)
2x Axle wheel
4x Mounting screw
2x M2x4 bolt
4x LEGO® connector
2x Axle connector
1x 5x7 frame
