  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003402
€27.50
Ex Tax: €22.73

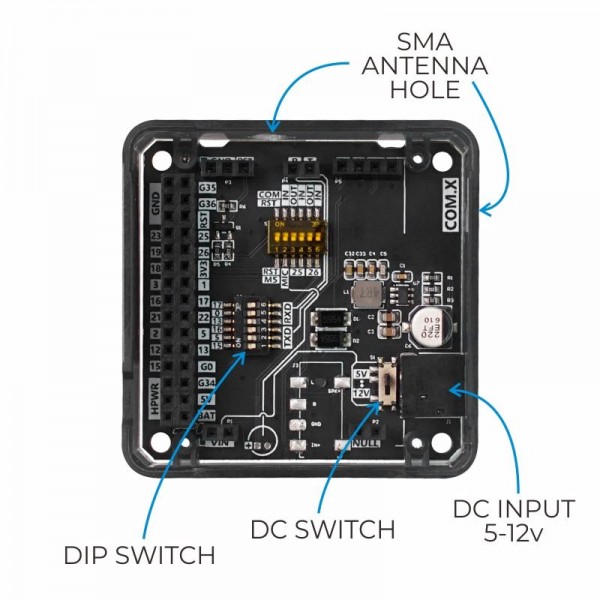

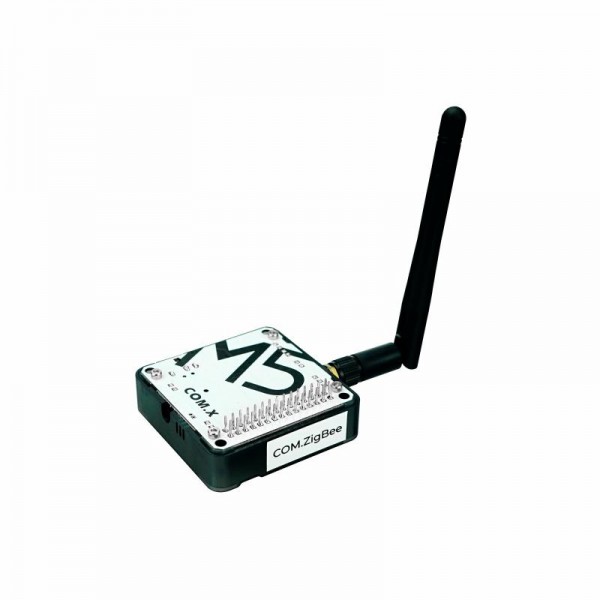

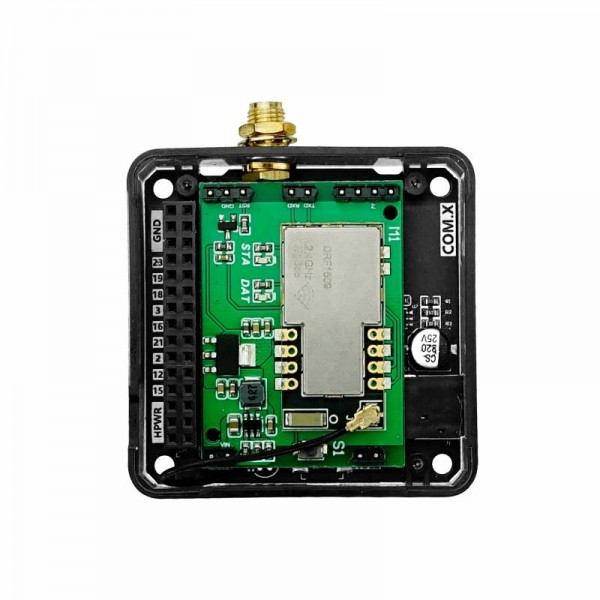

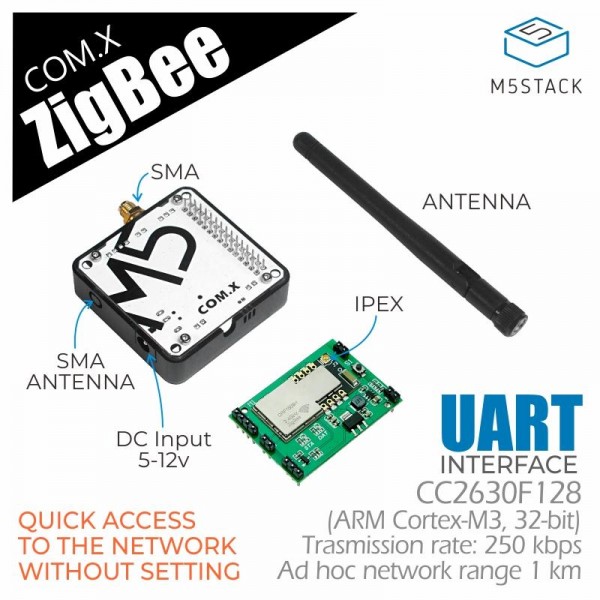

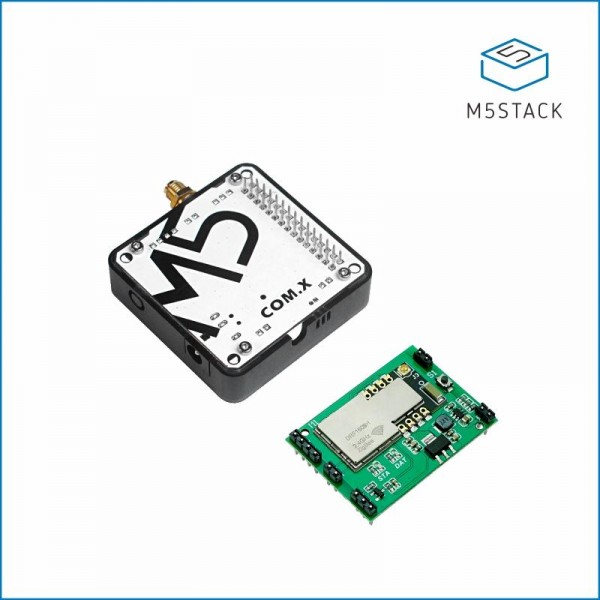

This is a ZigBee module from M5Stack that is suitable for use with the M5Core(2).

Specifications:

  • Supply voltage: 5-12V DC (via DC jack)
  • Signal voltage: 3.3V
  • ZigBee transceiver:
    • Chip: CC2630F128
    • Frequency: 2.4GHz
    • Maximum communication distance: 1km (ideal conditions)
    • Maximum transfer rate: 250Kbps
    • Communication: UART (RX/TX)
    • Baud rate: 38400
    • Antenna: SMA
  • Dimensions: 54 x 54 x 13.2 (without antenna)

Package contents:

  • 1x M5Stack COM ZigBee Module
  • 1x SMA antenna

See the following page for more information: M5Stack COM.ZigBee Module.
