M5Stack Stepmotor Driver Module V1.1 - 3 Channels - for M5Core

Availability: Directly available from warehouse in Eindhoven
SKU: 005155

Based on 0 review(s) - Write a review

€26.00

Ex Tax: €21.49

Qty

Add to Cart

Add to wishlist

Only 8 pieces in stock

Description
Reviews

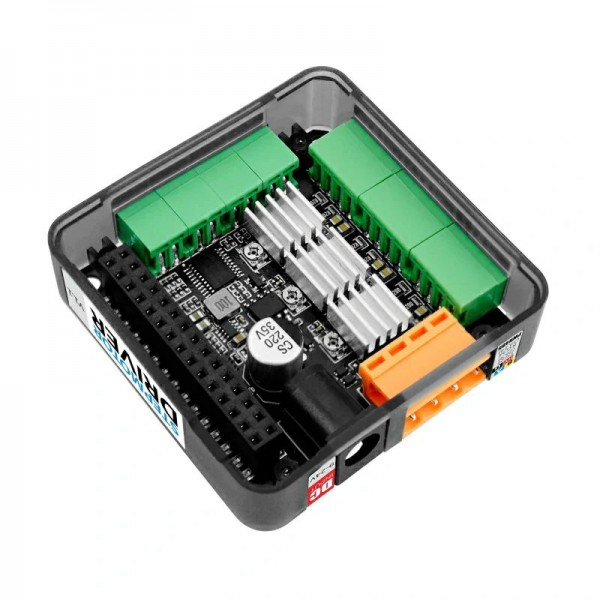

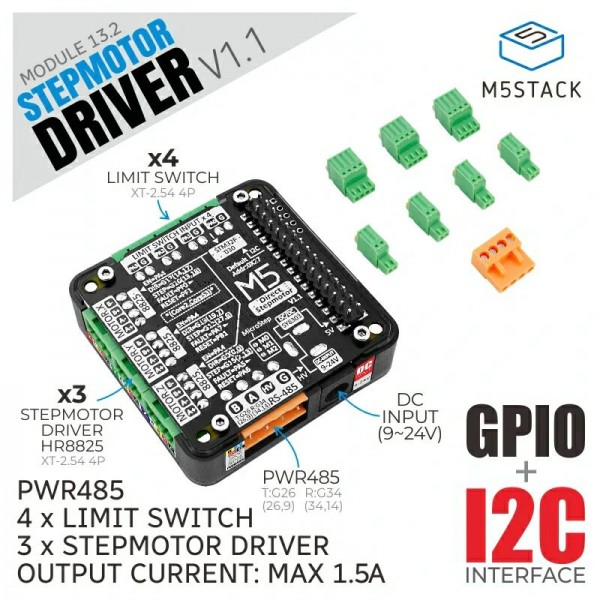

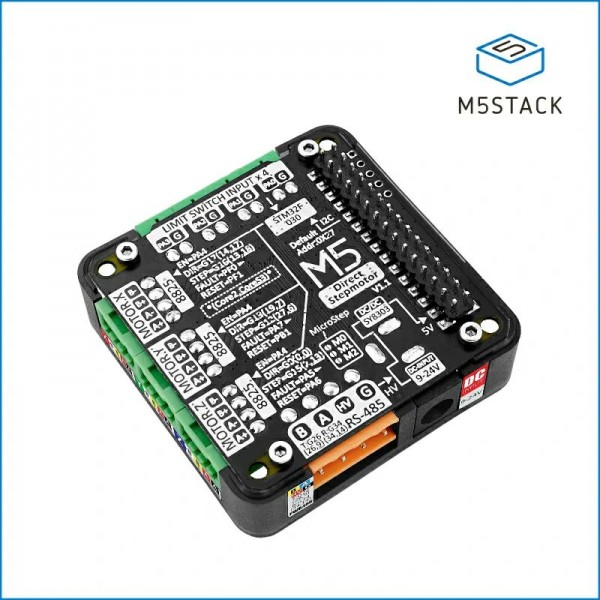

This is a stepper motor module from M5Stack for the M5Core with three HR8825 stepper motor drivers and the option to connect four limit switches. This module has adjustable current per driver and supports microstepping. The module communicates via I2C with an internal microcontroller (STM32F0) which then controls the three stepper motor drivers. Finally, the module also has a built-in RS485 transceiver that communicates with the M5Core.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Stepmotor Driver Module V1.1 - 3 Channels - for M5Core

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack Stepmotor Driver Module V1.1 - 3 Channels - for M5Core , M5STACK-M039-V11 , Modules

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	M039-V11
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Motor driver
General physical appearance
Main color	Black
Weight [g]	25
Dimension X [mm]	54
Dimension Y [mm]	54
Mounting options	Pin headers Mounting hole(s)
Form factor	Module (general) M5Stack Module
General electrical properties
Minimum supply voltage [V DC]	9
Maximum supply voltage [V DC]	24
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C RS485
Isolated communication	No
RS485 chip	SP3485
Number of RS485 channels	1
Motor driver
Type	Driver
Driver chip	HR8825
Supported motor type(s)	Stepper motor
Number of stepper motor channels	3
Microstepping	1/2 1 (full step) 1/4 1/8 1/16 1/32
Minimum motor supply voltage [V DC]	9
Maximum motor supply voltage [V DC]	24
Maximum continuous RMS current per phase [A]	1.5
Current limiter	Yes, adjustable
Safety features	Temperature Undervoltage Overcurrent
Connectors

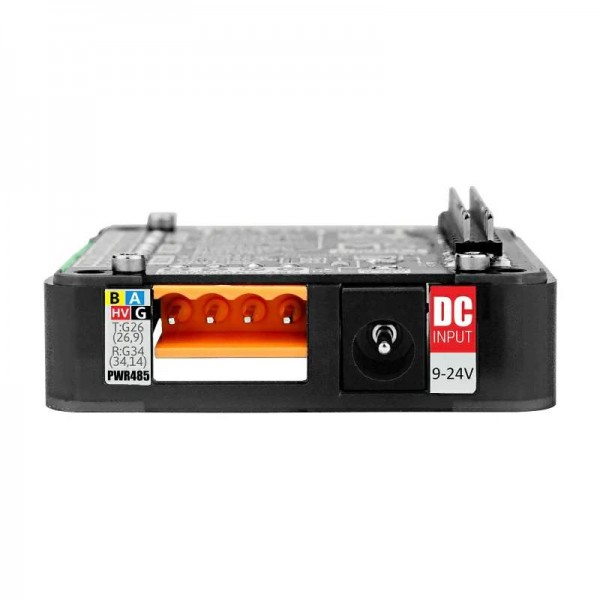

Power supply connector(s)	Pin header male (2.54mm) Pin header female (2.54mm) Detachable block male (HT3.96) DC-jack 5.5/2.1mm female
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm) Detachable block male (HT3.96) Detachable block male (KF2EDGR-2.54)

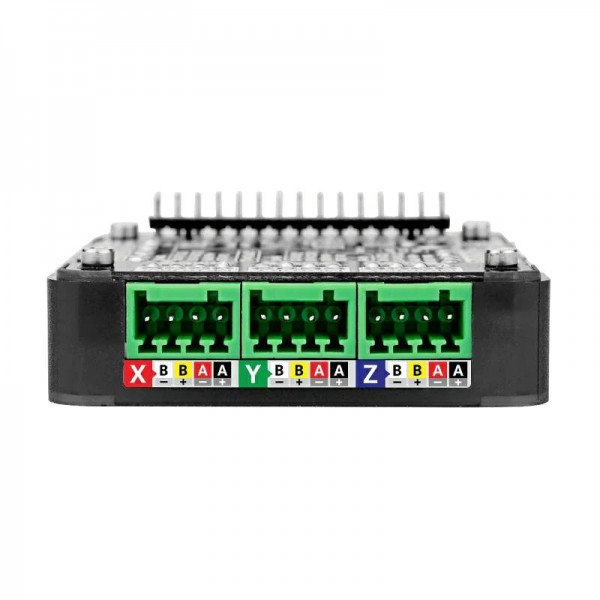

Motor connector(s)	Detachable block male (KF2EDGR-2.54)

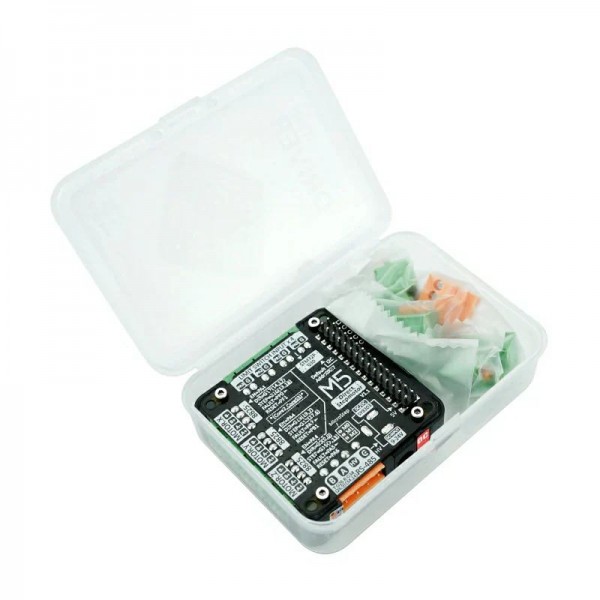

Package contents
Package contents	1x StepMotor Driver V1.1 4x Detachable clamp terminal 2p 3x Detachable clamp terminal 4p 1x Detachable screw terminal (HT3.96)
