Name: M5STACK M5NanoC6 - ESP32-C6 IoT Development Board - M5STACK-C125
Brand: M5Stack
SKU: 006046
Price: 8 EUR
Availability: InStock

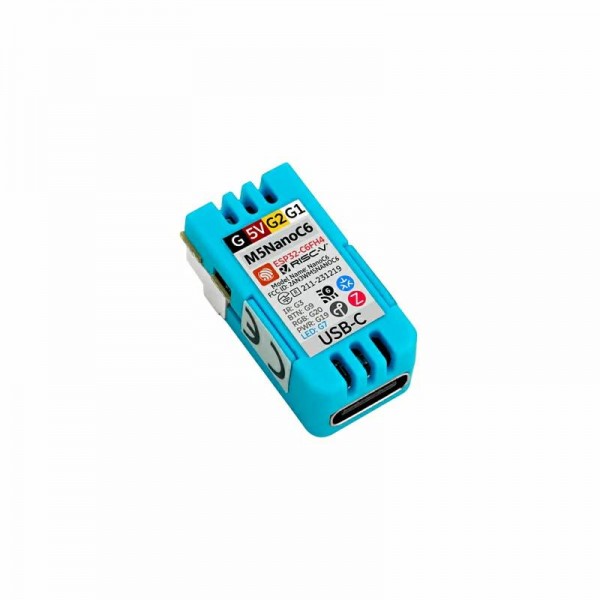

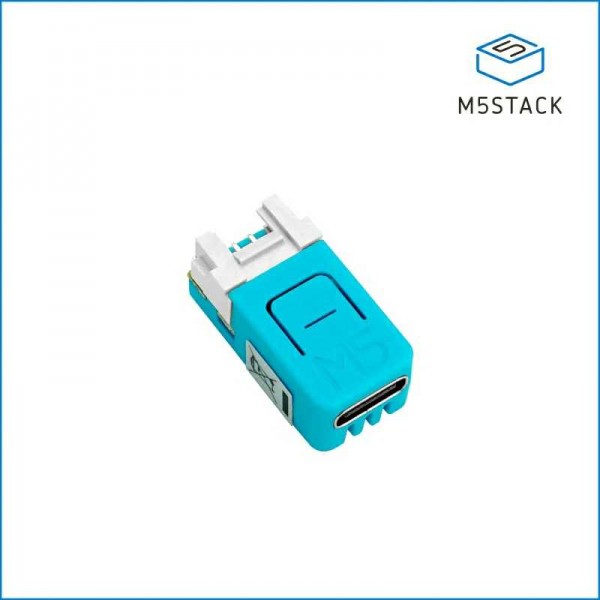

M5STACK M5NanoC6 - ESP32-C6 IoT Development Board

Availability: Directly available from warehouse in Eindhoven
SKU: 006046

Based on 0 review(s) - Write a review

€8.00

Ex Tax: €6.61

10 or more €7.75

20 or more €7.50

50 or more €7.25

100 or more €7.00

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

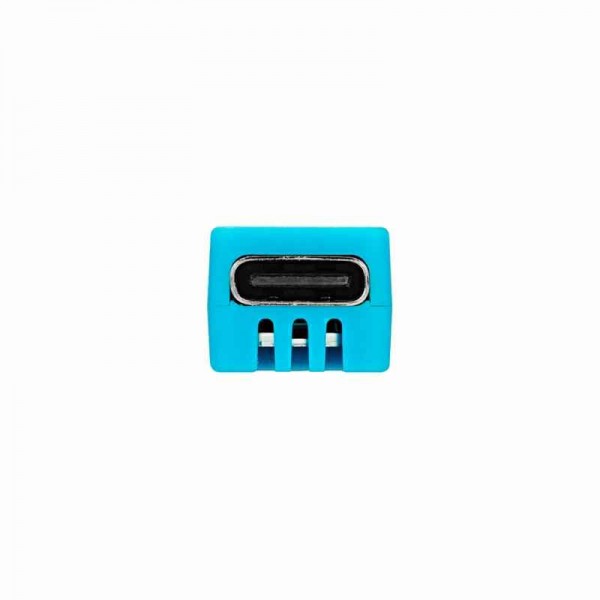

This development board from M5STACK, with ESP32-C6 microcontroller chip, supports Wi-Fi, Bluetooth, Zigbee and Thread. The board has a USB-C connector with which it can be programmed and/or powered (cable not included). The board can be programmed with Arduino, MicroPython and Espressif IDF.

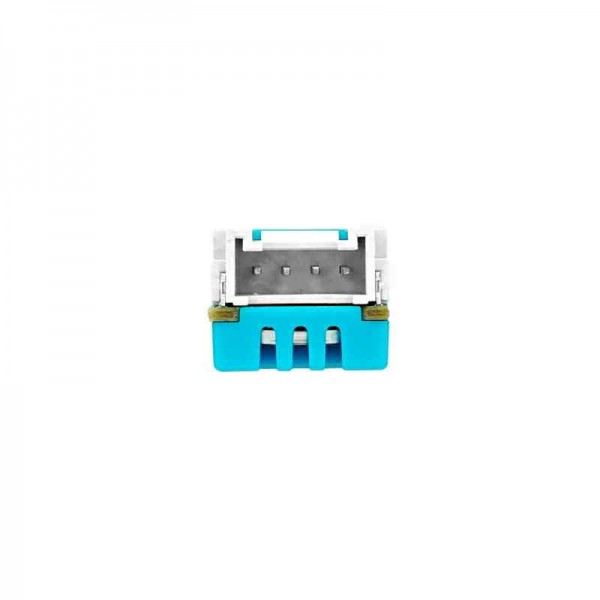

The Grove interface offers the possibility to expand this module with various M5STACK modules.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5STACK M5NanoC6 - ESP32-C6 IoT Development Board

Average Rating:

This product has 0 review(s) in total.

Tags: M5STACK M5NanoC6 - ESP32-C6 IoT Development Board , M5STACK-C125 , With Bluetooth

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	C125
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Microcontroller Enclosure Programmable button(s) Digital LED(s)
General physical appearance
Main color	Blue
Weight [g]	3
Dimension X [mm]	24
Dimension Y [mm]	12
Dimension Z [mm]	9.5
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Maximum IO-pin source current [mA]	40
Maximum IO-pin sink current [mA]	28
MCU/SoC
Manufacturer	Espressif
Chip series	ESP32-C6
Maximum clock frequency [MHz]	240
Number of cores	1
Internal memory
SRAM [KB]	512
PSRAM [MB]	0
Flash memory [MB]	4
EEPROM type	Emulated
Communication
Hardware interface(s)	I2C I2S Native USB UART PWM ADC GPIO USB CDC
Number of IO-pins	2
Maximum available hardware PWM channels	2
Maximum available analog input pins (ADC)	2
Maximum available analog output pins (DAC)	0
Maximum available hardware UART interfaces	1
Maximum available hardware I2C interfaces	1
Maximum available hardware SPI interfaces	0
USB to serial converter	Integrated into microcontroller
Wireless communication
Interface(s)	Wi-Fi Bluetooth Zigbee IR Thread
Wi-Fi chip/SoC	ESP32-C6
Wi-Fi frequency [GHz]	2.4
Bluetooth chip/SoC	ESP32-C6
Bluetooth version	5.3
Supported Bluetooth standard(s)	LE
Zigbee chip/SoC	ESP32-C6
Zigbee frequency [GHz]	2.4
IR receiver/transmitter	Transmitter
LED
LED (driver) chip	WS2812B
LED color	RGB
Connectors

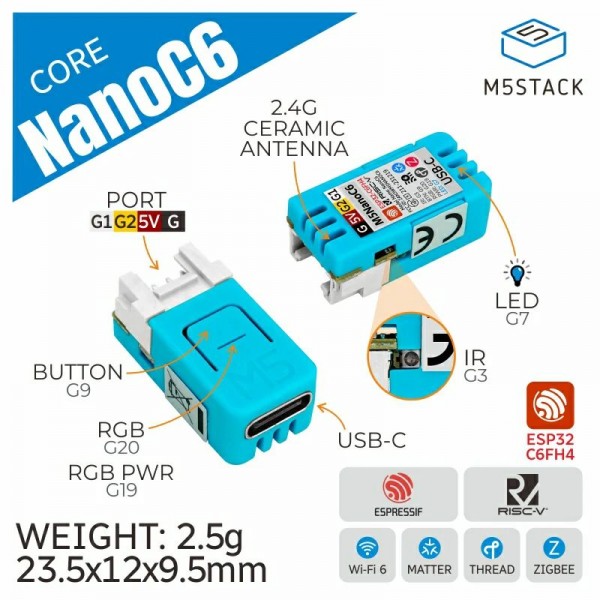

Power supply connector(s)	HY2.0 (Grove) male USB-C female (note: only power the module via one connector at a time)
IO-connector(s)	HY2.0 (Grove) male USB-C female
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Zigbee antenna connector	Built-in antenna
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x M5NanoC6
