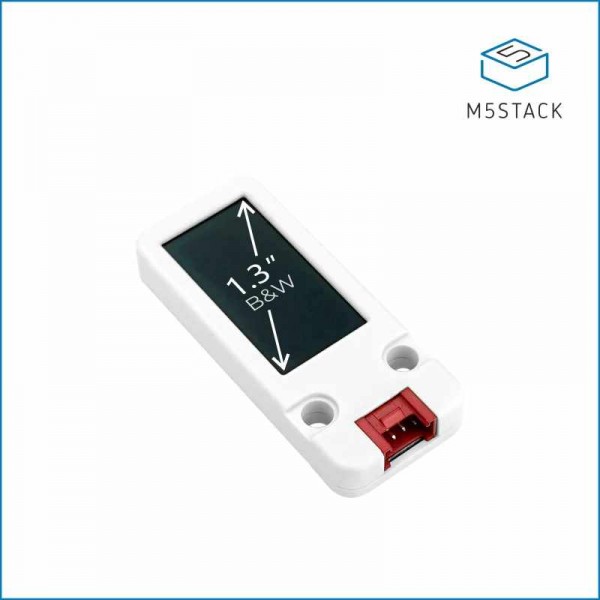

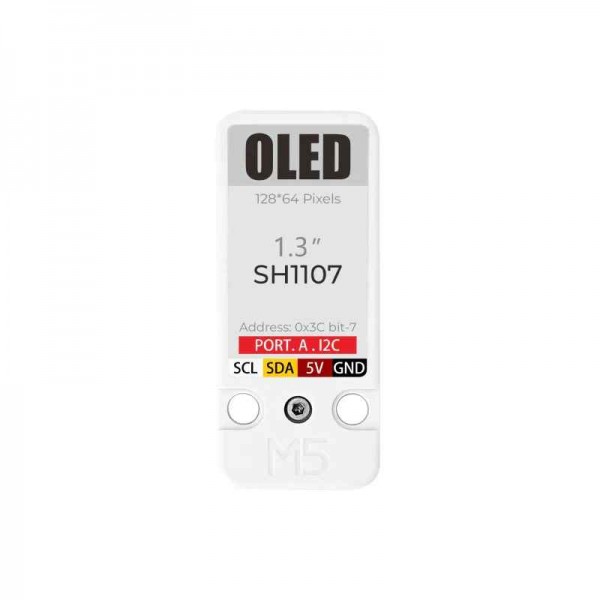

M5Stack 1.3 Inch Oled Display Unit - I2C

M5Stack 1.3 Inch Oled Display Unit - I2C
M5Stack 1.3 Inch Oled Display Unit - I2C
M5Stack 1.3 Inch Oled Display Unit - I2C
M5Stack 1.3 Inch Oled Display Unit - I2C
M5Stack 1.3 Inch Oled Display Unit - I2C
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004498
€15.50
Ex Tax: €12.81

There is no product description available yet.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack 1.3 Inch Oled Display Unit - I2C

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU U119
Features Display
General physical appearance
Main color White
Weight [g] 10
Dimension X [mm] 56
Dimension Y [mm] 24
Mounting options LEGO (compatible) holes
Magnets
Form factor Module (general)
M5Stack Unit
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x3C
Display
Type OLED
Driver SH1107
Screen diagonal [inch] 1.3
Number of pixels long side 128
Number of pixels short side 64
Display shape Rectangular
Pixel colors White
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Package contents
Package contents 1x Display module
1x Grove female cable
