Name: M5Stack DAC2 Unit - GP8413 - I2C - M5STACK-U012-B
Brand: M5Stack
SKU: 006059
Price: 9.5 EUR
Availability: InStock

M5Stack DAC2 Unit - GP8413 - I2C

Based on 0 review(s) - Write a review

€9.50

Ex Tax: €7.85

Qty

Add to Cart

Add to wishlist

Only 6 pieces in stock

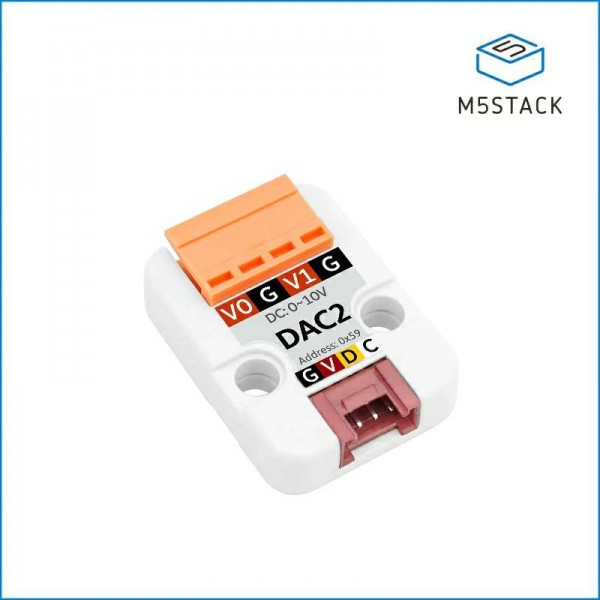

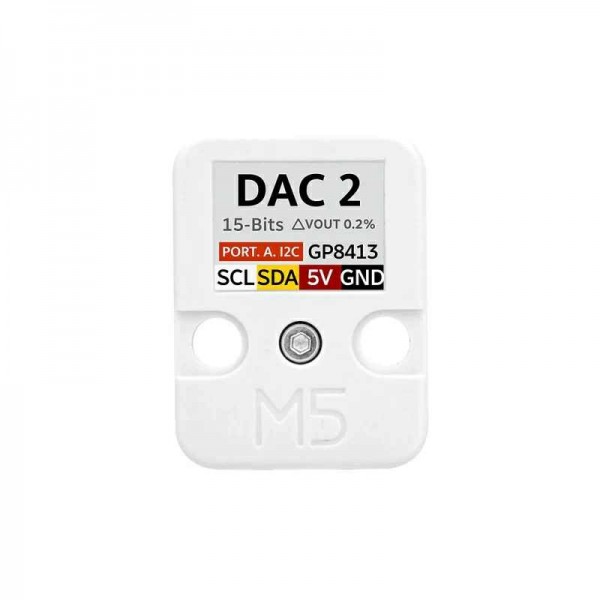

The DAC2 Unit is a DAC (Digital to Analog Converter) module. You can set an analog signal on the output that can be programmed via I2C.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: M5Stack DAC2 Unit - GP8413 - I2C , M5STACK-U012-B , Unit

General
Brand	M5Stack
Manufacturer model/SKU	U012-B
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Enclosure
General physical appearance
Main color	White
Weight [g]	6
Dimension X [mm]	32
Dimension Y [mm]	24
Dimension Z [mm]	8
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C DAC
DAC chip	GP8413
DAC type	General purpose
Maximum available analog output pins (DAC)	2
DAC resolution [bit]	15
Maximum DAC output voltage [V]	10
Default I2C address	0x59
Adjustable I2C address	Yes (via resistor modification)
Built-in pull-up resistor(s) [kΩ]	10
Connectors

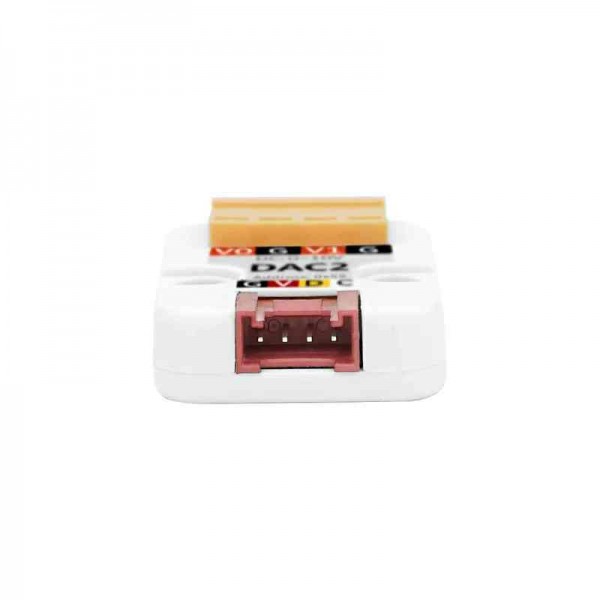

Power supply connector(s)	HY2.0 (Grove) male

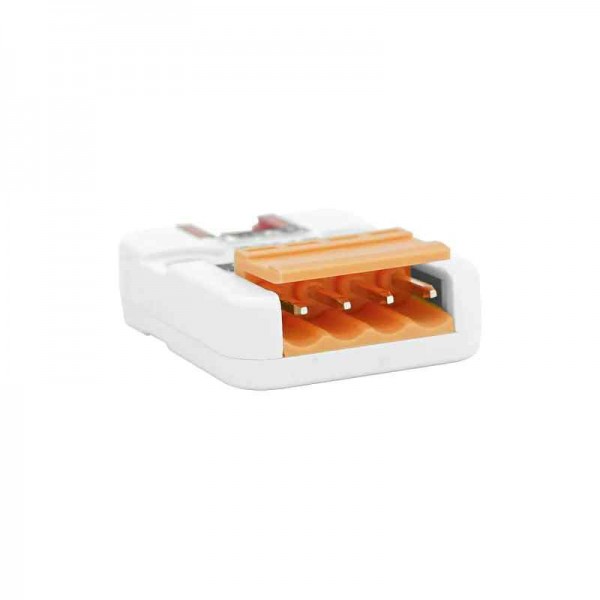

IO-connector(s)	HY2.0 (Grove) male Detachable block male (HT3.96)
Enclosure
Material	Polycarbonate (PC)
Package contents
Package contents	1x DAC2 Unit 1x Detachable screw terminal (HT3.96)
