M5Stack Ext Encoder Unit

Availability: Directly available from warehouse in Eindhoven
SKU: 005131

Based on 0 review(s) - Write a review

€8.00

Ex Tax: €6.61

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

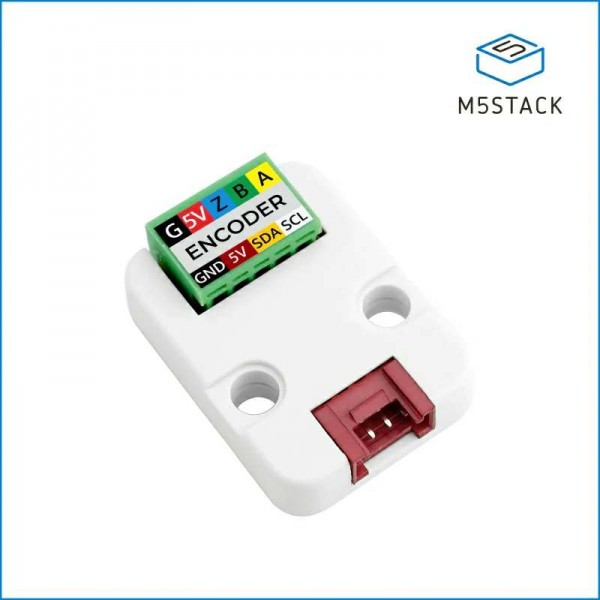

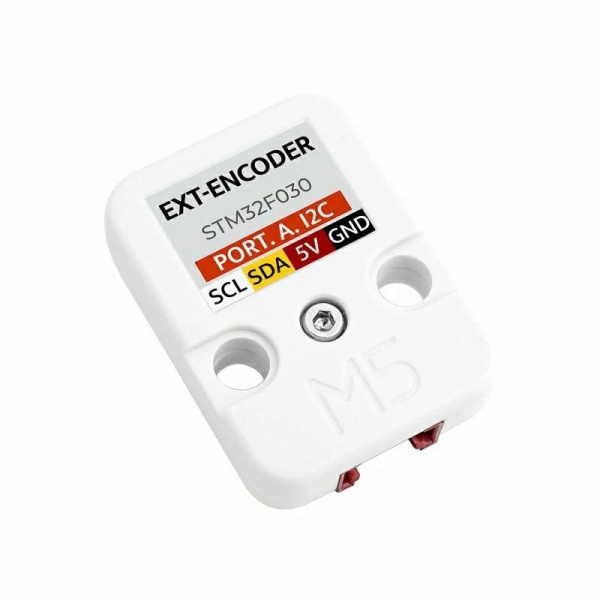

The Ext Encoder Unit from M5Stack is a module to which an external rotary encoder can be connected. This module supports AB/ABZ signal input which can then be read out via I2C by means of a built-in microcontroller (STM32F030).

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Ext Encoder Unit

Average Rating:

This product has 0 review(s) in total.

Tags: M5Stack Ext Encoder Unit , M5Stack-U161 , Unit

Specifications

General
Brand	M5Stack
Manufacturer model/SKU	U161
General physical appearance
Main color	White
Weight [g]	5

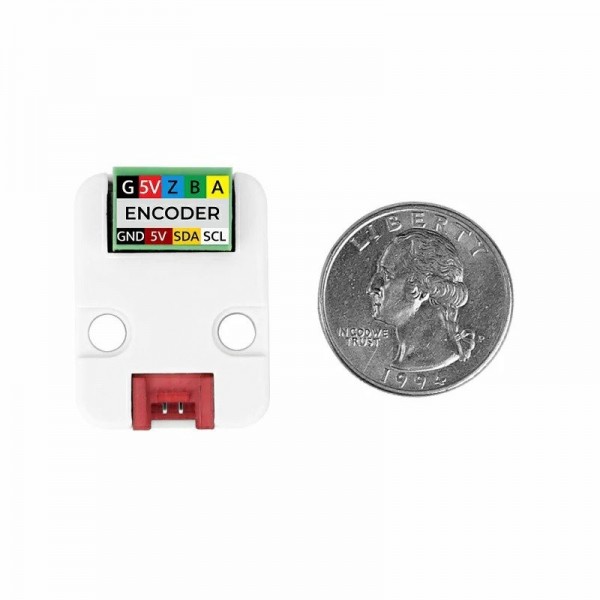

Dimension X [mm]	32
Dimension Y [mm]	24
Dimension Z [mm]	8
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	3.6
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x59
Adjustable I2C address	Yes
Built-in pull-up resistor(s) [kΩ]	10
Connectors

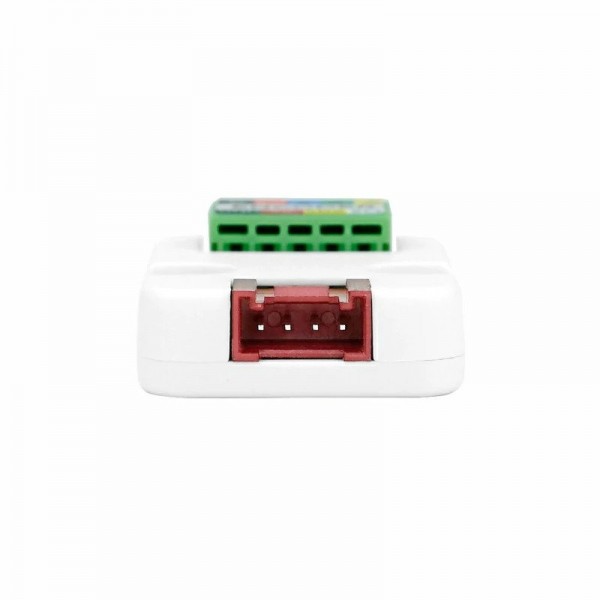

Power supply connector(s)	HY2.0 (Grove) male

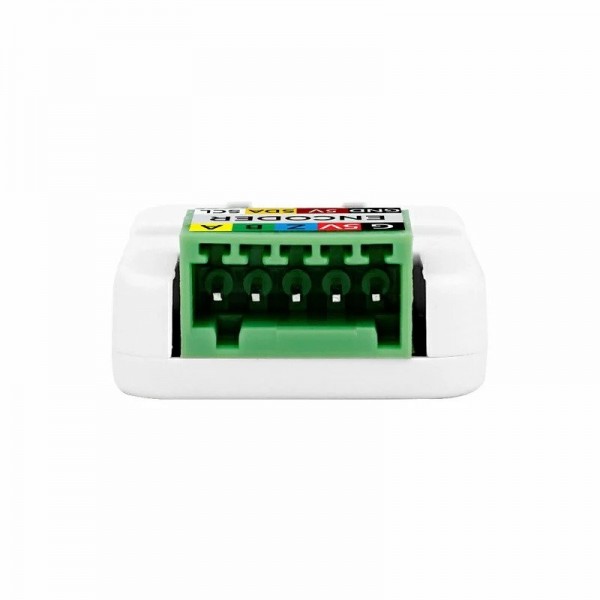

IO-connector(s)	Screw terminal HY2.0 (Grove) male Detachable block male (KF2EDGR-2.54)
Package contents

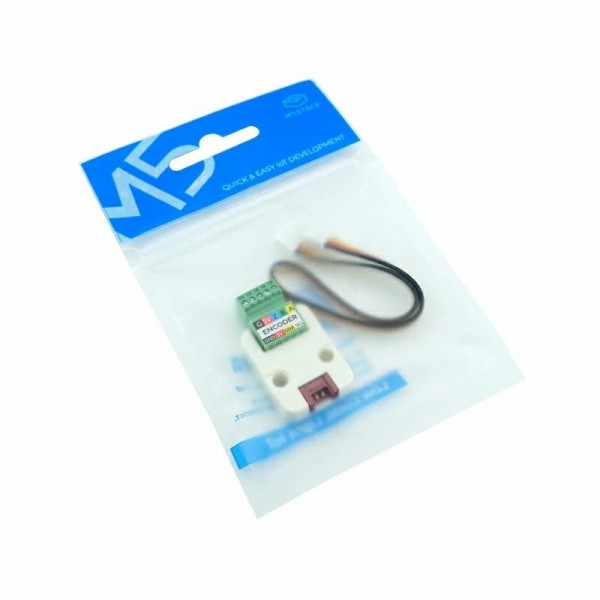

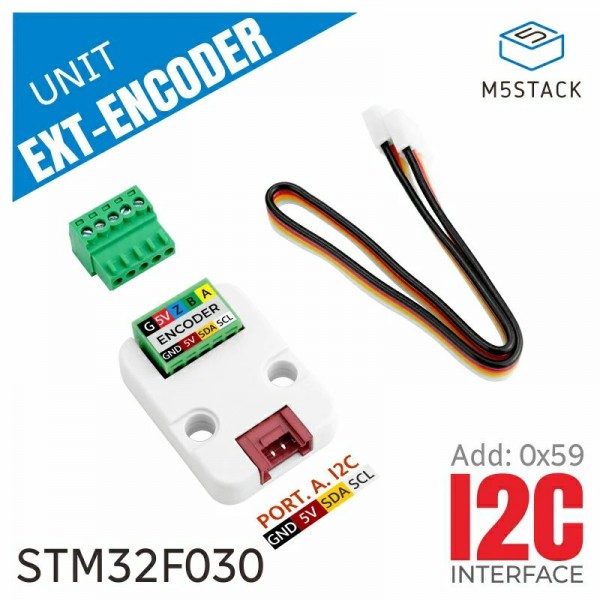

Package contents	1x Ext Encoder unit 1x Grove female cable 1x Detachable screw terminal
