Name: Seeed Studio SenseCAP T1000-A - LoRaWAN Location Tracker - SEEED-114993073
SKU: 005670
Price: 47.5 EUR
Availability: InStock

Seeed Studio SenseCAP T1000-A - LoRaWAN Location Tracker

Availability: Directly available from warehouse in Eindhoven
SKU: 005670

Based on 0 review(s) - Write a review

€47.50

Ex Tax: €39.26

Available Options

Terms

I am aware that the right to return is void if the seal is broken.

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

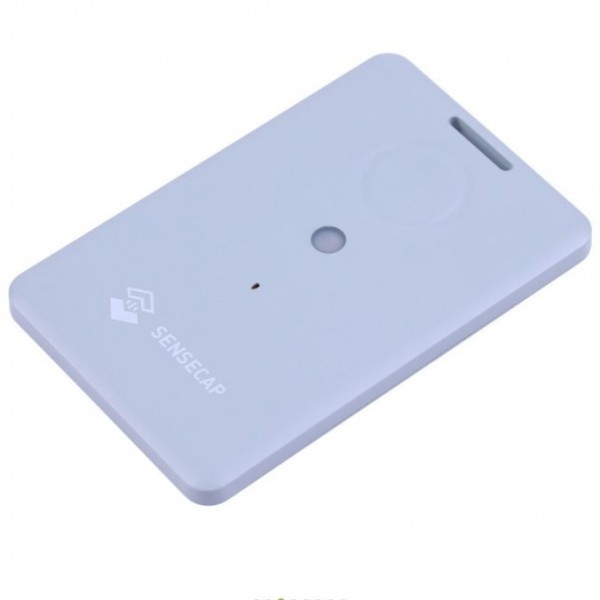

This compact SenseCAP GNSS tracker from Seeed Studio can determine its exact position both indoors (via Wi-Fi and Bluetooth) and outdoors (via GNSS), and transmit over long distances via LoRaWAN. In addition, this A version also has a light, temperature and acceleration sensor. The tracker is easy to configure with the SenseCAP Mate app and built-in multifunction button. Thanks to the rechargeable Lithium battery and low power consumption, the tracker has a long battery life.

Note: This product comes with a free 90-day subscription. If the sealed package has been opened, we cannot check whether it has been activated. This product cannot therefore be returned if the packaging is opened or the seal is broken.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Seeed Studio SenseCAP T1000-A - LoRaWAN Location Tracker

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005670_SenseCAP_Tracker_T1000_Datasheet.pdf

Manual: 005670_SenseCAP_Tracker_T1000-AB_User_Guide.pdf

Tags: Seeed Studio SenseCAP T1000-A - LoRaWAN Location Tracker , SEEED-114993073 , SenseCAP

Specifications

General
Brand	Seeed Studio
Manufacturer model/SKU	T1000-A
Norm conformity	RoHS CE FCC
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	60
Features	Temperature sensor Light sensor Enclosure Battery Acceleration sensor Programmable button(s) LED
General physical appearance
Main color	Gray/silver
Weight [g]	37

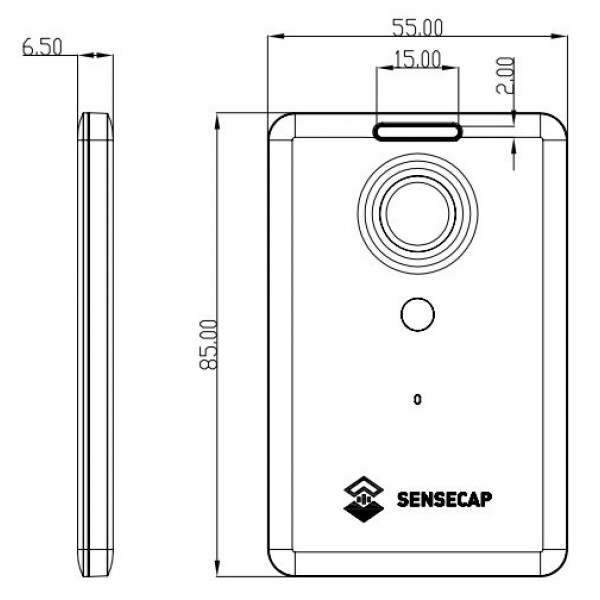

Dimension X [mm]	85
Dimension Y [mm]	55
Dimension Z [mm]	6.5
Water and dust protection	IP65
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	4.7
Maximum supply voltage [V DC]	5.5
Wireless communication
Interface(s)	GNSS Wi-Fi Bluetooth LoRa
Bluetooth version	5.1
Supported GNSS systems	GPS Beidou GLONASS Galileo QZSS
Maximum GNSS position accuracy [m]	2.5
LoRa frequency [MHz]	Dependent on region 864/865/868/915/920/923
Temperature sensor
Minimum measuring range [°C]	-20
Maximum measuring range [°C]	60
Smallest resolution [°C]	0.1
Accuracy [±°C]	1.0
Light sensor
Measurable light	Visible
Light sensor type	Light intensity
Acceleration sensor
Degrees of freedom (DOF)	3
Battery
Chemistry	Li-Po
Rechargeable	Yes
Capacity [mAh]	700
Connectors
Wi-Fi/Bluetooth antenna connector	Built-in antenna
LoRa antenna connector	Built-in antenna
GNSS antenna connector	Built-in antenna
Enclosure
Material	Plastic (unknown material)
Package contents

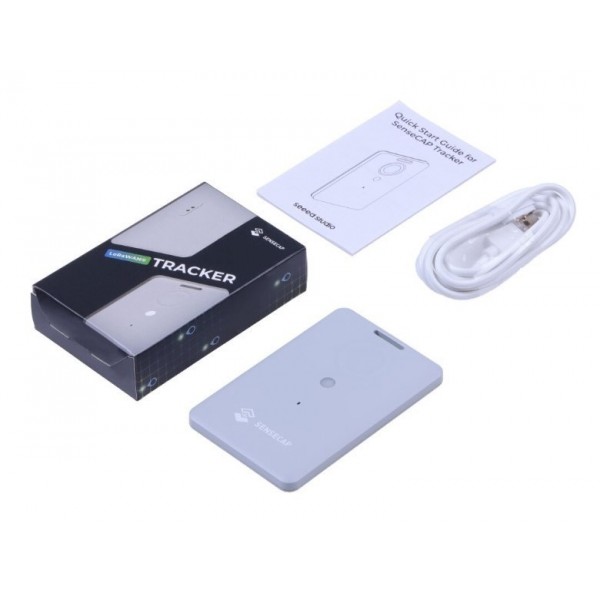

Package contents	1x T1000-A Tracker 1x USB-A - Pogo charging cable 1m 1x Quick start guide
