Seeed Studio SenseCAP T1000-B - LoRaWAN Location Tracker
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005660
€38.00
Ex Tax: €31.41
Your shopping cart is empty!

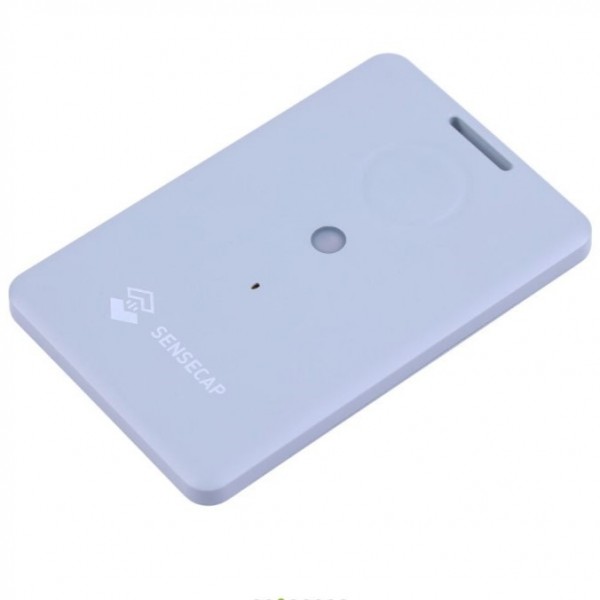

This compact SenseCAP GNSS tracker from Seeed Studio can determine its exact location both indoors (via Wi-Fi and Bluetooth) and outdoors (via GNSS), and transmit this information over long distances via LoRaWAN. The tracker is easy to configurere with the SenseCAP Mate app and built-in multifunctional button. A rechargeable Lithium battery and low power consumption give the tracker a long battery life.
Note: This T1000-B version does not include the temperature, light, and acceleration sensors mentioned in the datasheet and wiki.
Note: This product comes with a free 90-day subscription. If the sealed package has been opened, we cannot check whether it has been activated. This product cannot therefore be returned if the packaging is opened or the seal is broken.
See the following page for more information: Wiki
Check the tab "Downloads" for more information and/or downloads.
This product has 1 review(s) in total.
General | |
Brand | Seeed Studio |
Manufacturer model/SKU | T1000-B |
Norm conformity | RoHS CE FCC |
Minimum operating humidity [%R.H.] | 5 |
Maximum operating humidity [%R.H.] | 95 |
Minimum operating temperature [°C] | -20 |
Maximum operating temperature [°C] | 60 |
Features | Enclosure Battery Programmable button(s) LED |
General physical appearance | |
Main color | Gray/silver |
Weight [g] | 37 |

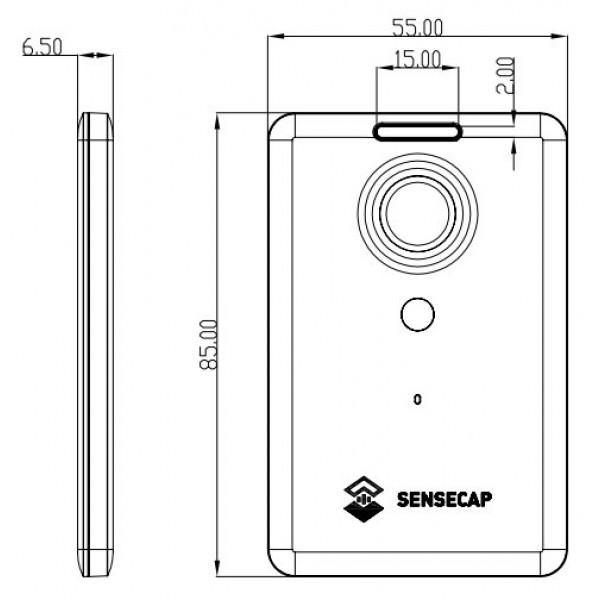

Dimension X [mm] | 85 |
Dimension Y [mm] | 55 |
Dimension Z [mm] | 6.5 |
Water and dust protection | IP65 |
Form factor | Module (general) |
General electrical properties | |
Minimum supply voltage [V DC] | 4.7 |
Maximum supply voltage [V DC] | 5.5 |
Wireless communication | |
Interface(s) | GNSS Wi-Fi Bluetooth LoRa |
Bluetooth version | 5.1 |
Supported GNSS systems | GPS Beidou GLONASS Galileo QZSS |
Maximum GNSS position accuracy [m] | 2.5 |
LoRa frequency [MHz] | Dependent on region 864/865/868/915/920/923 |
Battery | |
Chemistry | Li-Po |
Rechargeable | Yes |
Capacity [mAh] | 700 |
Connectors | |
Wi-Fi/Bluetooth antenna connector | Built-in antenna |
LoRa antenna connector | Built-in antenna |
GNSS antenna connector | Built-in antenna |
Enclosure | |
Material | Plastic (unknown material) |
Package contents | |

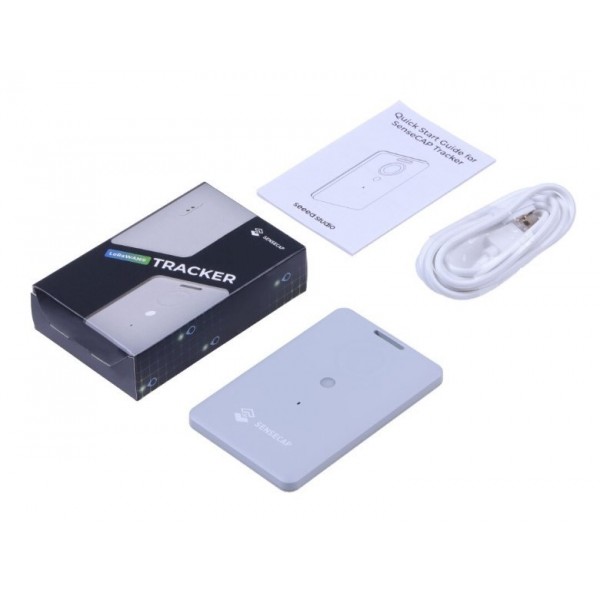

Package contents | 1x T1000-B Tracker 1x USB-A - Pogo charging cable 1m 1x Quick start guide |
