Sonoff MINI R4 Extreme - Wi-Fi Switch

Availability: Directly available from warehouse in Eindhoven
SKU: 005037

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

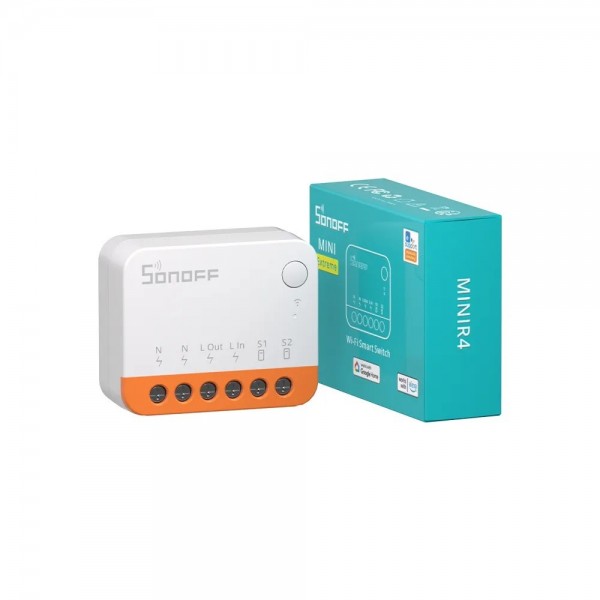

The Sonoff MINI R4 is an extremely small Wi-Fi switch that fits easily into most EU-type junction boxes.

It can be controlled with Android or iOS with the eWeLink app. In addition, it is also compatible with other home automation platforms such as Home Assistant, Amazon Alexa, Google Assistant, IFTTT and Google Nest.

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Sonoff MINI R4 Extreme - Wi-Fi Switch

Average Rating:

This product has 0 review(s) in total.

Tags: Sonoff MINI R4 Extreme - Wi-Fi Switch , SONOFF-MINIR4 , Wi-Fi

Specifications

General
Brand	Sonoff
Manufacturer model/SKU	MINIR4
Norm conformity	RoHS CE FCC
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	40
Features	Electric switch Enclosure
General physical appearance
Main color	White
Weight [g]	27
Dimension X [mm]	40
Dimension Y [mm]	33
Dimension Z [mm]	17
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V AC]	100
Maximum supply voltage [V AC]	240
Wireless communication
Interface(s)	Wi-Fi Bluetooth
Wi-Fi frequency [GHz]	2.4
Bluetooth version	4.2
Switch
Switching method	Electrical
Switch type	Mechanical relay
Number of channels/gangs	1
Contact(s)	NO (normally open)
Maximum switching voltage [V AC]	240
Switching voltage equal to supply voltage	Yes
Maximum switching current per channel (resistive load) [A]	10
Connectors
Power supply connector(s)	Screw terminal
IO-connector(s)	Screw terminal
Switch connector(s)	Screw terminal
Minimum wire thickness [mm²]	0.2
Maximum wire thickness [mm²]	2.08
Wi-Fi/Bluetooth antenna connector	Built-in antenna
Enclosure
Material	Polycarbonate (PC) V0
Package contents
Package contents	1x Sonoff MINI-R4 Extreme 1x Quick start guide
