Name: Sunshine Power Adapter with DC Jack 5.5-2.1mm - 12V 3A - XSG-1203000HEU
SKU: 006409
Price: 12 EUR
Availability: InStock

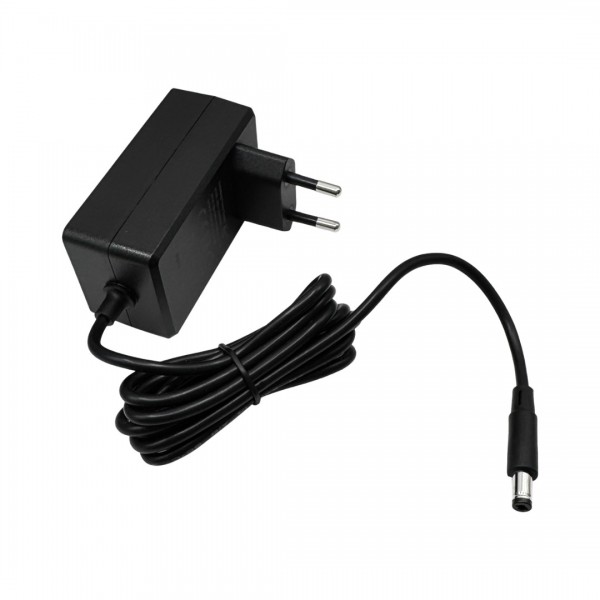

Sunshine Power Adapter with DC Jack 5.5-2.1mm - 12V 3A

Based on 0 review(s) - Write a review

€12.00

Ex Tax: €9.92

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

A standard power adapter to power your project.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Sunshine Power Adapter with DC Jack 5.5-2.1mm - 12V 3A , XSG-1203000HEU , 12V

General
Brand	Sunshine
Manufacturer model/SKU	XSG-1203000HEU (DC-Jack)
Norm conformity	RoHS CE
Minimum operating humidity [%R.H.]	10
Maximum operating humidity [%R.H.]	90
Minimum operating temperature [°C]	0
Maximum operating temperature [°C]	40
Features	Voltage converter Enclosure
General physical appearance
Main color	Black
Weight [g]	139
Dimension X [mm]	76
Dimension Y [mm]	44
Dimension Z [mm]	31
Voltage converter
Voltage converter type	Buck
Conversion	AC-DC
Isolated	Yes
Output voltage type	Fixed
Constant current function	No
Minimum input voltage [V AC]	100
Maximum input voltage [V AC]	240
Minimum output voltage [V DC]	12
Maximum output voltage [V DC]	12
Maximum input current [A]	0.8
Maximum output current [A]	3.0
Maximum output power [W]	36
Safety features	Short circuit Overcurrent (output)
Connectors
Input voltage connector(s)	Socket Type C male (CEE 7/16)
Output voltage connector(s)	DC-jack 5.5/2.1mm male
Wire/cable
Wire/cable length [m]	1.5
Enclosure
Material	Plastic (unknown material)
Package contents
Package contents	1x Power adapter
