Mini DC-DC 5V Step-up Boost Converter 480mA

Mini DC-DC 5V Step-up Boost Converter 480mA
Mini DC-DC 5V Step-up Boost Converter 480mA
Mini DC-DC 5V Step-up Boost Converter 480mA
Mini DC-DC 5V Step-up Boost Converter 480mA
Mini DC-DC 5V Step-up Boost Converter 480mA
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 001334
Based on 0 review(s) - Write a review
€2.00
Ex Tax: €1.65
10 or more €1.75
20 or more €1.50
50 or more €1.25
100 or more €1.00
Add to Cart
Add to wishlist

A small boost converter with output voltage of 5V.

Specifications:

  • Input voltage range: 0.9 - 5V
  • Output voltage: 5V (fixed)
  • Output current: 480 mA (max)
  • Efficiency: ~85%
  • Dimensions: 11 x 10.5 x 7.5 mm

The  maximum output voltage is dependent on the input voltage:

Input voltage(V) Output current(mA)
0.9 7
1-1.5 40 - 100
1.5 -2  100-150
2-3 150-380
>3 480

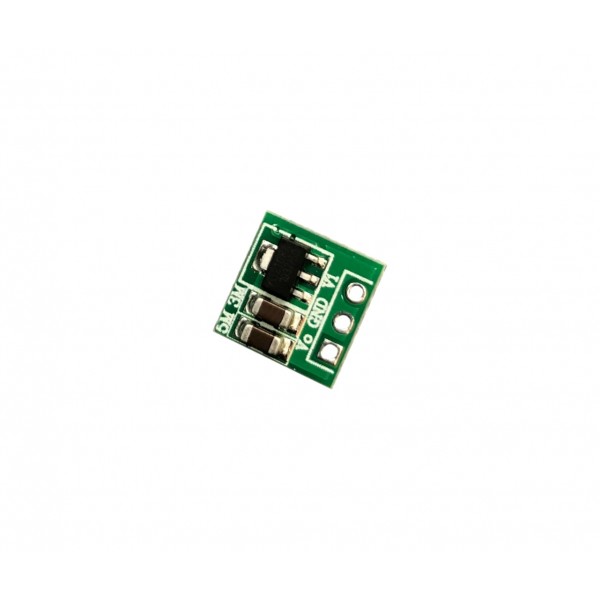

The pinout (Vi, GND, Vo) is indicated on the module:

  • Vi: Positive voltage input (paired with GND/min)
  • GND: ground/min
  • Vo: Positive voltage output (paired with GND/min)
