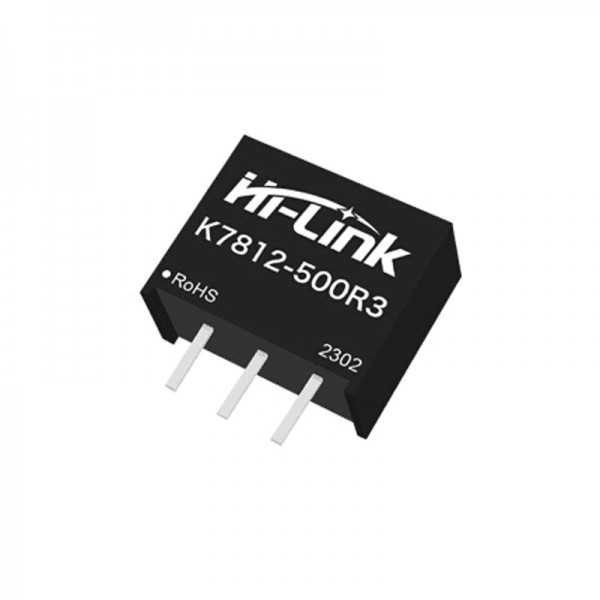

Name: Hi-Link DC-DC Voltage Converter - 12V 500mA - HLK-K7812-500R3 - HLK-K7812-500R3
SKU: 006553
Price: 3 EUR
Availability: InStock

Hi-Link DC-DC Voltage Converter - 12V 500mA - HLK-K7812-500R3

New

Hi-Link DC-DC Voltage Converter - 12V 500mA - HLK-K7812-500R3

Availability: Directly available from warehouse in Eindhoven
SKU: 006553

Based on 0 review(s) - Write a review

€3.00

Ex Tax: €2.48

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

A small DC-DC converter the size of and with the same pinout as an LM708x linear regulator. This converter can usually be used as a direct replacement. Compared to a linear regulator, this converter converts the voltage much more efficiently. To make the converter work properly, only a 10uF capacitor is needed on the input and a 22uF on the output. See the datasheet for an example circuit.

In addition to a positive voltage, this converter can also create a negative voltage, see the datasheet for more information about this.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Hi-Link DC-DC Voltage Converter - 12V 500mA - HLK-K7812-500R3

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006553_HLK-K78xx-500R3_Datasheet.pdf

Tags: Hi-Link DC-DC Voltage Converter - 12V 500mA - HLK-K7812-500R3 , HLK-K7812-500R3 , Buck (Step-Down) Converters

Specifications

General
Brand	Hi-Link
Manufacturer model/SKU	HLK-K7812-500R3
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Voltage converter
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	12
Dimension Y [mm]	10
Dimension Z [mm]	7.6
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes
Voltage converter
Voltage converter type	Buck
Conversion	DC-DC
Switching method	Non-synchronous
Isolated	No
Output voltage type	Fixed
Constant current function	No
Maximum switching frequency [kHz]	850
Minimum input voltage [V DC]	15
Maximum input voltage [V DC]	36
Minimum output voltage [V DC]	12
Maximum output voltage [V DC]	12
Maximum output current [A]	0.5
Maximum output power [W]	6
Maximum output ripple [mVp-p]	75 (max) 20 (typical)
Line regulation [%]	0.2
Load regulation [%]	0.3
Safety features	Short circuit
Connectors
Input voltage connector(s)	Solder pin(s) (THT)
Output voltage connector(s)	Solder pin(s) (THT)
Pin distance [mm]	2.54
Package contents
Package contents	1x DC-DC buck converter
