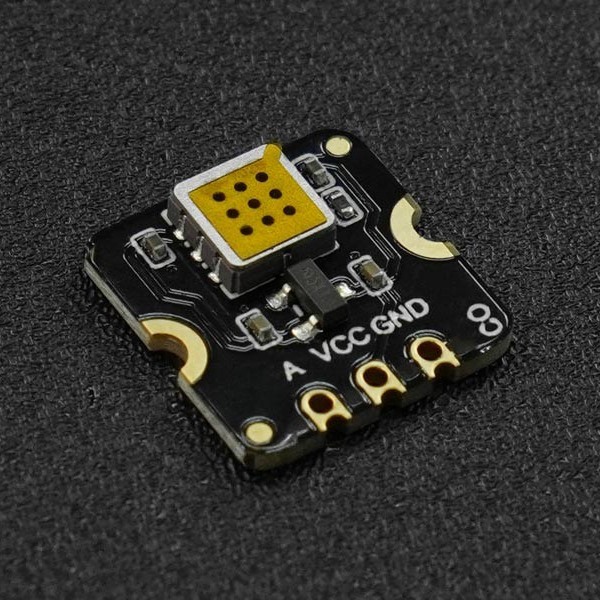

A gas sensor based on MEMS technology.

Note: When first using the sensor, it needs to stabilize for a few days to give stable readings (see datasheet for exact time). In addition, we recommend letting the sensor warm up for 5 minutes if the power has been (briefly) cut off to obtain stable readings.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Fermion MEMS Carbon Monoxide CO Detection Sensor

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005537_GM-702B-CO-datasheet.pdf

Tags: DFRobot Fermion MEMS Carbon Monoxide CO Detection Sensor , DFROBOT-SEN0564 , Gas

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	SEN0564
Minimum operating humidity [%R.H.]	15
Maximum operating humidity [%R.H.]	50
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	50
Features	Gas sensor
General physical appearance
Main color	Black
Weight [g]	1

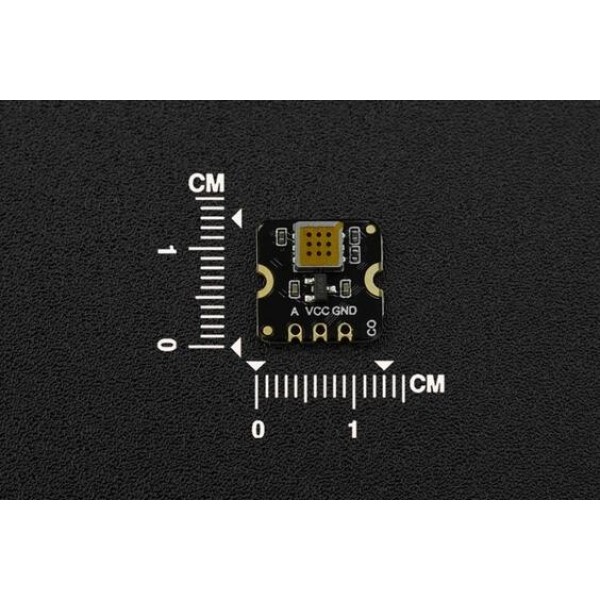

Dimension X [mm]	13
Dimension Y [mm]	13
Mounting options	SMT
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	Analog
Gassensor
Sensor (chip)	GM-702B
Measurable gasses	Carbon monoxide CO
Output type	Indicative
Minimum measuring range [ppm]	5
Maximum measuring range [ppm]	5000
Minimum pre-heat time [s]	300
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT)
IO-connector(s)	Through hole solder pin(s) (2.54mm) Solder pin(s) (SMT)
Package contents

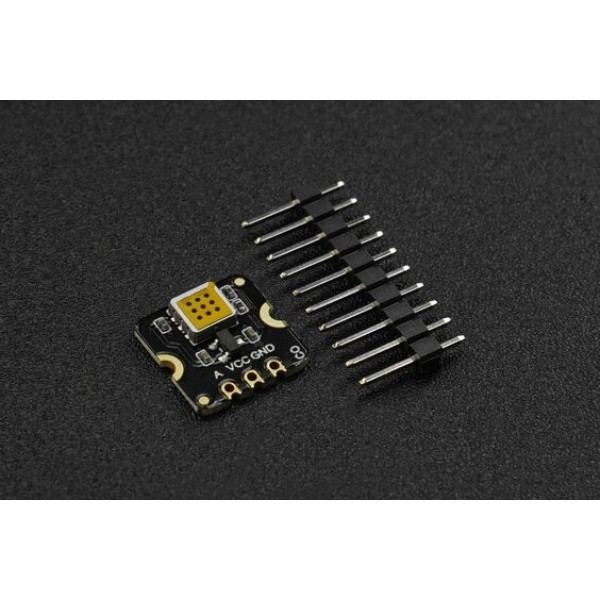

Package contents	1x Gas sensor 1x Male pin header 3p
