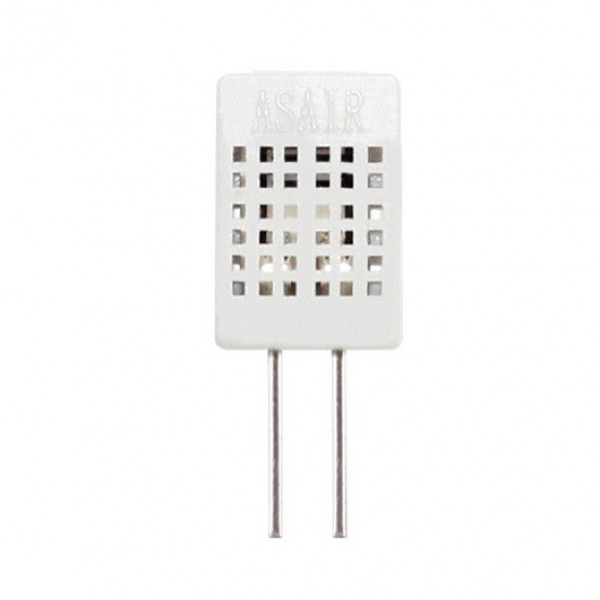

ASAIR HR202L Humidity Sensitive Resistor

A humidity-sensitive resistor for measuring humidity.

Specifications:

• Maximum voltage: 1.5V AC
• Maximum power: 0.2mW
• Operating frequency: 500Hz ~ 2kHz (1kHz recommended)
• Measuring range: 20 - 95% RH
• Accuracy: ±5% RH
• Working temperature: 0 - 60°C
• Dimensions: 11 x 7.3 x 3.5mm (without pins)

Package contents:

• 1x HR202L Humidity Sensor - Humidity Sensitive Resistor

Note: This sensor must be supplied with an AC voltage.

Check the tab "Downloads" for more information and/or downloads.
