Name: AC Current Sensor SCT013-010 - 10A - 0-1V - SCT013-010
SKU: 005965
Price: 7 EUR
Availability: InStock

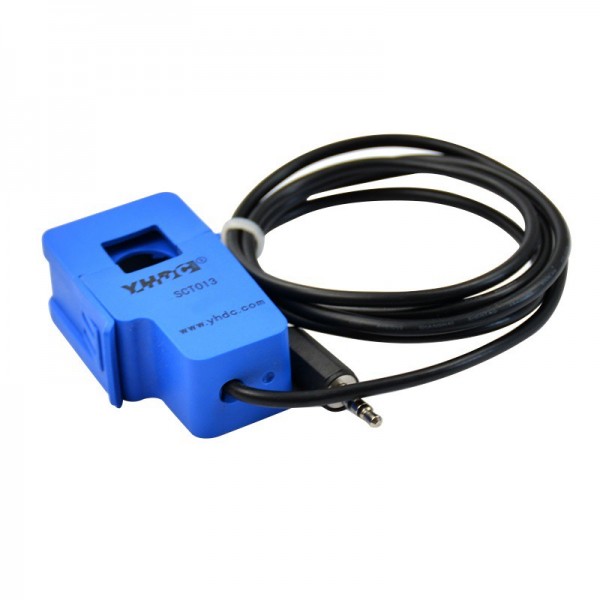

AC Current Sensor SCT013-010 - 10A - 0-1V

Based on 0 review(s) - Write a review

€7.00

Ex Tax: €5.79

10 or more €6.50

20 or more €6.00

50 or more €5.50

100 or more €5.00

200 or more €4.75

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Current clamp for AC voltage .

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: AC Current Sensor SCT013-010 - 10A - 0-1V , SCT013-010 , Current-Voltage

General
Brand	YHDC
Manufacturer model/SKU	SCT013-010
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	60
Features	Current sensor Enclosure
General physical appearance
Main color	Blue
Weight [g]	61
Dimension X [mm]	57
Dimension Y [mm]	32
Dimension Z [mm]	21
Form factor	Module (general)
General electrical properties
IO-pin output voltage [V]	1 (@10A)
Communication
Hardware interface(s)	Analog
Current sensor
Number of channels	1
Suitable current	AC
Measuring method	Current clamp
Sensitivity [mV/A]	100
Maximum voltage between GND and measuring pins [V]	660
Minimum measuring range [A]	0.0
Maximum measuring range [A]	10
Accuracy [±%]	1.0
Connectors
Power supply connector(s)	Audio jack 3.5mm male (TRS)
IO-connector(s)	Audio jack 3.5mm male (TRS)
Wire/cable
Shielding	Yes
Outside diameter [mm]	3
Wire/cable length [m]	1
Package contents
Package contents	1x SC013-010
