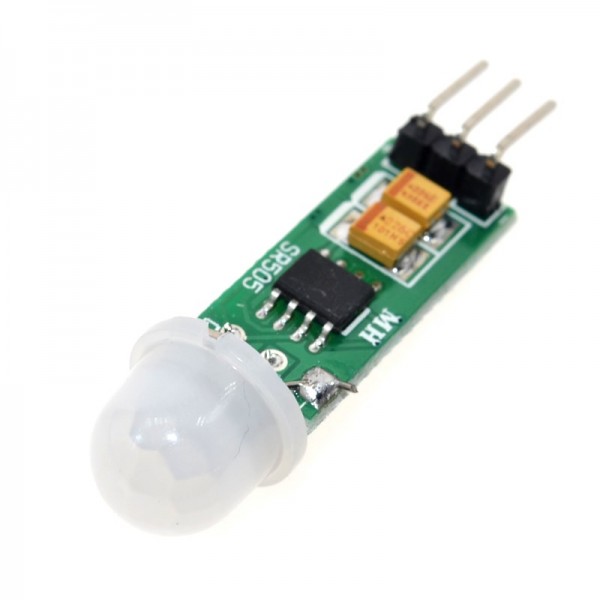

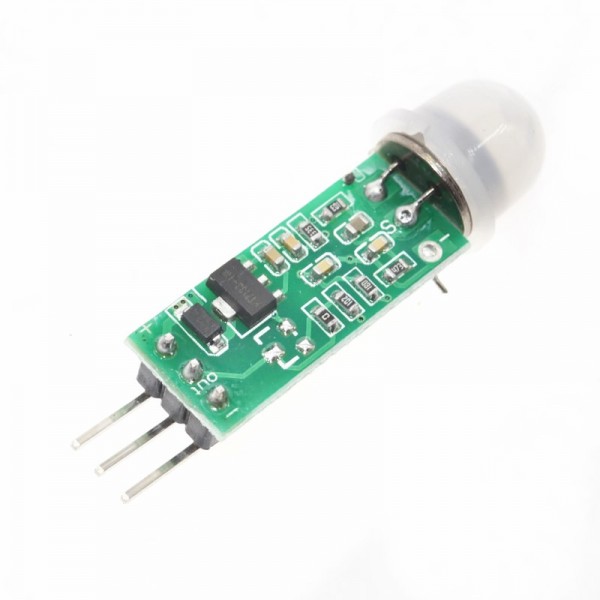

IR Pyroelectric Infrared PIR Motion Sensor Detector Module - Compact

This motion sensor is a more compact version of the standard PIR sensor that we sell. This type of sensor can be used to detect movement by means of infrared light.

• Input Voltage: DC 4.5-20V
• Quiescent current: <60uA
• Level output: High 3.3 V/Low 0V
• Delay time: about 8 seconds (± 30% deviation)
• Standard detection at approximately 3 meters distance
• Dimensions: 10mm*23mm
• Angle of Sensor: <100 °
• Working temperature: -20°C - +80°C
• Lens size: 10mm (diameter)

Pins:

• Vcc (indicated with "+")
• Output (middle pin)
• GND/ground/min  (indicated with "-")
