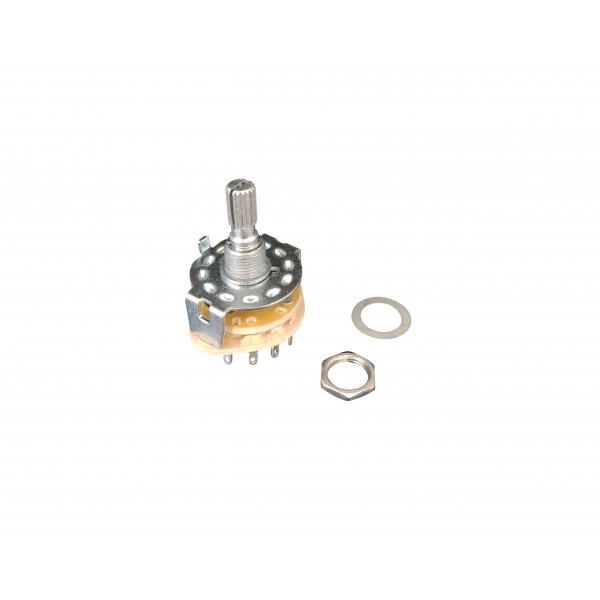

Rotary Switch - 2x6 Positions - with Eye Pins

Rotary Switch - 2x6 Positions - with Eye Pins
Rotary Switch - 2x6 Positions - with Eye Pins
Rotary Switch - 2x6 Positions - with Eye Pins
Rotary Switch - 2x6 Positions - with Eye Pins
Rotary Switch - 2x6 Positions - with Eye Pins
Rotary Switch - 2x6 Positions - with Eye Pins
Rotary Switch - 2x6 Positions - with Eye Pins
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003512
€1.50
Ex Tax: €1.24

A standard rotary switch with holes in the pins

Please login or register to review

Reviews Over Rotary Switch - 2x6 Positions - with Eye Pins

This product has 0 review(s) in total.

Specifications

General
Brand No brand
General physical appearance
Main color Gray/silver
Weight [g] 7

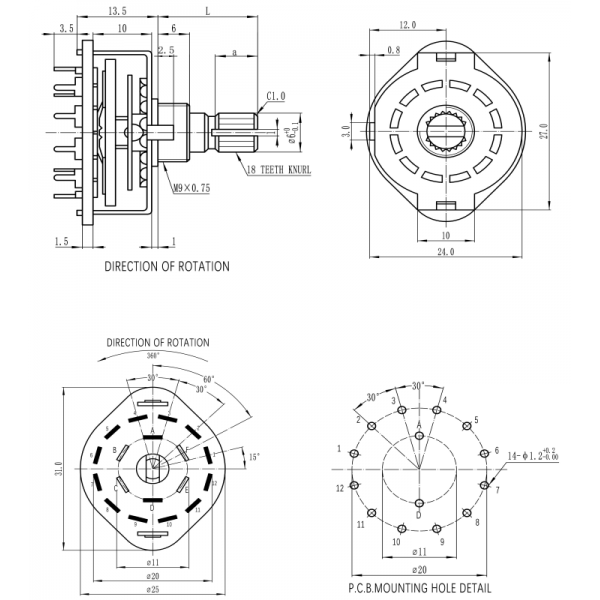

Dimension X [mm] 33
Dimension Y [mm] 31
Dimension Z [mm] 25
Mounting options Screw thread
THT
Maximum mounting thickness [mm] 4.5
Recommended mounting dimensions [mm] ø9
Thread size M9x0.75
Thread length [mm] 6.0
Form factor Individual component
Knob fitting Spline 18T Ø6.0
Experiment PCB friendly No
Switch
Switching method Physical (current/power switch)
Switch type Rotary
Number of channels/gangs 1

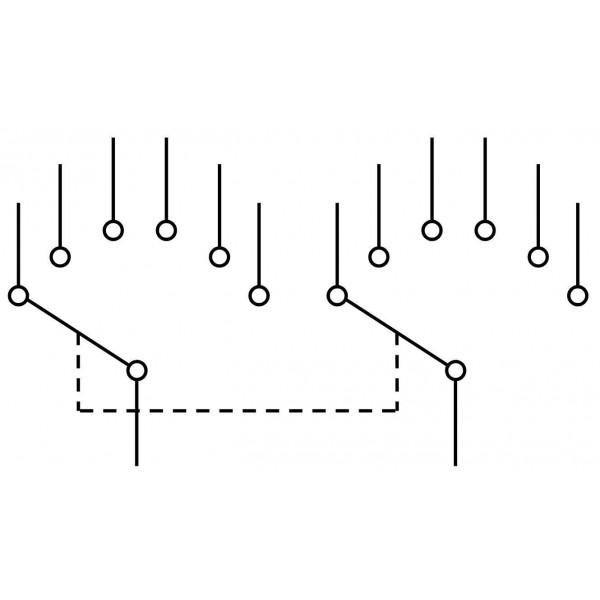

Number of poles per channel 2
Number of fixed (on-off) positions per channel 6
Number of spring-back (reset) positions per channel 0
Contact(s) NC (normally closed)
NO (normally open)
Lifespan 10000
Maximum switching voltage [V DC] 30
Maximum switching current per channel (resistive load) [A] 0.3
Connectors
Switch connector(s) Wire solder pin(s)/pad(s)
Package contents
Package contents 1x Nut
1x Rotary Switch
1x Washer

If you have a question or problem regarding a product, please contact us by using one of the buttons below.
