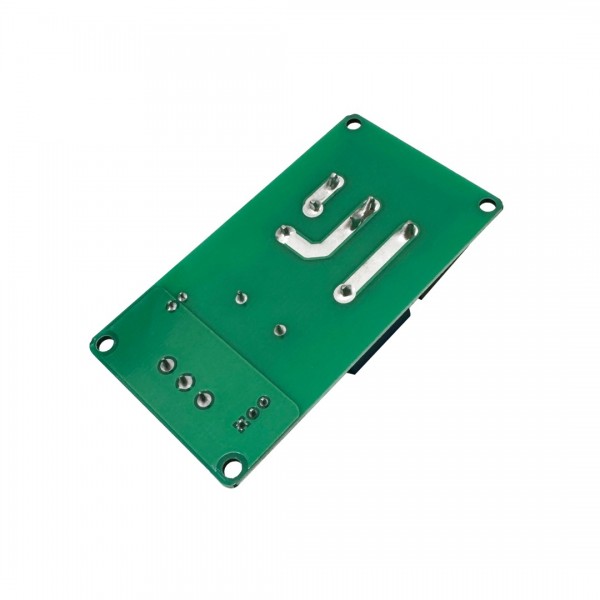

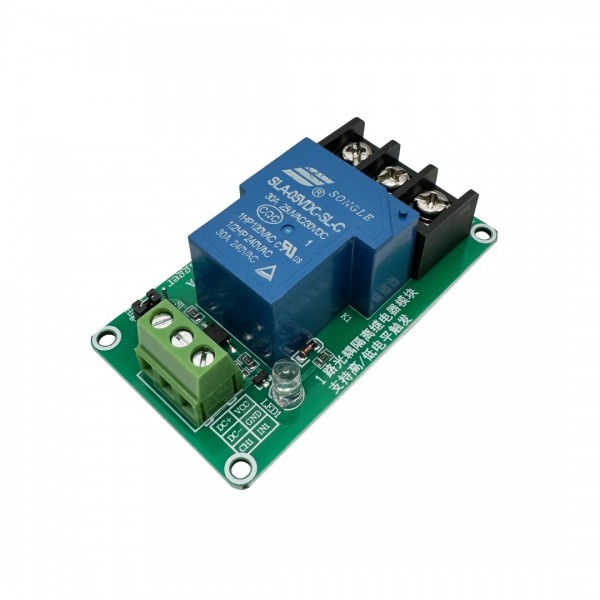

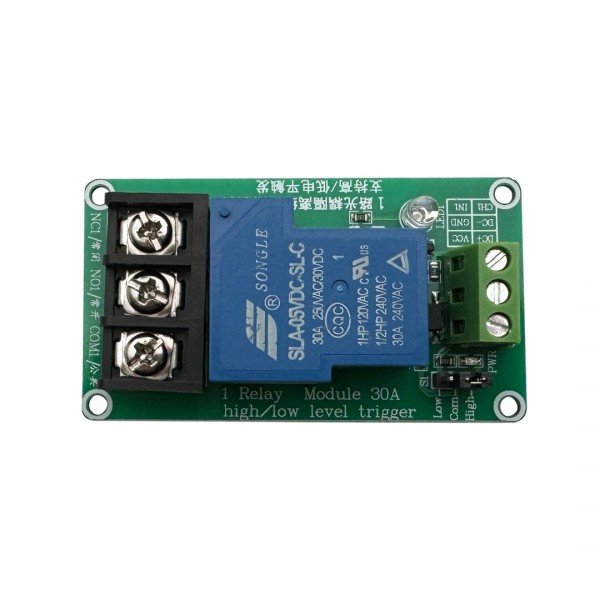

5V Relay Module - 1 Channel High-active or Low-active - 30A

Based on 0 review(s) - Write a review

€6.00

Ex Tax: €4.96

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

An easy to use relay module with 1 channel. Each channel can be set to either high- or low-active.

Note: In the low-active setting there is ~5V on the signal pin, which makes it often not suitable for 3.3V microcontrollers.

Please login or register to review

This product has 0 review(s) in total.

Tags: 5V Relay Module - 1 Channel High-active or Low-active - 30A , 5VREL1HL-30A , Relay Modules

General
Brand	No brand
Features	Electric switch
General physical appearance
Main color	Green
Weight [g]	48
Dimension X [mm]	72
Dimension Y [mm]	40
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.1
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
Maximum IO-pin source current [mA]	9 (low active)
Maximum IO-pin sink current [mA]	9 (high active)
Communication
Hardware interface(s)	Digital (low-active) Digital (high-active) (adjustable with jumper)
Switch
Switching method	Electrical
Switch type	Mechanical relay
Number of channels/gangs	1
Contact(s)	NC (normally closed) NO (normally open)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	30
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	30 (NO) 20 (NC)
Current per engaged relay [mA]	205
Connectors
Power supply connector(s)	Screw terminal
IO-connector(s)	Screw terminal
Switch connector(s)	Screw clamp terminal
Package contents
Package contents	1x Relay module 1x Jumper 2p
