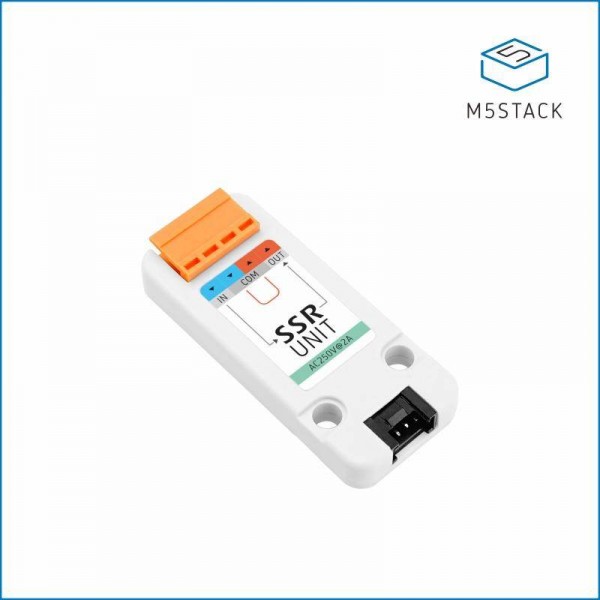

M5Stack SSR Unit - Solid State Relay - 1 Channel - 2A

This is a solid state relay (SSR) Unit from M5Stack. An SSR works the same as a standard (mechanical) relay. However, an SSR can be turned on and off much more often because it does not experience mechanical wear. Another important difference is that this relay can only switch alternating current.

Specifications:

• Signal voltage: 3.3 - 5V
• Signal current (with 5V): ~5mA
• Relay:
  • Maximum switching voltage: 250V AC*
  • Maximum switching current: 2A
  • Number of channels: 1
  • Control: High-active (relay switches on at a high signal voltage and off at a low signal voltage)
• 2x LEGO^® compatible holes
• Connector: Grove
• Operating temperature: -10 - 80°C
• Dimensions: 54 x 54 x 16mm

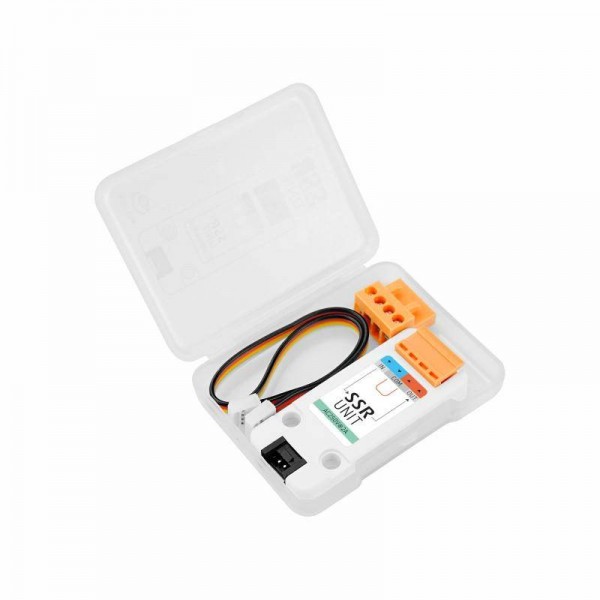

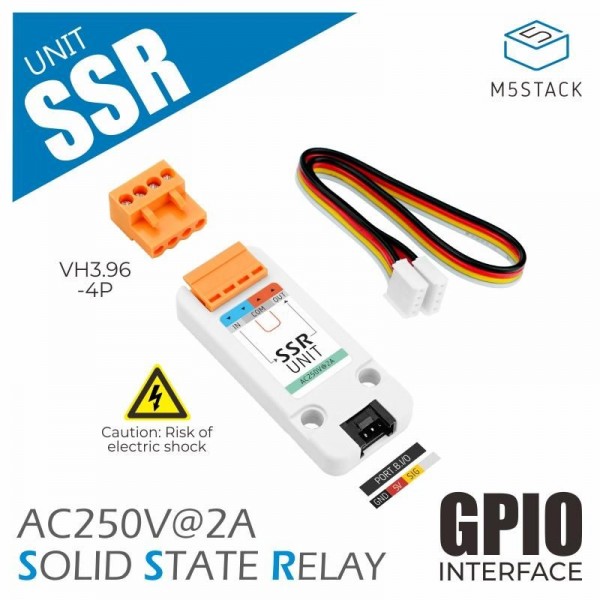

Package contents:

• 1x M5Stack SSR Unit
• 1x Grove cable
• 1x HT3.96-4p terminal

See the following page for more information: M5Stack SSR Unit.

*Note: This solid state relay is only suitable for AC.
