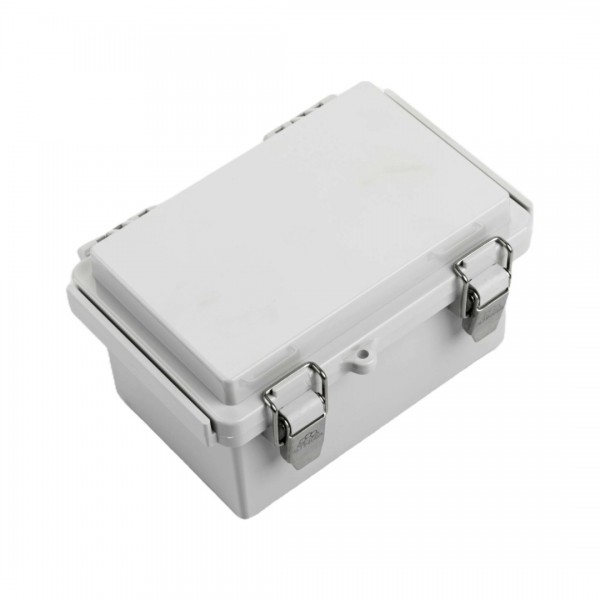

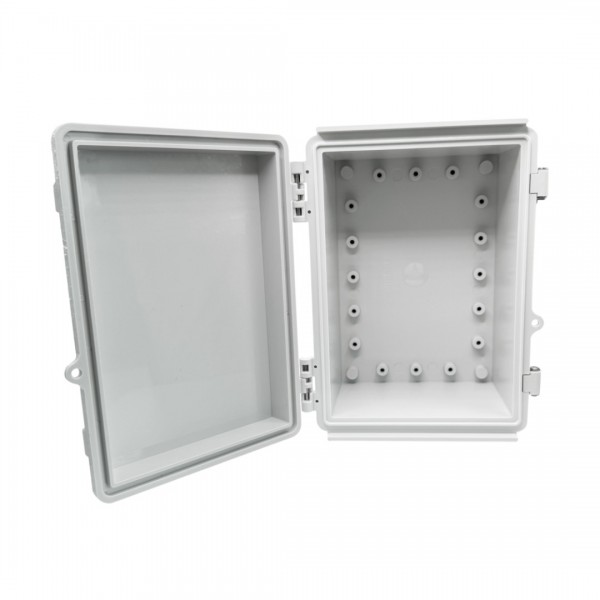

Altinkaya Hinged Enclosure 180x130x100mm - IP67 - Gray- ABS

Altinkaya Hinged Enclosure 180x130x100mm - IP67 - Gray- ABS
Altinkaya Hinged Enclosure 180x130x100mm - IP67 - Gray- ABS
Altinkaya Hinged Enclosure 180x130x100mm - IP67 - Gray- ABS
Altinkaya Hinged Enclosure 180x130x100mm - IP67 - Gray- ABS
Altinkaya Hinged Enclosure 180x130x100mm - IP67 - Gray- ABS
Altinkaya Hinged Enclosure 180x130x100mm - IP67 - Gray- ABS
Altinkaya Hinged Enclosure 180x130x100mm - IP67 - Gray- ABS
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006248
€12.50
Ex Tax: €10.33

A high quality universal enclosure to neatly build in your project. This variant a separate gasket with which the contents can be well protected against water and dust.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Altinkaya Hinged Enclosure 180x130x100mm - IP67 - Gray- ABS

This product has 0 review(s) in total.

Mechanical design (dimensions): 006248_EC-1318_drawing.pdf

3D model: 006248_EC-1318_3D.zip

Specifications

General
Brand Altinkaya
Manufacturer model/SKU EC-1318-0-0-G-A
Minimum operating temperature [°C] -30
Maximum operating temperature [°C] 70
Features Enclosure
General physical appearance
Main color Gray/silver
Weight [g] 400
Dimension X [mm] 192
(see downloads tab)
Dimension Y [mm] 134
(see downloads tab)
Dimension Z [mm] 100
(see downloads tab)
Water and dust protection IP67
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 4.3
Form factor Enclosure universal
Enclosure
Lid/front-cover color Gray
Material ABS
Lid/front-cover assembly Hinge
Gasket Separate

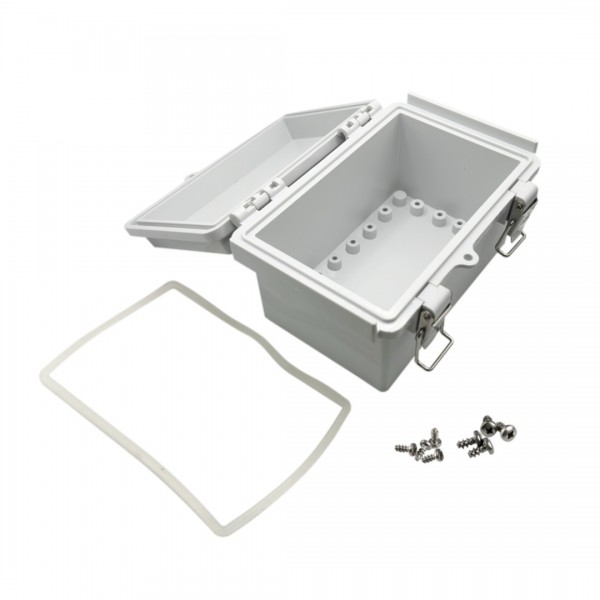

Package contents
Package contents 1x Enclosure
1x Gasket
4x Mounting screw small
4x Mounting screw large
